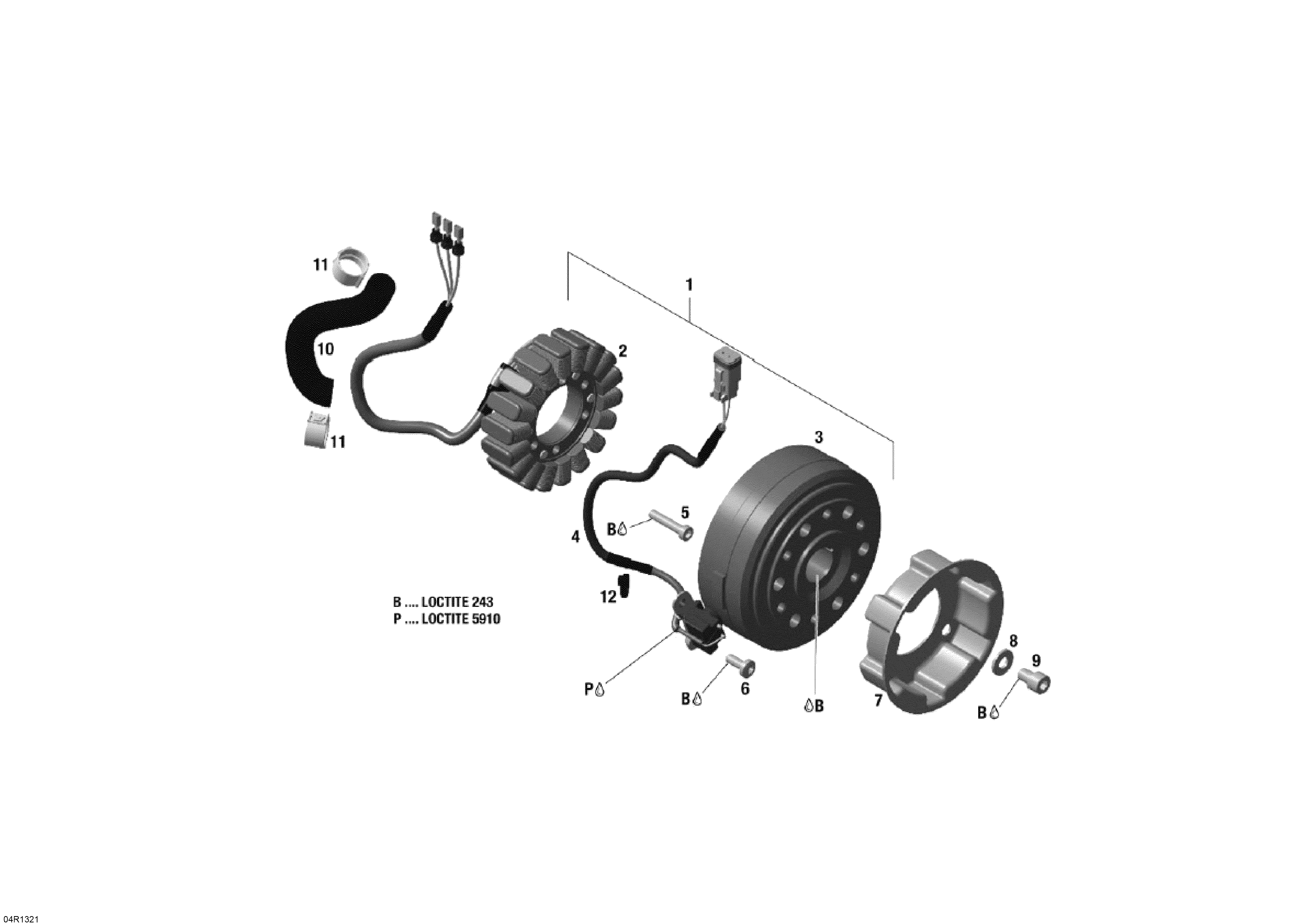

03- Magneto для BRP Lynx Rave RS 600 - 2013
-
№АртикулНазвание
-
2420893060 Stator Ass'y, 12V 360WStator Ass'y, 12V 360W
-
3420665725 FlywheelFlywheel
-
4420866370 Pick-UpPick-Up
-
5420840886 Socket Head Screw M6 X 30Socket Head Screw M6 X 30
-
6420640324 Hex. Taptite Screw M6 X 16Hex. Taptite Screw M6 X 16
-
7420852590 Starting PulleyStarting Pulley
-
8420827405 Flat WasherFlat Washer
-
9420841520 Socket Head Screw M8 X 12Socket Head Screw M8 X 12
-
10420460871 TubeTube
-
11420960896 Conduit ClipConduit Clip
-
12420866714 Tie RapTie Rap
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
P293800081 Loctite 5910, 300 mlLoctite 5910, 300 ml
