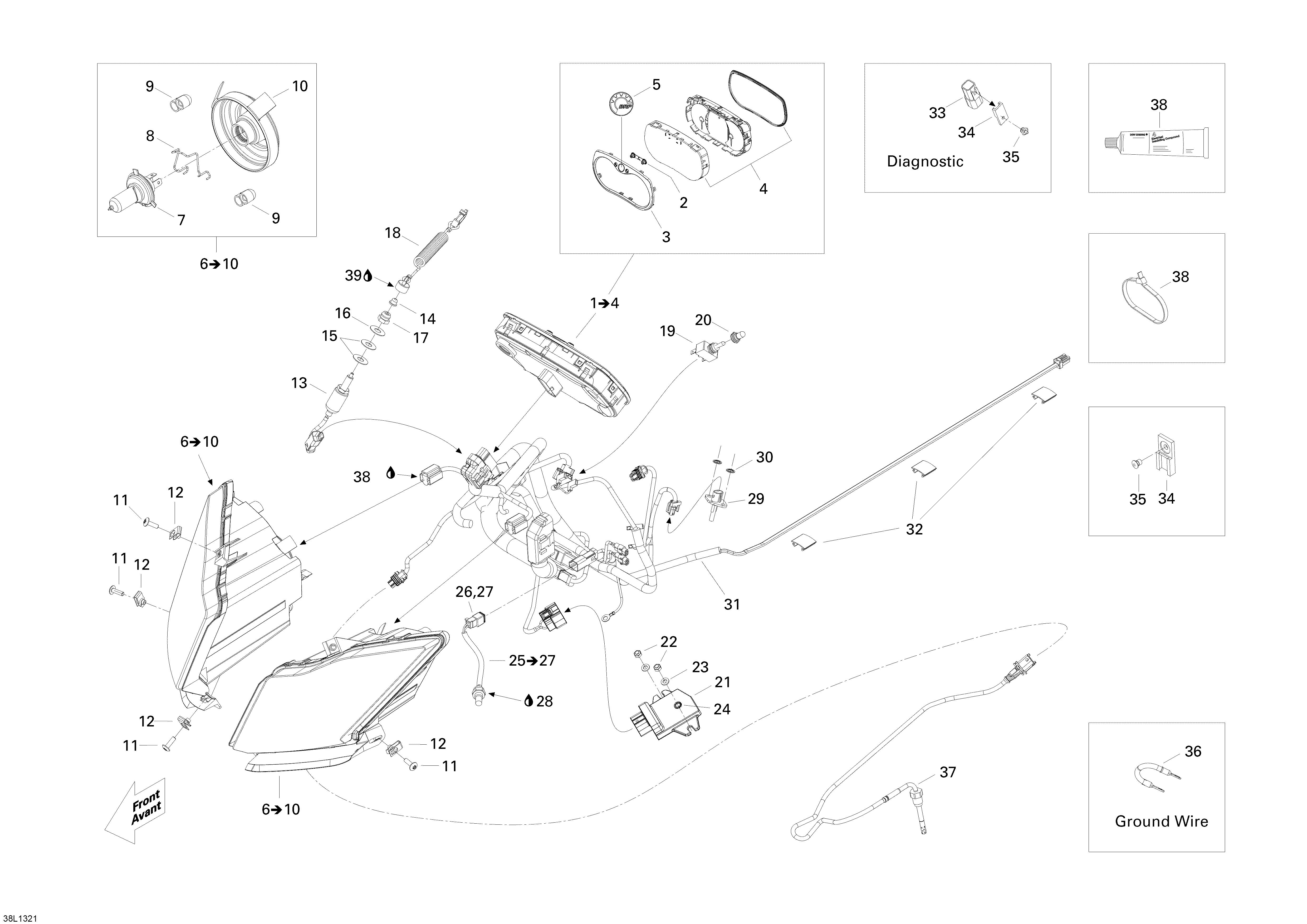

10- Electrical System для BRP Lynx Rave RS 600 - 2013
-
№АртикулНазвание
-
1515177468 Speedometer. Includes 1 to 4Speedometer. Includes 1 to 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Ring GaugeRing Gauge
-
4415129349 Lens And SealLens And Seal
-
5219902677 Logo, BRP 20 mmLogo, BRP 20 mm
-
6517304194 RH Headlamp. Includes 6 to 10RH Headlamp. Includes 6 to 10
-
6517304195 LH Headlamp. Includes 6 to 10LH Headlamp. Includes 6 to 10
-
7515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
9515176498 CapCap
-
10515176499 CoverCover
-
11250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
12250100113 Pannel Nut M6 X 1.0Pannel Nut M6 X 1.0
-
13515175653 Emergy switchEmergy switch
-
14570151100 Plunger CapPlunger Cap
-
15250200032 WasherWasher
-
16510004418 WasherWasher
-
17515145900 Switch NutSwitch Nut
-
18515176462 Cap Ass'yCap Ass'y
-
19410107300 Heated Grip SwitchHeated Grip Switch
-
20515175281 Switch CoverSwitch Cover
-
21515176364 Voltage RegulatorVoltage Regulator
-
22233261414 Elastic Stop Nut M6Elastic Stop Nut M6
-
23234061410 Flat Washer 6 mmFlat Washer 6 mm
-
24234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
25515177471 Temperature Sensor. Includes 25 to 27Temperature Sensor. Includes 25 to 27
-
26515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
27278000632 Female TerminalFemale Terminal
-
28293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
29515176366 Temperature Air SensorTemperature Air Sensor
-
30389804300 Push NutPush Nut
-
31515177111 Wiring HarnessWiring Harness
-
33515176234 Diagnostic Connector CapDiagnostic Connector Cap
-
34515175917 ClipClip
-
35293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
36515177289 Ground WireGround Wire
-
37514054856 Temperature SensorTemperature Sensor
-
38293550004 Dielectric Grease, 150 GDielectric Grease, 150 G
