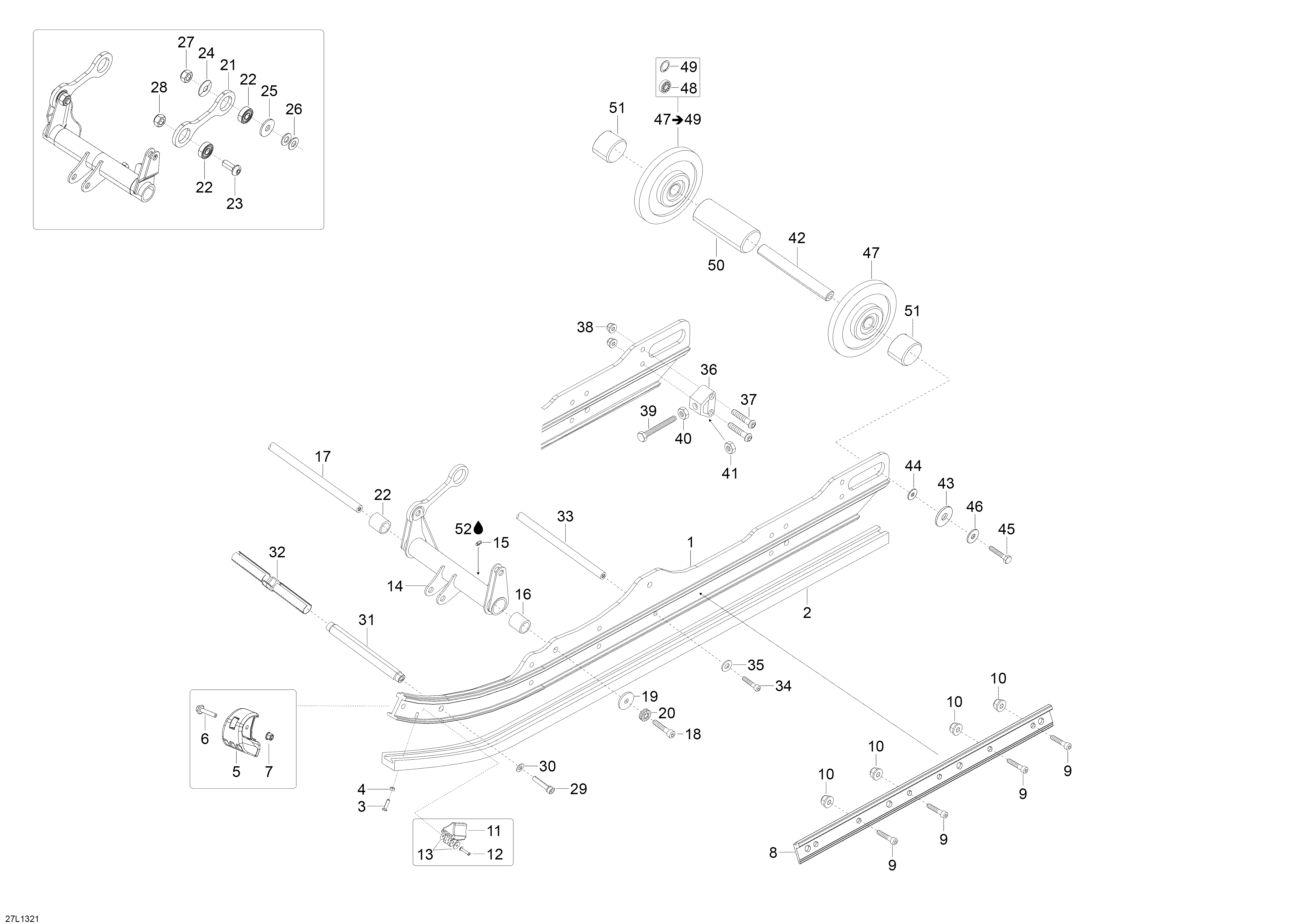

08- Rear Suspension для BRP Lynx Rave RS 600 - 2013
-
№АртикулНазвание
-
1503192020 RunnerRunner
-
2503192618 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192299 ProtectorProtector
-
6207652544 Hex. Flanged Screw M5 x 25Hex. Flanged Screw M5 x 25
-
7233251434 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
8503192891 Rail ReinforcementRail Reinforcement
-
9205082544 Socket HD. Screw M8 x 25Socket HD. Screw M8 x 25
-
10232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
11503192106 Rubber StopperRubber Stopper
-
12293150142 Pop Rivet 3/16Pop Rivet 3/16
-
13503191273 WasherWasher
-
14503192518 Swing WeldSwing Weld
-
15408200700 Grease FittingGrease Fitting
-
1631024 CushionCushion
-
17503192880 ShaftShaft
-
18205505547 Screw M10 x 55Screw M10 x 55
-
19512056700 Lock WasherLock Washer
-
2020068 Lock WasherLock Washer
-
21605254159 Connecting RodConnecting Rod
-
22605631003 Ball BearingBall Bearing
-
23205402546 Socket Head Screw M10 x 25Socket Head Screw M10 x 25
-
2425004 Spring CupSpring Cup
-
25234002600 Washer M10Washer M10
-
26234001410 Washer M10Washer M10
-
27233401414 Lock Spring M10Lock Spring M10
-
28232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
29205505044 Socket Head Screw M10 x 50Socket Head Screw M10 x 50
-
30234001410 Washer M10Washer M10
-
31605353958 ShaftShaft
-
32605355096 LimiterLimiter
-
335343471 ShaftShaft
-
34205505547 Socket HD. Screw M10 x 55Socket HD. Screw M10 x 55
-
35234001410 Flat Washer M10Flat Washer M10
-
365341633 Tensioner HousingTensioner Housing
-
37205484546 Socket Head Screw M8 x 45Socket Head Screw M8 x 45
-
38233281414 Nut M8Nut M8
-
39230100044 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
40232006414 Nut M10Nut M10
-
41232500416 Nut M10Nut M10
-
42503192734 AxleAxle
-
43503192735 WasherWasher
-
44234001410 Flat Washer M10Flat Washer M10
-
45207303544 Hex. Screw M10 x 35Hex. Screw M10 x 35
-
46503183300 WasherWasher
-
47503189568 Wheel 165mm. Includes 47 To 49Wheel 165mm. Includes 47 To 49
-
48293350055 Ball BearingBall Bearing
-
505448027 SpacerSpacer
-
515441512 SpacerSpacer
