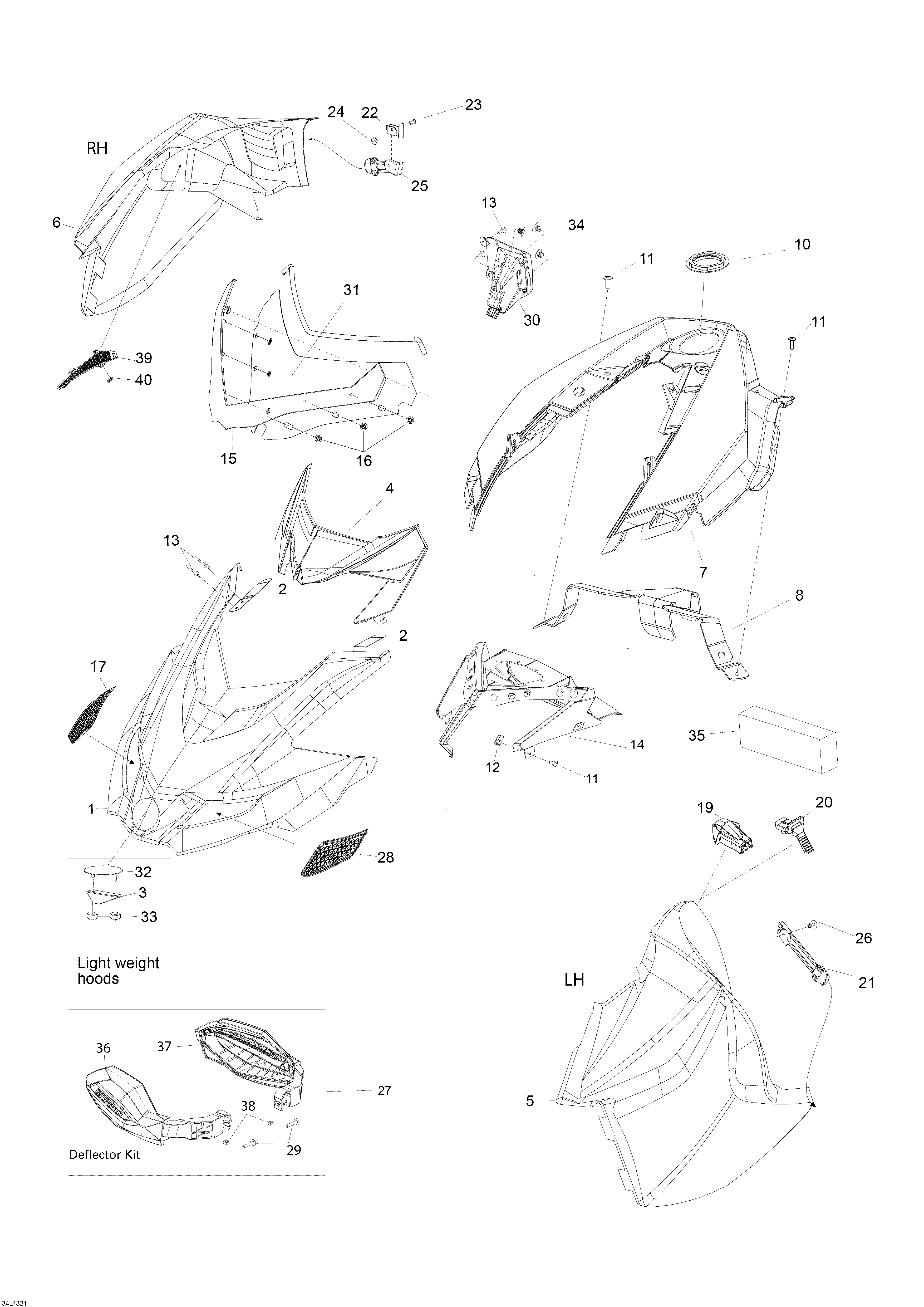

09- Hood для BRP Lynx Rave RS 600 - 2013
-
№АртикулНазвание
-
1517303962 Hood/console BlackHood/console Black
-
2517304152 Rear fastening plate (Opt.). Only for light weight hoodsRear fastening plate (Opt.). Only for light weight hoods
-
3517304153 Front fastening plate (Opt.). Only for light weight hoodsFront fastening plate (Opt.). Only for light weight hoods
-
4517303979 Headlamp coverHeadlamp cover
-
5517304990 L.H.Side panel BlackL.H.Side panel Black
-
6517304981 R.H.Side panel BlackR.H.Side panel Black
-
7517304129 Console WhiteConsole White
-
8517305363 Console support blackConsole support black
-
936037 Rivet black 4.8x16Rivet black 4.8x16
-
10517304518 Nut consoleNut console
-
11250000128 Torx trussTorx truss
-
12250100113 Extruded panel nutExtruded panel nut
-
13293150170 Rivet pop 5/32Rivet pop 5/32
-
14517304699 Indicator supportIndicator support
-
15860200089 Support kitSupport kit
-
16517303756 GrommetGrommet
-
17517304141 Grill RHGrill RH
-
18517302785 ClipClip
-
19860200239 End piece kit, incl. 19-20End piece kit, incl. 19-20
-
21517303612 Latch panelLatch panel
-
22517304221 Latch supportLatch support
-
23207652044 Screw M5x20Screw M5x20
-
24233251414 Nut flange elastic M5Nut flange elastic M5
-
25517303808 Latch panelLatch panel
-
26293150108 Rivet pop 3/16Rivet pop 3/16
-
27517305053 Deflector packDeflector pack
-
28517304008 Grill LHGrill LH
-
29250000501 Truss screw M6 x 35Truss screw M6 x 35
-
30517304322 Console rewind handleConsole rewind handle
-
31517304293 Wind shieldWind shield
-
32605455262 Logo spacer. Only for light weight hoodsLogo spacer. Only for light weight hoods
-
33233261414 Nut console. Only for light weight hoodsNut console. Only for light weight hoods
-
34275500241 Cap plugCap plug
-
35517304186 Support foam air intake silencerSupport foam air intake silencer
-
38250000498 Square nut M6Square nut M6
-
39517304007 GrillGrill
-
40517302785 Clip U-TypeClip U-Type
