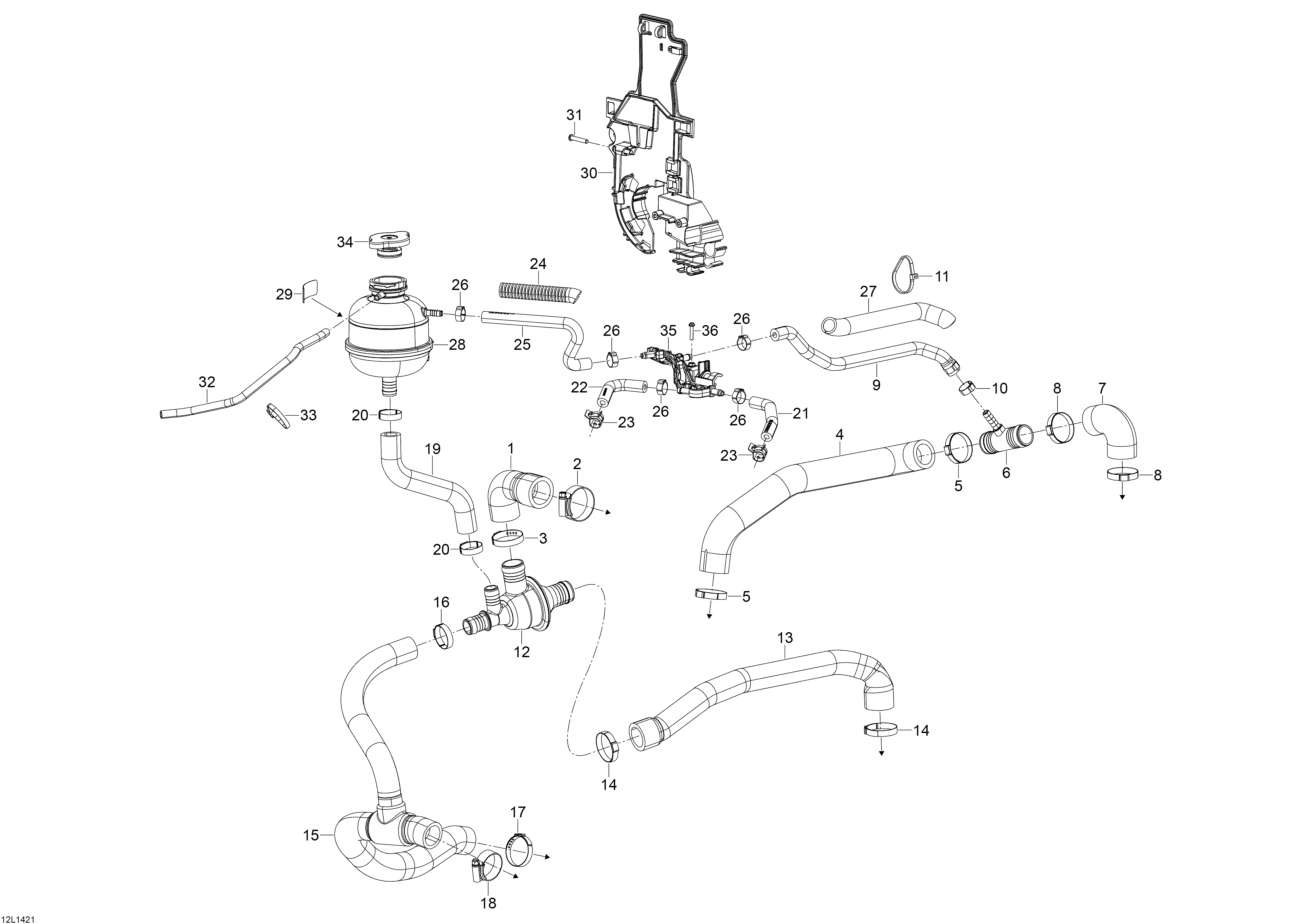

01- Cooling System для BRP Lynx BoonDocker 800R E-TEC - 2014
-
№АртикулНазвание
-
1509000678 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Gear ClampGear Clamp
-
3509000529 Crimp ClampCrimp Clamp
-
4509000670 Radiator HoseRadiator Hose
-
5509000529 Crimp ClampCrimp Clamp
-
6509000510 T-FittingT-Fitting
-
7509000671 Radiator HoseRadiator Hose
-
8509000529 Crimp ClampCrimp Clamp
-
9509000906 Breather HoseBreather Hose
-
10293650047 Crimp ClampCrimp Clamp
-
11414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
12509000499 Thermostat HousingThermostat Housing
-
13509000679 Thermostat Outlet HoseThermostat Outlet Hose
-
14509000529 Crimp ClampCrimp Clamp
-
15509000822 HoseHose
-
16293650099 Crimp ClampCrimp Clamp
-
17509000443 Gear ClampGear Clamp
-
18509000443 Gear ClampGear Clamp
-
19509000812 Filling HoseFilling Hose
-
20509000442 Gear ClampGear Clamp
-
21509000818 HoseHose
-
22509000819 HoseHose
-
23293650170 Tridon Gear ClampTridon Gear Clamp
-
24409901800 Protector TubeProtector Tube
-
25509000817 HoseHose
-
26293650046 Crimp ClampCrimp Clamp
-
27415080000 Protector TubeProtector Tube
-
28509000802 Coolant TankCoolant Tank
-
29516005904 DecalDecal
-
30509000908 Tank SupportTank Support
-
31241152540 Hex. Flange Screw K50 x 25Hex. Flange Screw K50 x 25
-
32276000048 HoseHose
-
33414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
34509000180 Pressure CapPressure Cap
-
35509000803 CollectorCollector
-
36241152540 Hex. Flange Screw K50 x 25Hex. Flange Screw K50 x 25
