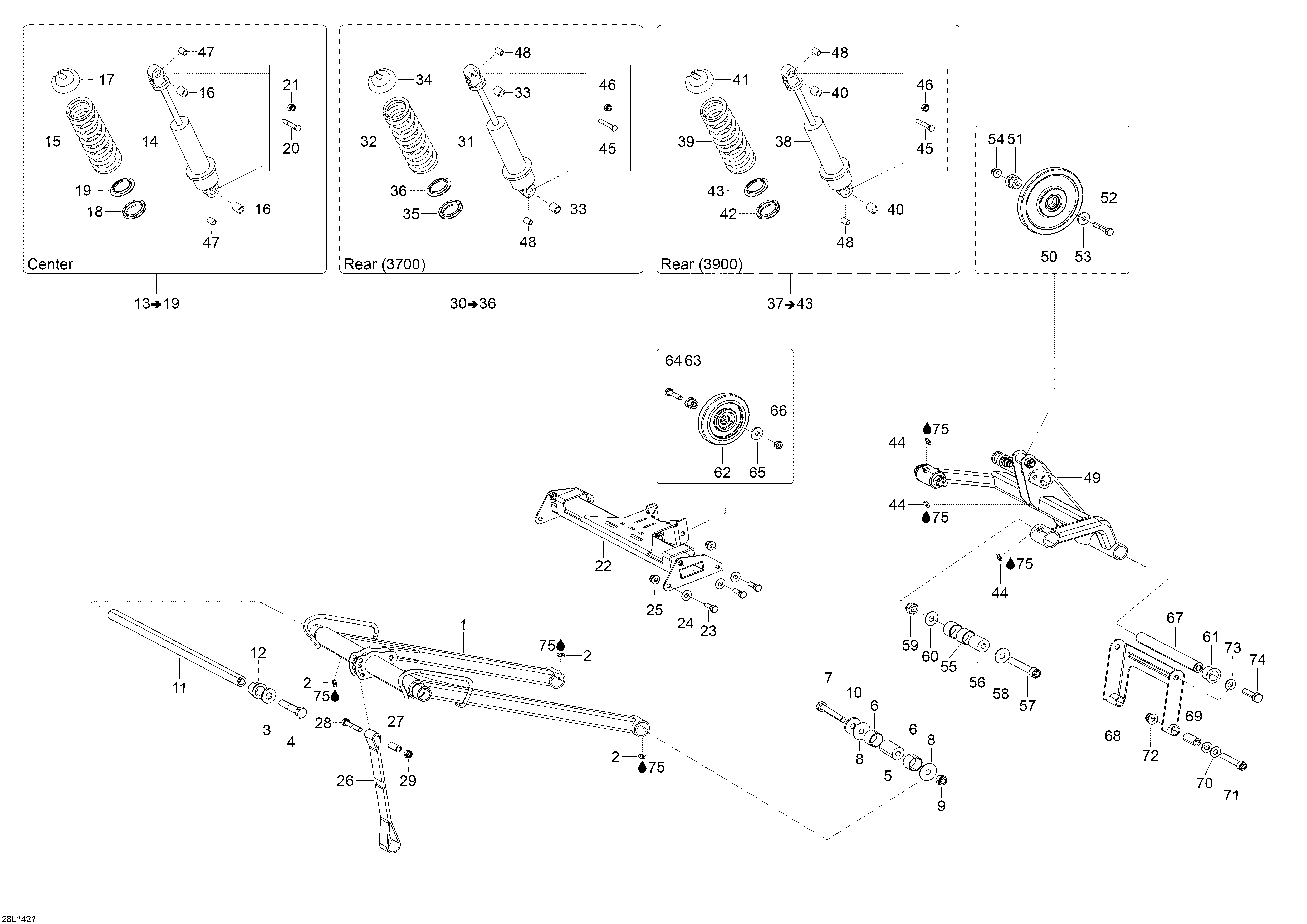

08- Rear Suspension для BRP Lynx BoonDocker 800R E-TEC - 2014
-
№АртикулНазвание
-
1503192557 Front ArmFront Arm
-
2408200700 Grease FittingGrease Fitting
-
3250200131 Washer Spring ConicalWasher Spring Conical
-
4250000555 Hex. Cap Screw M12 x 60Hex. Cap Screw M12 x 60
-
5605354157 ShaftShaft
-
6503193700 BushingBushing
-
7207007044 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
8605355801 WasherWasher
-
9232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
10503183300 WasherWasher
-
11503192046 ShaftShaft
-
1231024 CushionCushion
-
14503193287 Shock, Front ArmShock, Front Arm
-
15605625010 Spring, Front ArmSpring, Front Arm
-
1631094 Glide BearingGlide Bearing
-
17230076 Spring StopperSpring Stopper
-
18230053 NutNut
-
19414888316 Spring GuideSpring Guide
-
20207004544 Hex. Screw M10 x 45Hex. Screw M10 x 45
-
21232500416 Nut Stop ElasticNut Stop Elastic
-
22503192566 Middle BeamMiddle Beam
-
23250000556 Hex. Cap Screw M8 x 25Hex. Cap Screw M8 x 25
-
24503193095 WasherWasher
-
25233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
26605355116 Limiter StrapLimiter Strap
-
27605455335 SleeveSleeve
-
28207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
29232581414 Nut Stop Elastic M8Nut Stop Elastic M8
-
31503193041 Shock, Rear ArmShock, Rear Arm
-
32503193849 Spring, Rear ArmSpring, Rear Arm
-
3331094 Glide BearingGlide Bearing
-
34605354631 Spring LockSpring Lock
-
35230048 NutNut
-
36230049 Spring GuideSpring Guide
-
38503193523 Shock, Rear ArmShock, Rear Arm
-
39503193850 Spring, Rear ArmSpring, Rear Arm
-
4031094 Glide BearingGlide Bearing
-
41605354631 Spring LockSpring Lock
-
42706000082 NutNut
-
43706000062 Spring GuideSpring Guide
-
44408200700 Grease FittingGrease Fitting
-
4540134 Allen Screw M10 x 45Allen Screw M10 x 45
-
46232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
475446652 BushingBushing
-
485446652 BushingBushing
-
49503192524 Rear Arm WeldRear Arm Weld
-
50503193644 Idler Wheel 133mmIdler Wheel 133mm
-
51605454461 SleeveSleeve
-
52207084544 Screw M8 x 45Screw M8 x 45
-
5320077 WasherWasher
-
54233281414 NutNut
-
55503193700 BushingBushing
-
56605354157 ShaftShaft
-
57250000560 Socket Head Screw M10 x 65Socket Head Screw M10 x 65
-
58503191926 WasherWasher
-
59232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
60605355801 WasherWasher
-
6131024 CushionCushion
-
62572043500 Idler WheelIdler Wheel
-
63503193330 SleeveSleeve
-
64207083544 Screw M8 x 35Screw M8 x 35
-
6520077 WasherWasher
-
66232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
67605355118 ShaftShaft
-
68503192571 Rear SwingRear Swing
-
69503192341 Rear Swing ShaftRear Swing Shaft
-
70234001410 Flat Washer M10Flat Washer M10
-
71205006044 Socket Head Screw M10 x 60Socket Head Screw M10 x 60
-
72233201414 Nut M10Nut M10
-
73234001410 Lock WasherLock Washer
-
74207204044 Screw M10 x 40Screw M10 x 40
