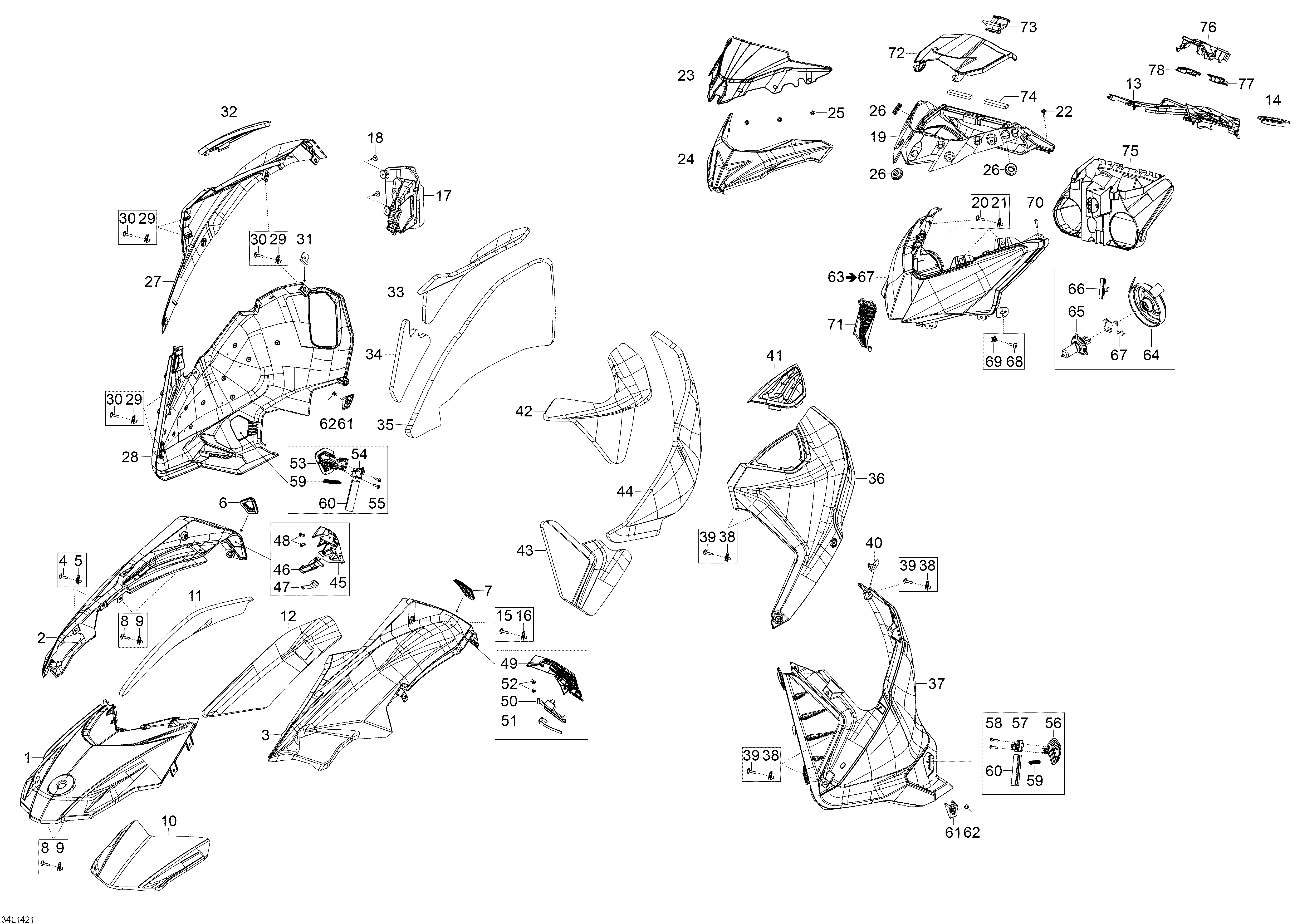

09- Hood для BRP Lynx BoonDocker 800R E-TEC - 2014
-
№АртикулНазвание
-
1517305420 HoodHood
-
2517305418 Hood RHHood RH
-
3517305419 Hood LHHood LH
-
4250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
5250000079 Panel Nut M5Panel Nut M5
-
6517305344 Rubber Button RHRubber Button RH
-
7517305345 Rubber Button LHRubber Button LH
-
8250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
9250000079 Panel Nut M5Panel Nut M5
-
10517305480 FoamFoam
-
11517305481 FoamFoam
-
12517305482 FoamFoam
-
13517305205 Console RearConsole Rear
-
14517304518 Console NutConsole Nut
-
15250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
16250000079 Panel Nut M5Panel Nut M5
-
17517305060 Console RHConsole RH
-
18250000113 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
19517305512 Indicator SupportIndicator Support
-
20250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
21250000079 Panel Nut M5Panel Nut M5
-
22250000587 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
23860200901 WindshieldWindshield
-
24517305307 SupportSupport
-
25732610072 Push NutPush Nut
-
26517303756 GrommetGrommet
-
27517305427 Panel RHPanel RH
-
28517305249 Panel RHPanel RH
-
29250000079 Panel Nut M5Panel Nut M5
-
30250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
31517305515 Guide PlateGuide Plate
-
32517305251 GrillGrill
-
33517305484 FoamFoam
-
34517305485 FoamFoam
-
35517305486 FoamFoam
-
36517305428 Panel LHPanel LH
-
37517305253 Panel LHPanel LH
-
38250000079 Panel Nut M5Panel Nut M5
-
39250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
40517305515 Guide PlateGuide Plate
-
41517305254 GrillGrill
-
42517305488 FoamFoam
-
43517305489 FoamFoam
-
44517305490 FoamFoam
-
45517305315 Lock Body RHLock Body RH
-
46517305316 Lock ArmLock Arm
-
47517305317 Lock SpringLock Spring
-
48205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
49517305319 Lock Body LHLock Body LH
-
50517305316 Lock ArmLock Arm
-
51517305317 Lock SpringLock Spring
-
52205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
53517305320 Side Panel Bottom Lock RHSide Panel Bottom Lock RH
-
54517305435 Bottom Lock Fixing Part RHBottom Lock Fixing Part RH
-
55250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
56517305348 Side Panel Bottom Lock LHSide Panel Bottom Lock LH
-
57517305436 Bottom Lock Fixing Part LHBottom Lock Fixing Part LH
-
58250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
59517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
60517305452 Bottom Lock SleeveBottom Lock Sleeve
-
61517305323 Side Panel SupportSide Panel Support
-
62390909100 RivetRivet
-
63517305497 Headlamp. Includes 63 To 67Headlamp. Includes 63 To 67
-
64219400070 CapCap
-
65515176274 BulbBulb
-
66219800282 HolderHolder
-
67219800281 SpringSpring
-
68250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
69250100035 Jack Nut M5Jack Nut M5
-
70250000113 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
71517305350 CapCap
-
72517304912 CoverCover
-
73517304917 LatchLatch
-
74517305157 SealSeal
-
75517305095 TrunkTrunk
-
76517304970 SupportSupport
-
77517305147 CapCap
-
78517305148 CapCap
