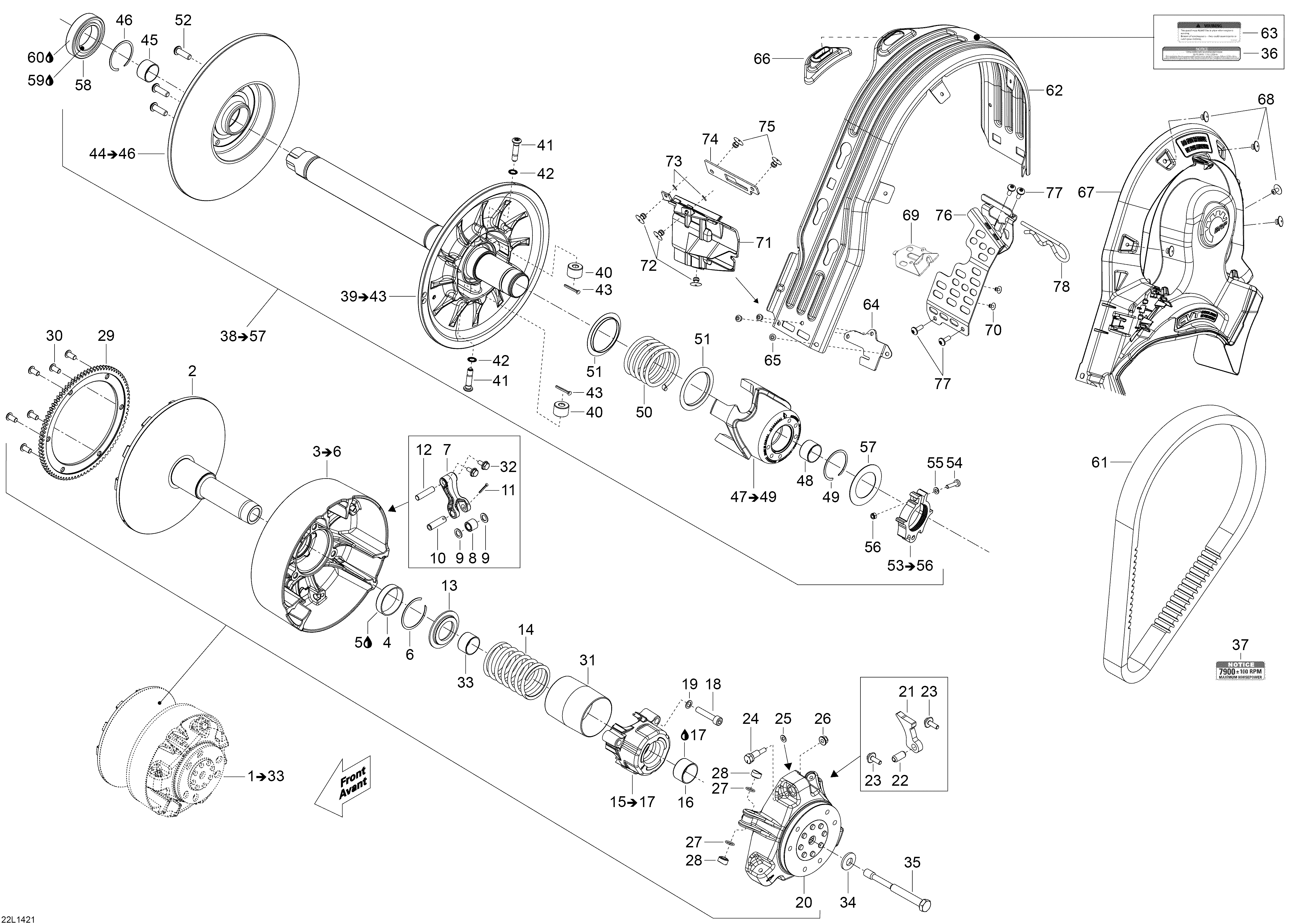

05- Pulley System для BRP Lynx BoonDocker 800R E-TEC - 2014
-
№АртикулНазвание
-
2417223232 Fixed Flange Ass'yFixed Flange Ass'y
-
3417223444 Sliding Flange Ass'y. Includes 3 To 6Sliding Flange Ass'y. Includes 3 To 6
-
4417223086 BushingBushing
-
5619600012 Loctite 609, 50mlLoctite 609, 50ml
-
6293370071 CirclipCirclip
-
7417222671 Lever Ass?yLever Ass?y
-
8417222947 Roller Ass?yRoller Ass?y
-
9417004302 Stopper WasherStopper Washer
-
10417222594 PinPin
-
11250400060 Cotter PinCotter Pin
-
12417223164 Axle LeverAxle Lever
-
13417222312 Spring SeatSpring Seat
-
14414742100 Spring (Yellow / Green, 445-1157N)Spring (Yellow / Green, 445-1157N)
-
15417222759 Spring Cover Ass'y. Includes 15 To 17Spring Cover Ass'y. Includes 15 To 17
-
16417009204 BushingBushing
-
17619600012 Loctite 609, 50mlLoctite 609, 50ml
-
18205084044 Socket Head Screw M8 x 40Socket Head Screw M8 x 40
-
19250200009 Lock Washer 8mmLock Washer 8mm
-
20417223666 Governor CupGovernor Cup
-
21417222508 RampRamp
-
22250400050 Spring Pin M10 x 22Spring Pin M10 x 22
-
23250000418 Hex. Flanged Screw M6 x 18, Scotch GripHex. Flanged Screw M6 x 18, Scotch Grip
-
24417223501 Calibration ScrewCalibration Screw
-
25417005600 WasherWasher
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27732401030 O RingO Ring
-
28417223271 Slider ShoeSlider Shoe
-
29417223739 Ring GearRing Gear
-
30250000533 Hex. Flanged Screw M8 x 16, Scotch GripHex. Flanged Screw M8 x 16, Scotch Grip
-
31417009205 GuardGuard
-
32250000416 Hex. Flanged Screw M6 x 16, Scotch GripHex. Flanged Screw M6 x 16, Scotch Grip
-
33417223471 BushingBushing
-
34250200144 Conical Spring WasherConical Spring Washer
-
35417300409 Drive Pulley Bolt, TRA 7Drive Pulley Bolt, TRA 7
-
36516005503 Decal, Notice, Drive Pulley BoltDecal, Notice, Drive Pulley Bolt
-
37516005507 RPM DecalRPM Decal
-
39417127389 Fixed Flange Ass'y. Includes 39 To 43Fixed Flange Ass'y. Includes 39 To 43
-
40417127016 RollerRoller
-
41417127294 StudStud
-
42250200009 Lock WasherLock Washer
-
43250400063 Spring Pin M3 x 30Spring Pin M3 x 30
-
44417127317 Sliding Flange Ass'y. Includes 44 To 46Sliding Flange Ass'y. Includes 44 To 46
-
45417127318 BushingBushing
-
46293370049 CirclipCirclip
-
47417127386 Cam Ass'y (40?XT). Includes 47 To 49Cam Ass'y (40?XT). Includes 47 To 49
-
48417127318 BushingBushing
-
49293370049 CirclipCirclip
-
50417127118 Spring (Blue / Blue, 700 / 985N)Spring (Blue / Blue, 700 / 985N)
-
51417127116 Swivel AbutmentSwivel Abutment
-
52250000283 Button Head Torx Screw M8 x 25, Scotch GripButton Head Torx Screw M8 x 25, Scotch Grip
-
53415129604 Pulley Adjuster Ass'y. Includes 53 To 56Pulley Adjuster Ass'y. Includes 53 To 56
-
54205052544 Socket HD Screw M5 x 25Socket HD Screw M5 x 25
-
55234051410 Flat Washer M5Flat Washer M5
-
56232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
57417127155 WasherWasher
-
58504152574 Ball BearingBall Bearing
-
59619600012 Loctite 609, 50mlLoctite 609, 50ml
-
60619600013 Loctite 8151 (Antiseize), 400ml SprayLoctite 8151 (Antiseize), 400ml Spray
-
61417300391 Drive BeltDrive Belt
-
62417300357 Belt GuardBelt Guard
-
63516005509 Warning Decal, Security Belt GuardWarning Decal, Security Belt Guard
-
64417300423 Front BracketFront Bracket
-
65390909200 RivetRivet
-
66417300381 GuideGuide
-
67417300441 CVT Air DuctCVT Air Duct
-
68293150103 Pop RivetPop Rivet
-
69417300445 StopperStopper
-
70390909200 RivetRivet
-
71417300430 Front SupportFront Support
-
72293150104 Pop Rivet 3/16Pop Rivet 3/16
-
73517225900 Flat WasherFlat Washer
-
74417300421 ReinforcementReinforcement
-
75390909100 RivetRivet
-
76417300448 Belt Guard BracketBelt Guard Bracket
-
77250000145 Torx Screw M5 x 14Torx Screw M5 x 14
-
78114045200 Hair PinHair Pin
