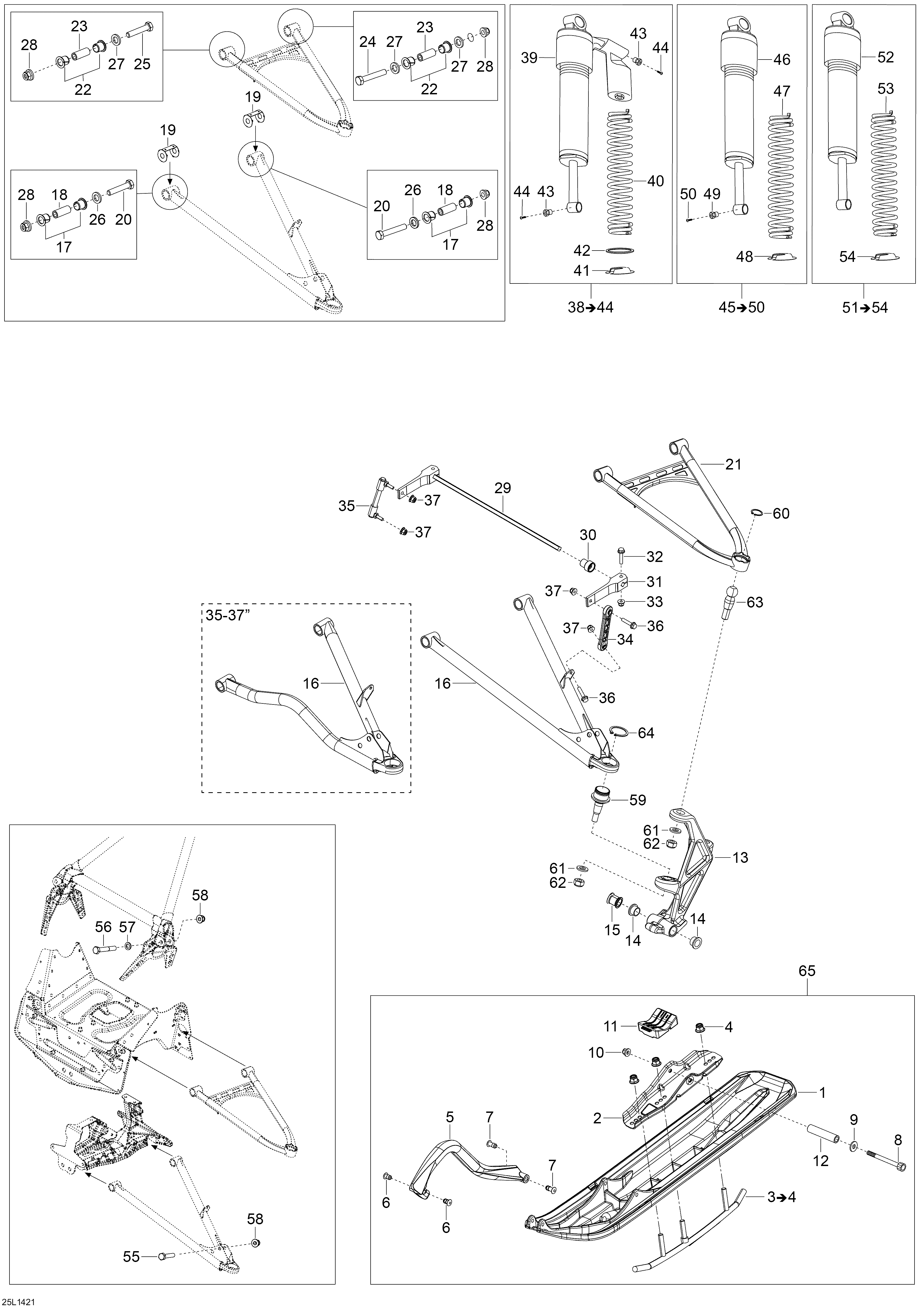

07- Front Suspension And Ski для BRP Lynx BoonDocker 800R E-TEC - 2014
-
№АртикулНазвание
-
1505073154 Blade Ski (Black)Blade Ski (Black)
-
2505073240 Ski BridgeSki Bridge
-
3605349378 Ski Runner Kit. Includes 3 To 4Ski Runner Kit. Includes 3 To 4
-
4233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
5505072976 Handle (Black)Handle (Black)
-
5505073108 Handle (White)Handle (White)
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8231080044 Hex. Cap Screw M10 x 100Hex. Cap Screw M10 x 100
-
9732900049 WasherWasher
-
10233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
11505073411 Rubber DamperRubber Damper
-
12506133300 Ski AxleSki Axle
-
13505073562 Ski Leg LH, BlackSki Leg LH, Black
-
13505073563 Ski Leg RH, BlackSki Leg RH, Black
-
14505072690 CushionCushion
-
15505072807 SpacerSpacer
-
16505072497 Lower Arm RHLower Arm RH
-
16505073225 Lower Arm RH. (35-37'')Lower Arm RH. (35-37'')
-
16505072498 Lower Arm LHLower Arm LH
-
16505073226 Lower Arm LH. (35-37'')Lower Arm LH. (35-37'')
-
17505073330 CushionCushion
-
18505072393 BushingBushing
-
19505072634 Wear PlateWear Plate
-
20250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
21505073468 Upper Arm LHUpper Arm LH
-
21505073013 Upper Arm LH. (35-37'')Upper Arm LH. (35-37'')
-
21505073469 Upper Arm RHUpper Arm RH
-
21505073014 Upper Arm RH. (35-37'')Upper Arm RH. (35-37'')
-
22505073329 BushingBushing
-
23505072143 BushingBushing
-
24250000290 Screw Hex. M10 x 60Screw Hex. M10 x 60
-
25250000289 Screw Hex. M10 x 50Screw Hex. M10 x 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100088 Hex. Elastic Nut M10Hex. Elastic Nut M10
-
29505072785 StabilisatorStabilisator
-
29505072602 Stabilisator. (35-37'')Stabilisator. (35-37'')
-
30505072786 BushingBushing
-
30505072064 Bushing. (35-37'')Bushing. (35-37'')
-
31505073176 Stabilisator LeverStabilisator Lever
-
31505072394 Stabilisator Lever. (35-37'')Stabilisator Lever. (35-37'')
-
32207663046 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
33233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34505073172 Double Ball Joint LinkDouble Ball Joint Link
-
34505072204 Double Ball Joint Link. (35-37'')Double Ball Joint Link. (35-37'')
-
35860200811 Double Ball Joint Link (Quick Release)Double Ball Joint Link (Quick Release)
-
36207663046 Hex. Flanged Screw M6 x 30Hex. Flanged Screw M6 x 30
-
37233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
39505073157 Front Shock LHFront Shock LH
-
39505073158 Front Shock RHFront Shock RH
-
40505073228 SpringSpring
-
41503192608 Spring StopperSpring Stopper
-
42505073150 WasherWasher
-
43505072753 Knob AdjusterKnob Adjuster
-
44250000644 Socket Screw M3 x 10Socket Screw M3 x 10
-
46505073117 Front ShockFront Shock
-
47505072846 SpringSpring
-
48503192608 Spring StopperSpring Stopper
-
49505072753 Knob AdjusterKnob Adjuster
-
50250000644 Socket Screw M3 x 10Socket Screw M3 x 10
-
52505073349 Front ShockFront Shock
-
53505072726 SpringSpring
-
54503192608 Spring StopperSpring Stopper
-
55207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
56207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
57503189564 WasherWasher
-
58233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
59505072682 Ball JointBall Joint
-
60293370070 CirclipCirclip
-
61234021410 Flat WasherFlat Washer
-
62250100089 Nut M12Nut M12
-
63505072913 Ball JointBall Joint
-
64293370035 CirclipCirclip
-
65860200884 Blade Ski Kit (Black). Includes 1 To 11Blade Ski Kit (Black). Includes 1 To 11
-
65860200885 Blade Ski Kit (White). Includes 1 To 11Blade Ski Kit (White). Includes 1 To 11
