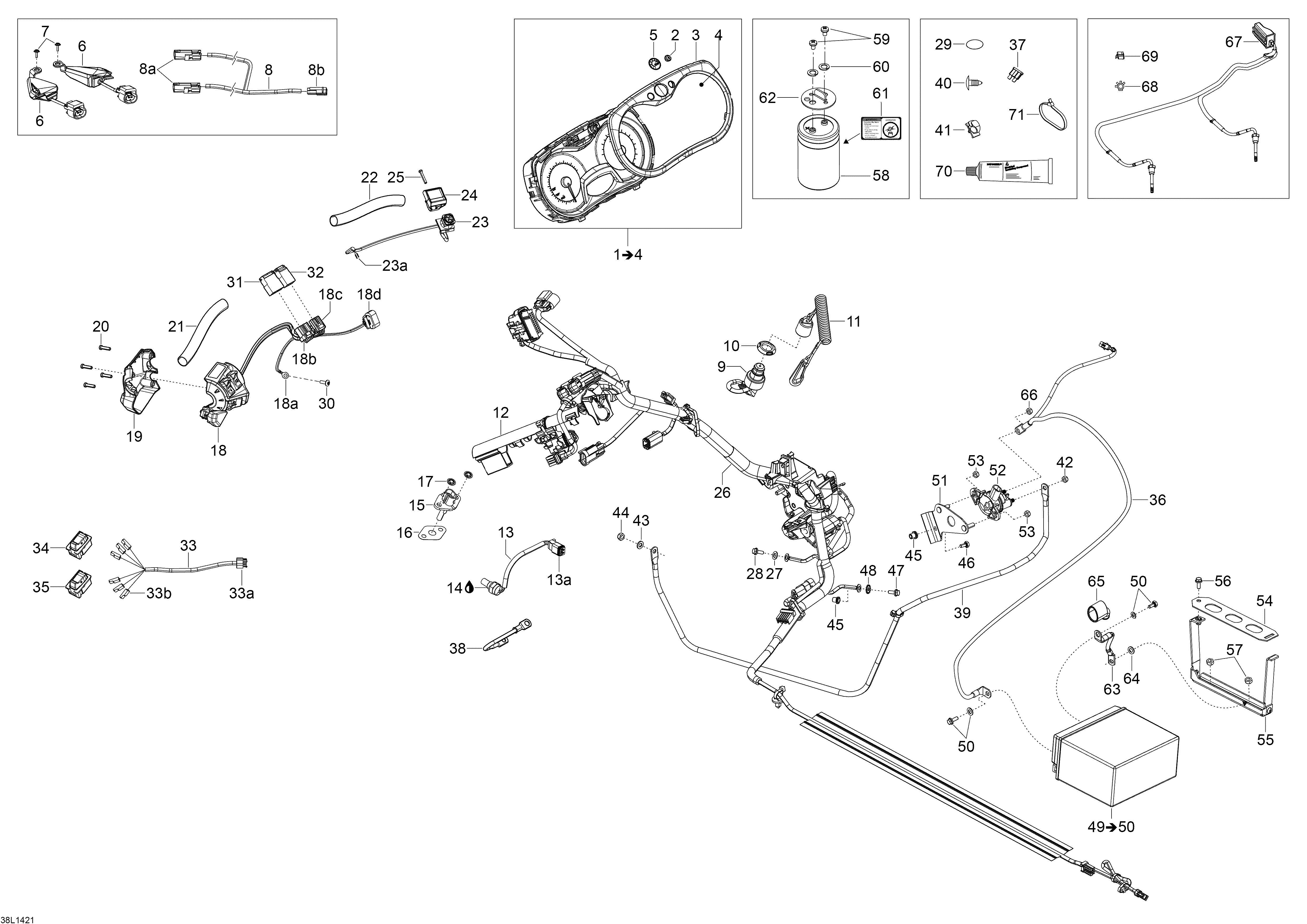

10- Electrical System для BRP Lynx BoonDocker 800R E-TEC - 2014
-
№АртикулНазвание
-
1515177804 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5219902677 BRP LogoBRP Logo
-
6515177580 Signature Light RHSignature Light RH
-
6515177581 Signature Light LHSignature Light LH
-
7250000113 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
8515177632 Signature Light HarnessSignature Light Harness
-
8a710001153 Wire SealWire Seal
-
8b515175654 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
8b515175232 Male TerminalMale Terminal
-
9515177249 Dess SwitchDess Switch
-
10278002963 Safety Switch NutSafety Switch Nut
-
11515177057 DESS CapDESS Cap
-
12515177134 PlatePlate
-
13515177471 Temperature SensorTemperature Sensor
-
13a515175670 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
13a278000632 Female TerminalFemale Terminal
-
13a278001661 Female TerminalFemale Terminal
-
13a293000052 Sealing CapSealing Cap
-
13a515175675 Female LockFemale Lock
-
15515176366 Air Temperature SensorAir Temperature Sensor
-
16508000769 RingRing
-
17389804300 Push NutPush Nut
-
18515177615 HousingHousing
-
18b515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
18b515175231 Female TerminalFemale Terminal
-
18b515175235 Female TerminalFemale Terminal
-
18c515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
18c515175231 Female TerminalFemale Terminal
-
18c515175235 Female TerminalFemale Terminal
-
18d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
19515177149 Housing PlateHousing Plate
-
20250000671 Torx ScrewTorx Screw
-
21515177320 Protector TubeProtector Tube
-
22515177320 Protector TubeProtector Tube
-
23515177362 Kill SwitchKill Switch
-
23a515175232 Male TerminalMale Terminal
-
24515177310 SupportSupport
-
25250000263 Torx ScrewTorx Screw
-
26515177542 Main HarnessMain Harness
-
27234141601 Lock WasherLock Washer
-
28250000127 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
29518325560 Adhesive PatchAdhesive Patch
-
30250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
31515175662 Male Housing, 6 CirsuitsMale Housing, 6 Cirsuits
-
31515175232 Male TerminalMale Terminal
-
32515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
32515175232 Male TerminalMale Terminal
-
33515177495 Warmer HarnessWarmer Harness
-
33a710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
33b710002398 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
33b710002399 Female TerminalFemale Terminal
-
34515177497 Hand Warmer Rocker SwitchHand Warmer Rocker Switch
-
35515177498 Thumb Warmer Rocker SwitchThumb Warmer Rocker Switch
-
36515177496 Battery Cable With ChargingBattery Cable With Charging
-
37278001443 Fuse 25AFuse 25A
-
38515177289 Ground WireGround Wire
-
39515177208 Battery CableBattery Cable
-
40414644300 DartDart
-
41515177066 ClipClip
-
42232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
43234061410 Flat WasherFlat Washer
-
44232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
45293450275 InsertInsert
-
46207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
47207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
48250200041 Serrated Lock WasherSerrated Lock Washer
-
49296000295 Battery 18A. Includes 49 To 50Battery 18A. Includes 49 To 50
-
50250000282 Fastener KitFastener Kit
-
51515177558 Relay SupportRelay Support
-
52278003012 Starter RelayStarter Relay
-
53233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
54518327281 Battery StrapBattery Strap
-
55518327282 Battery StrapBattery Strap
-
56207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
57233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
58515177272 CapacitorCapacitor
-
59250000462 Socket Head Screw M10 x 32Socket Head Screw M10 x 32
-
60250200026 Lock WasherLock Washer
-
61516006206 Capacitor DecalCapacitor Decal
-
62515177193 CapCap
-
63515176780 Ground CableGround Cable
-
64234061410 Flat WasherFlat Washer
-
65570151000 Protection CapProtection Cap
-
66232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
67515177600 Dual Thermocouple ModuleDual Thermocouple Module
-
68514055100 LockLock
-
69414227300 Spring ClipSpring Clip
-
70619600021 Loctite 8104 (Dielectric Grease), 75mlLoctite 8104 (Dielectric Grease), 75ml
-
71414115200 Tie Rap 180mmTie Rap 180mm
-
71293750008 Tie Rap 350mmTie Rap 350mm
-
71293750002 Tie Rap 142mmTie Rap 142mm
-
71605627000 Tie RapTie Rap
