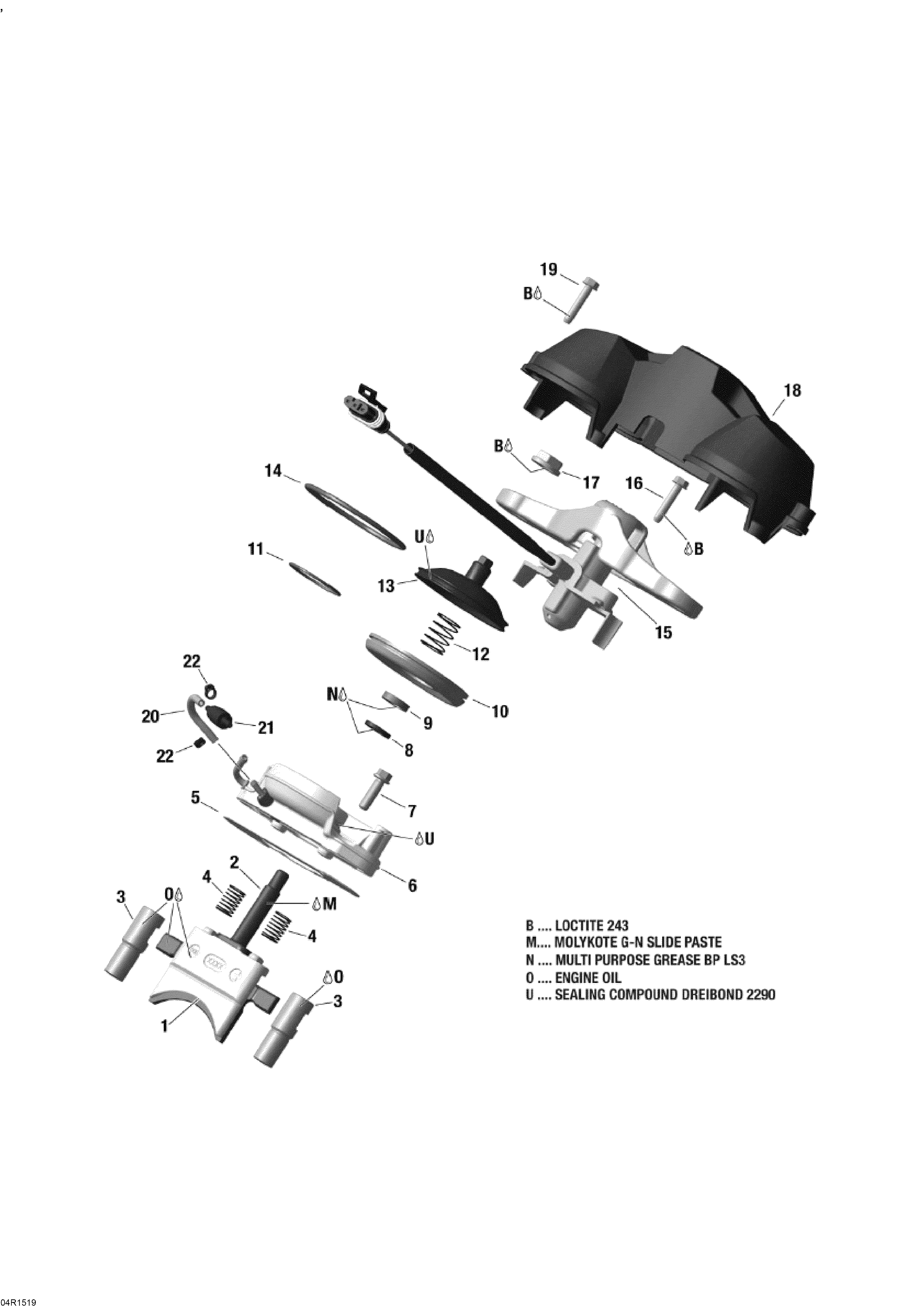

01- RAVE Valve для BRP Lynx BoonDocker 800R E-TEC - 2015

№

Артикул

Название
1

420854900 Upper Exhaust Valve

Upper Exhaust Valve

24 750 ₽
2

420854904 Lower Exhaust Valve

Lower Exhaust Valve

36 790 ₽
3

420854890 Exhaust Valve

Exhaust Valve

6 200 ₽
4

420238556 Spring

Spring

690 ₽
5

420430032 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

9 170 ₽
6

420854888 Valve Housing

Valve Housing

33 150 ₽
7

420440207 Flanged Torx Screw M6 x 20. Tightening Torque 8-10 Nm

Flanged Torx Screw M6 x 20. Tightening Torque 8-10 Nm

1 120 ₽
8

420431380 Gasket Ring. Included In Gasket Kit

Gasket Ring. Included In Gasket Kit

2 770 ₽
9

420950730 Oil Seal. Included In Gasket Kit

Oil Seal. Included In Gasket Kit

660 ₽
10

420260725 Bellows

Bellows

18 540 ₽
11

420838255 Hose Spring

Hose Spring

2 610 ₽
12

420238557 Spring

Spring

1 740 ₽
13

420854442 Valve Cover

Valve Cover

5 090 ₽
14

420939285 Hose Spring

Hose Spring

510 ₽
15

420854089 Position Sensor

Position Sensor

36 230 ₽
16

420841550 Hex. Taptite Screw M5 x 22. Tightening Torque 5-6 Nm

Hex. Taptite Screw M5 x 22. Tightening Torque 5-6 Nm

840 ₽
17

420942190 Nut M12 x 1.5. Tightening Torque 5-6 Nm

Nut M12 x 1.5. Tightening Torque 5-6 Nm

4 170 ₽
18

420910821 Rave Cover

Rave Cover

4 170 ₽
19

420841550 Hex. Taptite Screw M5 x 22. Tightening Torque 5-6 Nm

Hex. Taptite Screw M5 x 22. Tightening Torque 5-6 Nm

840 ₽
20

414413800 Oil Hose

Oil Hose

300 ₽
21

404160200 Check Valve Ass’y

Check Valve Ass’y

0 ₽
22

420851508 Clamp

Clamp

1 910 ₽
B

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
U

420297906 Sealing Compound, 30ml

Sealing Compound, 30ml

3 950 ₽
