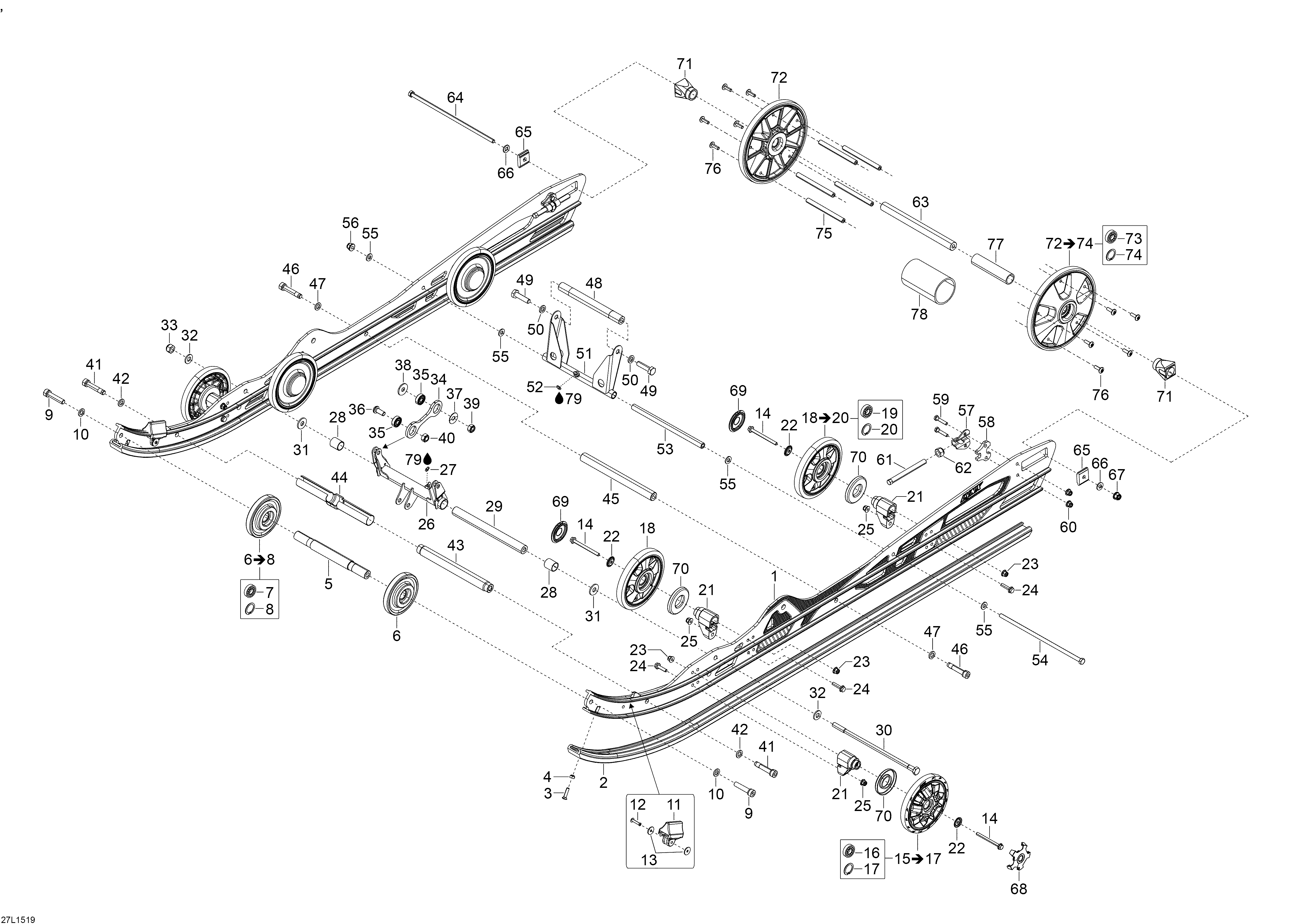

08- Rear Suspension (3700) для BRP Lynx BoonDocker 800R E-TEC - 2015
-
№АртикулНазвание
-
1503193757 LH RunnerLH Runner
-
1503193917 RH RunnerRH Runner
-
2503193170 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192842 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Wheel 100mm. Includes 6 To 8Wheel 100mm. Includes 6 To 8
-
7503190396 Ball BearingBall Bearing
-
9205504544 Socket HD Screw M10 x 45Socket HD Screw M10 x 45
-
10503192496 Flat Washer M10Flat Washer M10
-
11503192106 Rubber StopperRubber Stopper
-
12293150142 Pop Rivet 3/16Pop Rivet 3/16
-
13503191273 WasherWasher
-
14207667056 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
15503193734 Wheel 141mm. Includes 15 To 17Wheel 141mm. Includes 15 To 17
-
16503190396 Ball BearingBall Bearing
-
18503191316 Wheel 141mm. Includes 18 To 20Wheel 141mm. Includes 18 To 20
-
19503190396 Ball BearingBall Bearing
-
20415129371 CirclipCirclip
-
21503193894 SupportSupport
-
22503191820 Cup WasherCup Washer
-
23233261466 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
24207662556 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
25233261466 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
26503193580 Swing WeldSwing Weld
-
27408200700 Grease FittingGrease Fitting
-
28503193822 CushionCushion
-
29503193893 ShaftShaft
-
30503193227 Hex. Screw M10 x 251Hex. Screw M10 x 251
-
31503191926 WasherWasher
-
32250200138 WasherWasher
-
33233601466 Elastic Lock Nut M10Elastic Lock Nut M10
-
34605254159 Connecting RodConnecting Rod
-
35605631003 Ball BearingBall Bearing
-
36205402546 Socket Head Screw M10 x 25Socket Head Screw M10 x 25
-
3725004 Spring CupSpring Cup
-
38234002600 Washer M10Washer M10
-
39233401414 Lock Spring M10Lock Spring M10
-
40232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
41205505054 Socket Head Screw M10 x 50Socket Head Screw M10 x 50
-
42503192496 WasherWasher
-
43605353958 ShaftShaft
-
44605355096 Limiter Strap RetainerLimiter Strap Retainer
-
455343471 ShaftShaft
-
46205505054 Socket Head Screw M10 x 50Socket Head Screw M10 x 50
-
47503192496 Flat Washer M10Flat Washer M10
-
48503193638 ShaftShaft
-
49207204044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
50503192496 WasherWasher
-
51503193578 Rear SwingRear Swing
-
52408200700 Grease FittingGrease Fitting
-
53503189156 Pivot AxlePivot Axle
-
54503192440 Hex. Screw M8 x 248Hex. Screw M8 x 248
-
55503192494 WasherWasher
-
56233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
57503192583 Tensioner HousingTensioner Housing
-
58503193250 SpacerSpacer
-
59207063054 Hex. Cap Screw M6 x 30Hex. Cap Screw M6 x 30
-
60233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
61230100054 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
62233601466 Elastic Lock Nut M10Elastic Lock Nut M10
-
63503194105 AxleAxle
-
64503194069 Hex. Screw M8 x 261Hex. Screw M8 x 261
-
65503194067 Axle SliderAxle Slider
-
66250200159 Conical Spring WasherConical Spring Washer
-
67233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
68503193735 Black Wheel CapBlack Wheel Cap
-
69503192771 Black Wheel CapBlack Wheel Cap
-
70503190434 Labyrinth SealLabyrinth Seal
-
71503190428 SpacerSpacer
-
72503193760 Wheel 200mm. Includes 72 To 74Wheel 200mm. Includes 72 To 74
-
73503190396 Ball BearingBall Bearing
-
74415129371 CirclipCirclip
-
75503193761 RodRod
-
76250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
77503191263 SpacerSpacer
-
78503193097 BushingBushing
-
79619590193 Synthetic GreaseSynthetic Grease
