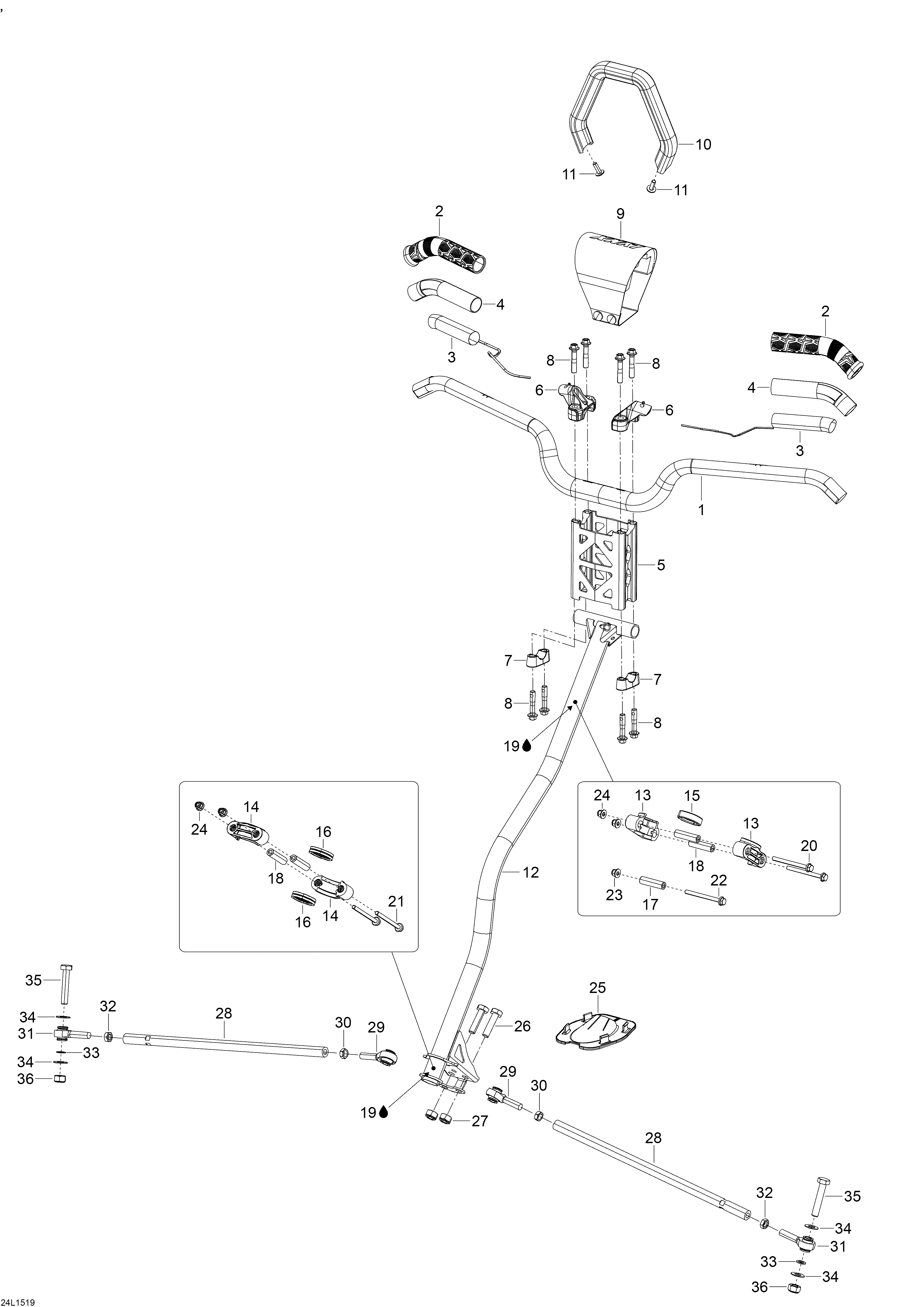

07- Steering System для BRP Lynx BoonDocker 800R E-TEC - 2015
-
№АртикулНазвание
-
1506152723 Handle BarHandle Bar
-
2506152486 GripGrip
-
3506152665 Heated Film (32W)Heated Film (32W)
-
4506152548 IsolantIsolant
-
5506152530 ExtensionExtension
-
6506152555 LH SupportLH Support
-
6506152556 RH SupportRH Support
-
7506152751 Steering SupportSteering Support
-
8250000352 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
9506152649 Steering PadSteering Pad
-
10506152460 Strap Ass'yStrap Ass'y
-
11250000402 Torx Truss Screw M6 x 18Torx Truss Screw M6 x 18
-
12506152584 Main TubeMain Tube
-
13506152508 Half Housing UpperHalf Housing Upper
-
14506152217 Half Housing LowerHalf Housing Lower
-
15506152509 Vibrat. Gasket UpperVibrat. Gasket Upper
-
16506152518 Vibrat. Gasket LowerVibrat. Gasket Lower
-
17506152297 Housing BushingHousing Bushing
-
18506152297 Housing BushingHousing Bushing
-
19619590193 Synthetic GreaseSynthetic Grease
-
20207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
21207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
22207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
23233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
24233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
25506152163 PlatePlate
-
26207004044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
27232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
28506152498 Tie RodTie Rod
-
28506152482 Tie Rod. (900mm)Tie Rod. (900mm)
-
29506152081 Ball JointBall Joint
-
30250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
31506152019 Ball JointBall Joint
-
32732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
33503192496 WasherWasher
-
34506152194 WasherWasher
-
35207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
36232500416 Elastic Stop Nut M10Elastic Stop Nut M10
