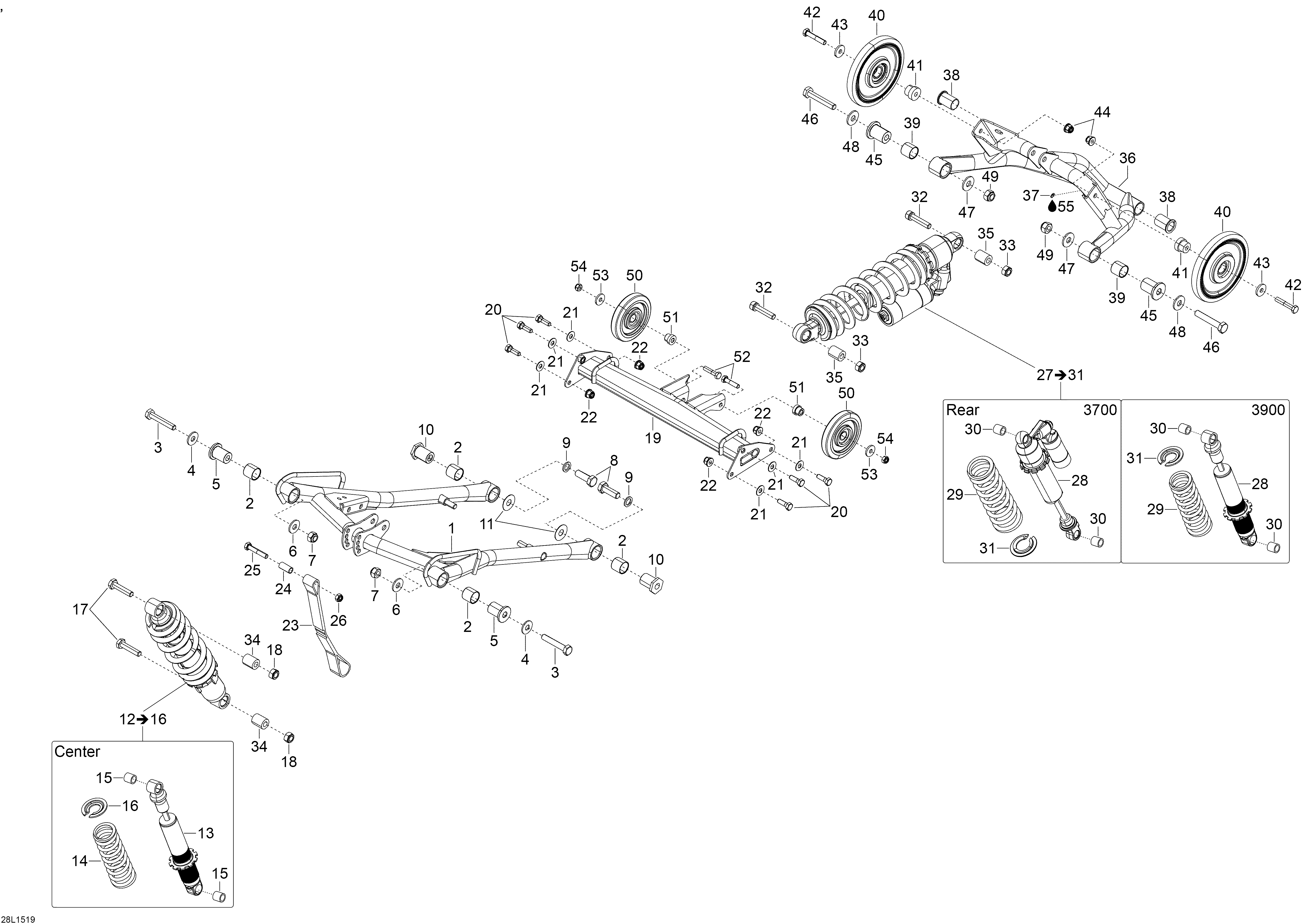

08- Rear Suspension для BRP Lynx BoonDocker 800R E-TEC - 2015
-
№АртикулНазвание
-
1503193561 Front ArmFront Arm
-
2503191554 BushingBushing
-
3250000696 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
4250200138 WasherWasher
-
5503190698 AxleAxle
-
6503191926 WasherWasher
-
7233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
8250000537 Hex. Cap Screw M12 x 35Hex. Cap Screw M12 x 35
-
9503192491 WasherWasher
-
10503191966 AxleAxle
-
11503190656 WasherWasher
-
13503193287 ShockShock
-
14605625010 SpringSpring
-
1531094 Glide BearingGlide Bearing
-
16230076 Spring SeatSpring Seat
-
17207004544 Hex. Cap Screw M10 x 45. (3700)Hex. Cap Screw M10 x 45. (3700)
-
17207004544 Hex. Cap Screw M10 x 45. (3900)Hex. Cap Screw M10 x 45. (3900)
-
18232500416 Elastic Stop Nut. (3700)Elastic Stop Nut. (3700)
-
18232500416 Elastic Stop Nut. (3900)Elastic Stop Nut. (3900)
-
19503194090 Middle BeamMiddle Beam
-
20250000556 Hex. Cap Screw M8 x 25Hex. Cap Screw M8 x 25
-
21503192494 WasherWasher
-
22233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
23605355116 Limiter StrapLimiter Strap
-
24605455335 SleeveSleeve
-
25207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
26232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
28503194103 Shock. (3700)Shock. (3700)
-
28503193523 Shock. (3900)Shock. (3900)
-
29503193849 Spring. (3700)Spring. (3700)
-
29503193851 Spring. (3900)Spring. (3900)
-
3031094 Glide BearingGlide Bearing
-
31605354631 Spring LockSpring Lock
-
3240134 Socket HD Screw M10 x 45Socket HD Screw M10 x 45
-
33232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
345446652 Bushing. (3700)Bushing. (3700)
-
345446652 Bushing. (3900)Bushing. (3900)
-
355446652 BushingBushing
-
36503193571 Rear ArmRear Arm
-
37408200700 Grease FittingGrease Fitting
-
38503191640 CushionCushion
-
39503191554 BushingBushing
-
40503193852 Idler Wheel 140mmIdler Wheel 140mm
-
41605454461 SleeveSleeve
-
42207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
4320077 WasherWasher
-
44233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
45503190698 AxleAxle
-
46250000696 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
47503191926 WasherWasher
-
48503191926 WasherWasher
-
49233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
50572043500 Idler WheelIdler Wheel
-
51503193330 SleeveSleeve
-
52207083544 Hex. Cap Screw M8 x 35Hex. Cap Screw M8 x 35
-
5320077 WasherWasher
-
54232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
55619590193 Synthetic GreaseSynthetic Grease
