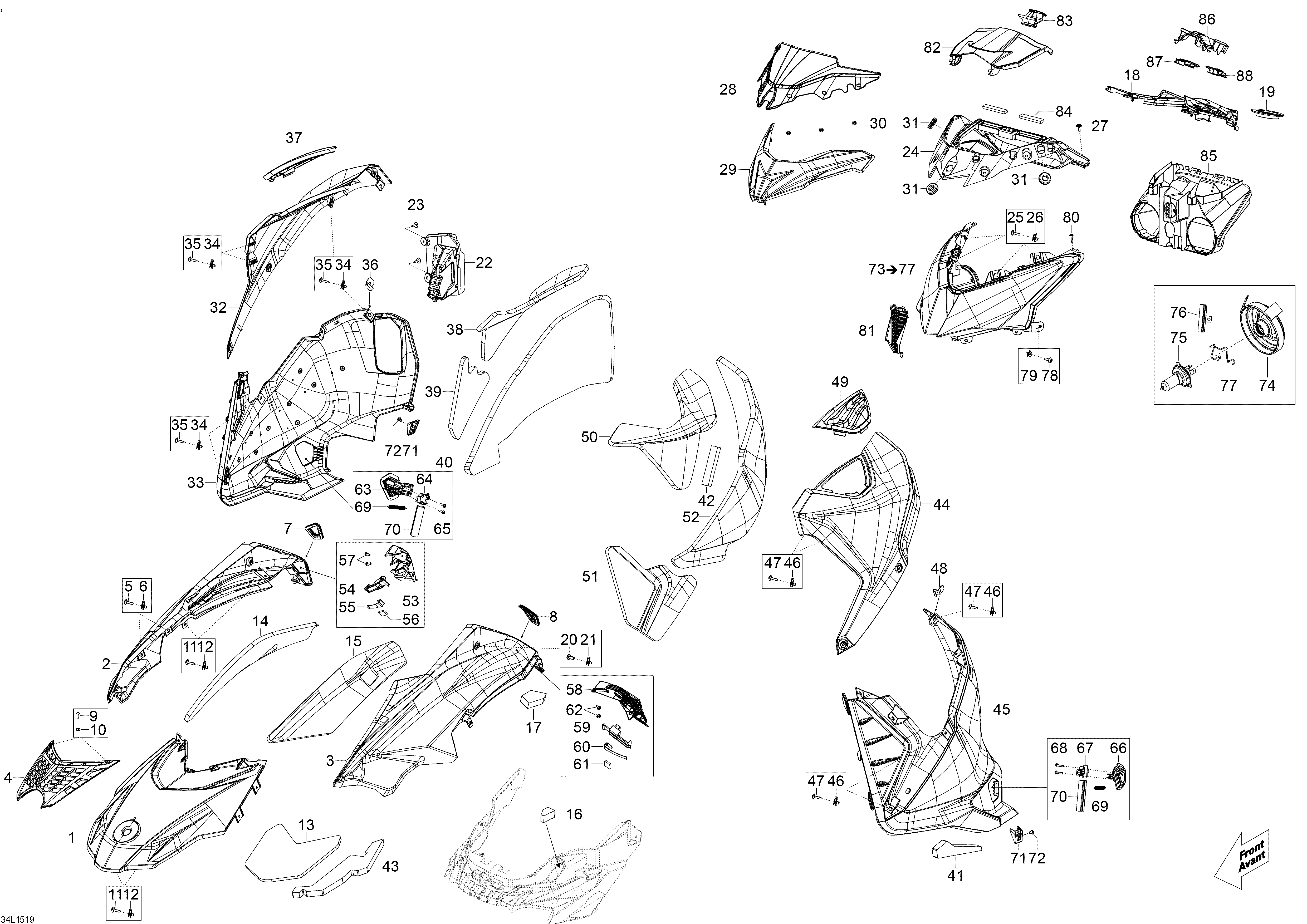

09- Hood And Windshield для BRP Lynx BoonDocker 800R E-TEC - 2015
-
№АртикулНазвание
-
1517305420 Grey HoodGrey Hood
-
1517305608 Grey Hood. (Air Radiator)Grey Hood. (Air Radiator)
-
2517305418 Black RH HoodBlack RH Hood
-
3517305419 Black LH HoodBlack LH Hood
-
4517305362 Hood Grill. (Air Radiator)Hood Grill. (Air Radiator)
-
5250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
6250000079 Panel Nut M5Panel Nut M5
-
7517305344 RH Rubber ButtonRH Rubber Button
-
8517305345 LH Rubber ButtonLH Rubber Button
-
9235551494 Button HD Torx Screw M5 x 14. (Air Radiator)Button HD Torx Screw M5 x 14. (Air Radiator)
-
10233251434 Elastic Flange Nut M5. (Air Radiator)Elastic Flange Nut M5. (Air Radiator)
-
11250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
12250000079 Panel Nut M5Panel Nut M5
-
13517305480 FoamFoam
-
14517305481 FoamFoam
-
15517305482 FoamFoam
-
16517305812 FoamFoam
-
17517305824 FoamFoam
-
18517305205 Console RearConsole Rear
-
19517304518 Console NutConsole Nut
-
20250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
21250000079 Panel Nut M5Panel Nut M5
-
22517305060 Black RH ConsoleBlack RH Console
-
23250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
24517305512 Indicator SupportIndicator Support
-
25250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
26250000079 Panel Nut M5Panel Nut M5
-
27250000587 Torx Truss Screw M5 x 26Torx Truss Screw M5 x 26
-
28860200901 WindshieldWindshield
-
29517305307 SupportSupport
-
30732610072 Push NutPush Nut
-
31517303756 GrommetGrommet
-
32517305427 Grey RH PanelGrey RH Panel
-
33517305249 Black RH PanelBlack RH Panel
-
34250000079 Panel Nut M5Panel Nut M5
-
35250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
36517305515 Guide PlateGuide Plate
-
37517305251 GrillGrill
-
38517305484 FoamFoam
-
39517305485 FoamFoam
-
40517305486 FoamFoam
-
41517305813 FoamFoam
-
42517305814 FoamFoam
-
43517305815 FoamFoam
-
44517305428 Grey LH PanelGrey LH Panel
-
45517305253 Black LH PanelBlack LH Panel
-
46250000079 Panel Nut M5Panel Nut M5
-
47250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
48517305515 Guide PlateGuide Plate
-
49517305254 GrillGrill
-
50517305488 FoamFoam
-
51517305489 FoamFoam
-
52517305490 FoamFoam
-
53517305315 RH Lock BodyRH Lock Body
-
54517305757 Lock ArmLock Arm
-
55517305317 Lock SpringLock Spring
-
56517306005 Lock Support PlateLock Support Plate
-
57205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
58517305319 LH Lock BodyLH Lock Body
-
59517305757 Lock ArmLock Arm
-
60517305317 Lock SpringLock Spring
-
61517306005 Lock Support PlateLock Support Plate
-
62205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
63517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
64517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
65250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
66517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
67517305759 LH Bottom Lock Fixing PartLH Bottom Lock Fixing Part
-
68250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
69517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
70517305452 Bottom Lock SleeveBottom Lock Sleeve
-
71517305323 Side Panel SupportSide Panel Support
-
72390909100 RivetRivet
-
73517305497 Headlamp. Includes 73 To 77Headlamp. Includes 73 To 77
-
74219400070 CapCap
-
75515176274 BulbBulb
-
76219800282 HolderHolder
-
77219800281 SpringSpring
-
78250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
79250100035 Jack Nut M5Jack Nut M5
-
80250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
81517305350 CapCap
-
82517304912 CoverCover
-
83517304917 LatchLatch
-
84517305157 SealSeal
-
85517305095 TrunkTrunk
-
86517304970 SupportSupport
-
87517305147 CapCap
-
88517305148 CapCap
