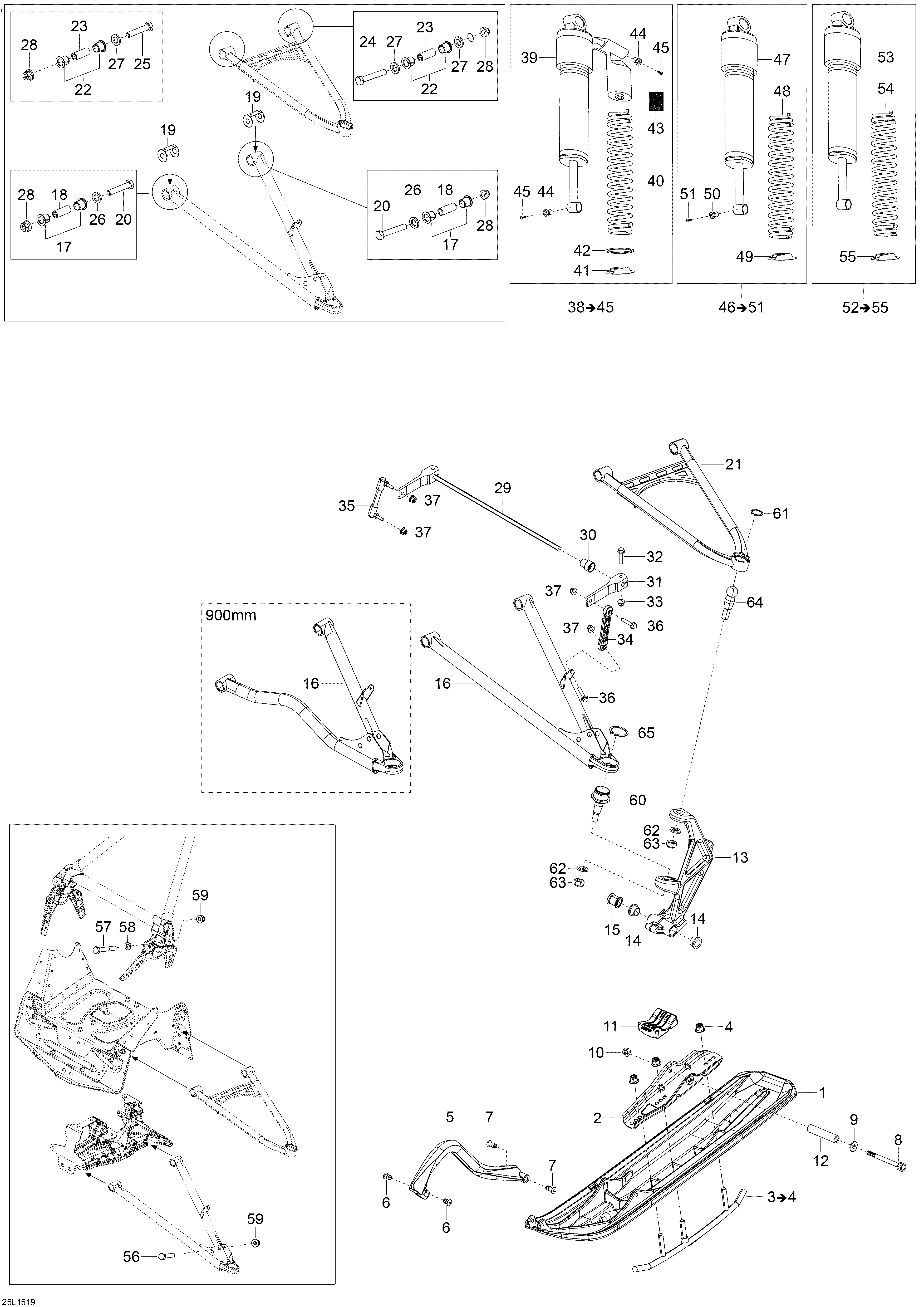

07- Front Suspension And Ski для BRP Lynx BoonDocker 800R E-TEC - 2015
-
№АртикулНазвание
-
1505073154 Black Blade SkiBlack Blade Ski
-
2505073240 Ski BridgeSki Bridge
-
3860200959 Ski Runner Kit. Includes 3 To 4Ski Runner Kit. Includes 3 To 4
-
4233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
5505072976 Black HandleBlack Handle
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8231080044 Hex. Cap Screw M10 x 100Hex. Cap Screw M10 x 100
-
9732900049 WasherWasher
-
10233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
11505073411 Rubber DamperRubber Damper
-
12506133300 Ski AxleSki Axle
-
13505073238 Black LH Ski LegBlack LH Ski Leg
-
13505073239 Black RH Ski LegBlack RH Ski Leg
-
14505072690 CushionCushion
-
15505071999 SpacerSpacer
-
16505072497 RH Lower ArmRH Lower Arm
-
16505073225 RH Lower Arm. (900mm)RH Lower Arm. (900mm)
-
16505072498 LH Lower ArmLH Lower Arm
-
16505073226 LH Lower Arm. (900mm)LH Lower Arm. (900mm)
-
17505073330 CushionCushion
-
18505072393 BushingBushing
-
19505072634 Wear PlateWear Plate
-
20250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
21505073468 LH Upper ArmLH Upper Arm
-
21505073466 LH Upper Arm. (900mm)LH Upper Arm. (900mm)
-
21505073469 RH Upper ArmRH Upper Arm
-
21505073467 RH Upper Arm. (900mm)RH Upper Arm. (900mm)
-
22505073329 BushingBushing
-
23505072143 BushingBushing
-
24250000290 Hex. Screw M10 x 60Hex. Screw M10 x 60
-
25250000289 Hex. Screw M10 x 50Hex. Screw M10 x 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100165 Hex. Elastic Nut M10Hex. Elastic Nut M10
-
29505073609 StabilisatorStabilisator
-
30505072786 BushingBushing
-
31505073176 Stabilisator LeverStabilisator Lever
-
32207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
33233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
34505073172 Double Ball Joint LinkDouble Ball Joint Link
-
35860200811 Double Ball Joint Link (Quick Release)Double Ball Joint Link (Quick Release)
-
36207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
37233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
39505073157 LH ShockLH Shock
-
39505073158 RH ShockRH Shock
-
40505073228 SpringSpring
-
41503192608 Spring StopperSpring Stopper
-
42505073150 WasherWasher
-
43516005534 Shock Adjustment DecalShock Adjustment Decal
-
44505072753 Knob AdjusterKnob Adjuster
-
45250000644 Socket Screw M3 x 10Socket Screw M3 x 10
-
47505073117 ShockShock
-
48505072846 SpringSpring
-
49503192608 Spring StopperSpring Stopper
-
50505072753 Knob AdjusterKnob Adjuster
-
51250000644 Socket Screw M3 x 10Socket Screw M3 x 10
-
53505073638 ShockShock
-
54505072741 SpringSpring
-
55503192608 Spring StopperSpring Stopper
-
56207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
57207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
58503189564 WasherWasher
-
59233201414 Hex. Flange Elastic Nut M10Hex. Flange Elastic Nut M10
-
60505072682 Ball JointBall Joint
-
61293370070 CirclipCirclip
-
62234021410 Flat WasherFlat Washer
-
63250100089 Nut M12Nut M12
-
64505072913 Ball JointBall Joint
-
65293370035 CirclipCirclip
