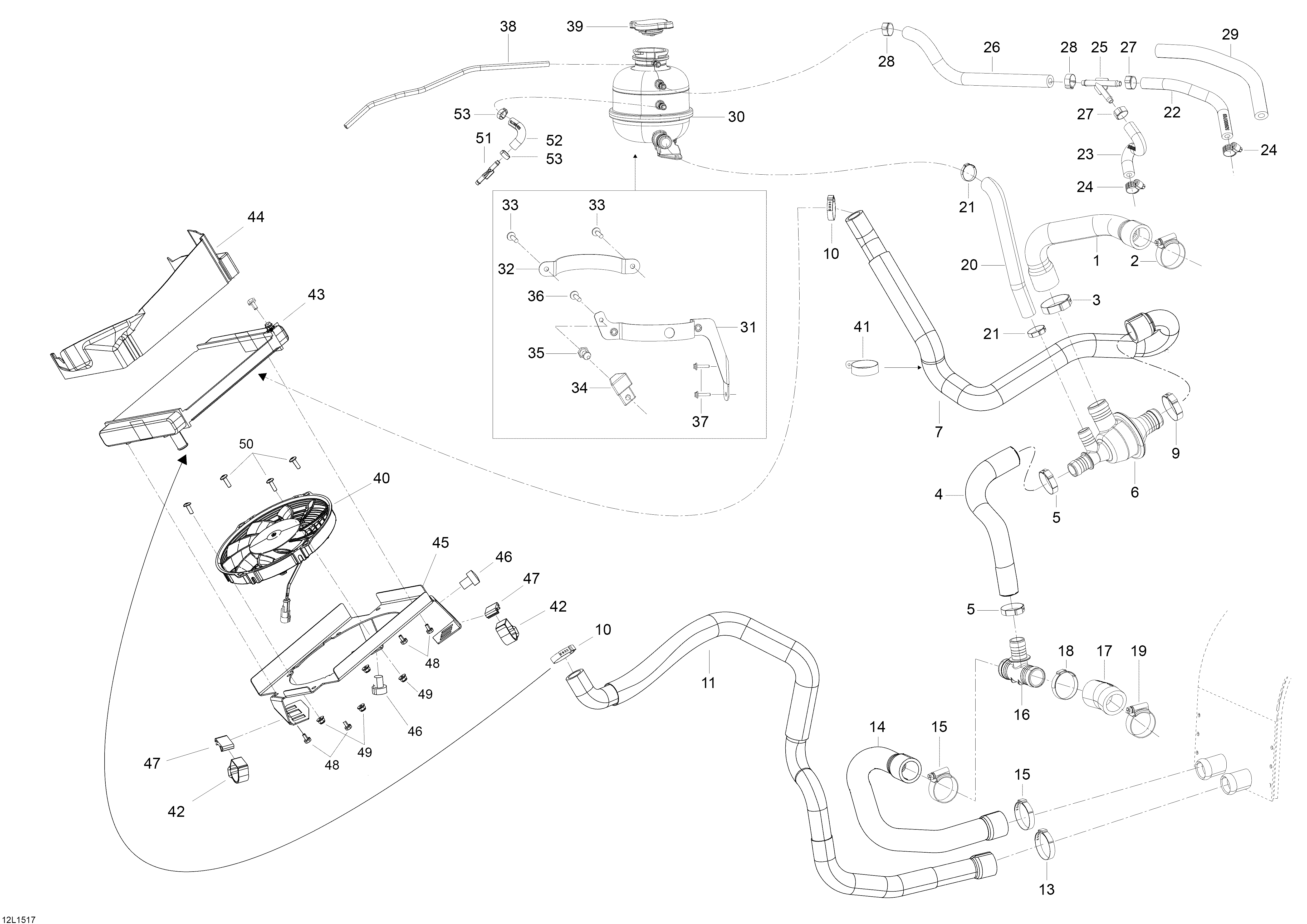

01- Cooling System для BRP Lynx Xtrim Commander 800R E-TEC - 2015
-
№АртикулНазвание
-
1509000595 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Gear ClampGear Clamp
-
3509000181 Crimp ClampCrimp Clamp
-
4509000523 Bypass HoseBypass Hose
-
5293650099 Crimp ClampCrimp Clamp
-
6509000499 Thermostat HousingThermostat Housing
-
7509000983 Thermostat Outlet HoseThermostat Outlet Hose
-
836005 RivetRivet
-
9509000181 Crimp ClampCrimp Clamp
-
10293650099 Crimp ClampCrimp Clamp
-
11509000981 HoseHose
-
12293650099 Crimp ClampCrimp Clamp
-
13509000443 Gear ClampGear Clamp
-
14509000979 Radiator HoseRadiator Hose
-
15509000443 Gear ClampGear Clamp
-
16509000372 T-FittingT-Fitting
-
17509000674 Radiator HoseRadiator Hose
-
18509000181 Crimp ClampCrimp Clamp
-
19509000443 Gear ClampGear Clamp
-
20509000736 Filler HoseFiller Hose
-
21509000442 Crimp ClampCrimp Clamp
-
22509000769 HoseHose
-
23509000768 HoseHose
-
24293650170 Gear ClampGear Clamp
-
25293710059 Y-ConnectorY-Connector
-
26509000878 Breather HoseBreather Hose
-
27293650046 Crimp ClampCrimp Clamp
-
28293650047 Crimp ClampCrimp Clamp
-
29513033231 Protector TubeProtector Tube
-
30509000368 Coolant TankCoolant Tank
-
31509000852 Reservoir SupportReservoir Support
-
32509000608 SupportSupport
-
33250000676 Forming ScrewForming Screw
-
34509000609 SupportSupport
-
35517303439 KnobKnob
-
36250000146 Torx Truss Screw K50 x 16Torx Truss Screw K50 x 16
-
37250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
38276000048 Hose 6mmHose 6mm
-
39509000180 Pressure CapPressure Cap
-
40509000838 Cooling FanCooling Fan
-
4127011 Clamp With RubberClamp With Rubber
-
42508000532 Velcro StripVelcro Strip
-
43509000756 RadiatorRadiator
-
44509000985 Air Intake ShroudAir Intake Shroud
-
45509000984 SupportSupport
-
46570044700 Rubber BumperRubber Bumper
-
47508000822 Rubber Bumper 800Rubber Bumper 800
-
48207661244 Screw M6 x 12Screw M6 x 12
-
49233261414 Nut Flanged M6Nut Flanged M6
-
50250000128 TORX-TRUSS M6 x 20 NYLON PATCHTORX-TRUSS M6 x 20 NYLON PATCH
-
51293710156 Straight connectorStraight connector
-
52509000879 HoseHose
-
53293650047 ClampClamp
