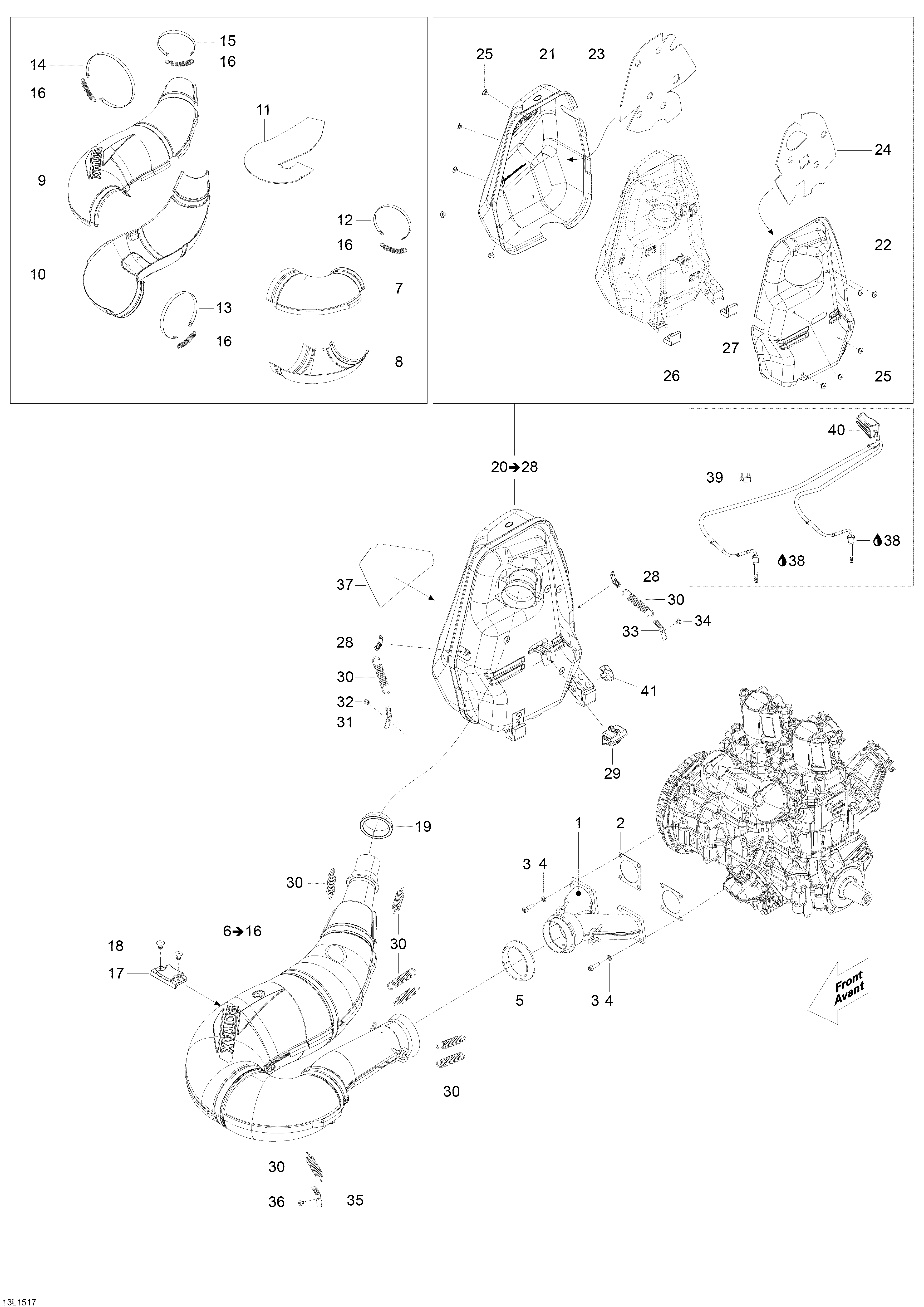

01- Exhaust System для BRP Lynx Xtrim Commander 800R E-TEC - 2015
-
№АртикулНазвание
-
1420673373 Exhaust ManifoldExhaust Manifold
-
2420430482 GasketGasket
-
3250000414 Socket Screw M8 x 22, Scotch GripSocket Screw M8 x 22, Scotch Grip
-
4250200111 Washer M8Washer M8
-
5514053487 Exhaust GasketExhaust Gasket
-
6514055019 Tune Pipe Ass'y. Includes 6 To 16Tune Pipe Ass'y. Includes 6 To 16
-
7514054992 Front Upper EnveloppeFront Upper Enveloppe
-
8514054993 Front Lower EnveloppeFront Lower Enveloppe
-
9514055067 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
10514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
11514054487 Insulating WoolInsulating Wool
-
12514054408 Retaining StrapRetaining Strap
-
13514054409 Retaining StrapRetaining Strap
-
14514054410 Retaining StrapRetaining Strap
-
15514053499 Retaining StrapRetaining Strap
-
16514053643 SpringSpring
-
17514054275 BumperBumper
-
18293150103 Pop Rivet 3/16Pop Rivet 3/16
-
19514053812 Exhaust GasketExhaust Gasket
-
20514055023 Muffler Ass'y. Includes 20 To 28Muffler Ass'y. Includes 20 To 28
-
21514054986 RH DeflectorRH Deflector
-
22514054967 LH DeflectorLH Deflector
-
23514054711 RH Insulating WoolRH Insulating Wool
-
24514054299 LH Insulating WoolLH Insulating Wool
-
25390910000 Pop Rivet 3/16Pop Rivet 3/16
-
26514054274 Lower StopperLower Stopper
-
27514054496 Lower StopperLower Stopper
-
28514054155 Spring BracketSpring Bracket
-
29514054606 Upper StopperUpper Stopper
-
30514054226 SpringSpring
-
31514054391 Spring BracketSpring Bracket
-
32390402200 Pop Rivet 3/16”Pop Rivet 3/16”
-
33514054391 Spring BracketSpring Bracket
-
34390402200 Pop Rivet 3/16”Pop Rivet 3/16”
-
35514054087 Spring BracketSpring Bracket
-
36293150147 RivetRivet
-
37514054817 Heat ShieldHeat Shield
-
38619600013 Loctite 8151 (Antiseize), 400 ml SprayLoctite 8151 (Antiseize), 400 ml Spray
-
39414227300 ClipClip
-
40415129998 ModuleModule
-
41514053654 Bumber rubberBumber rubber
