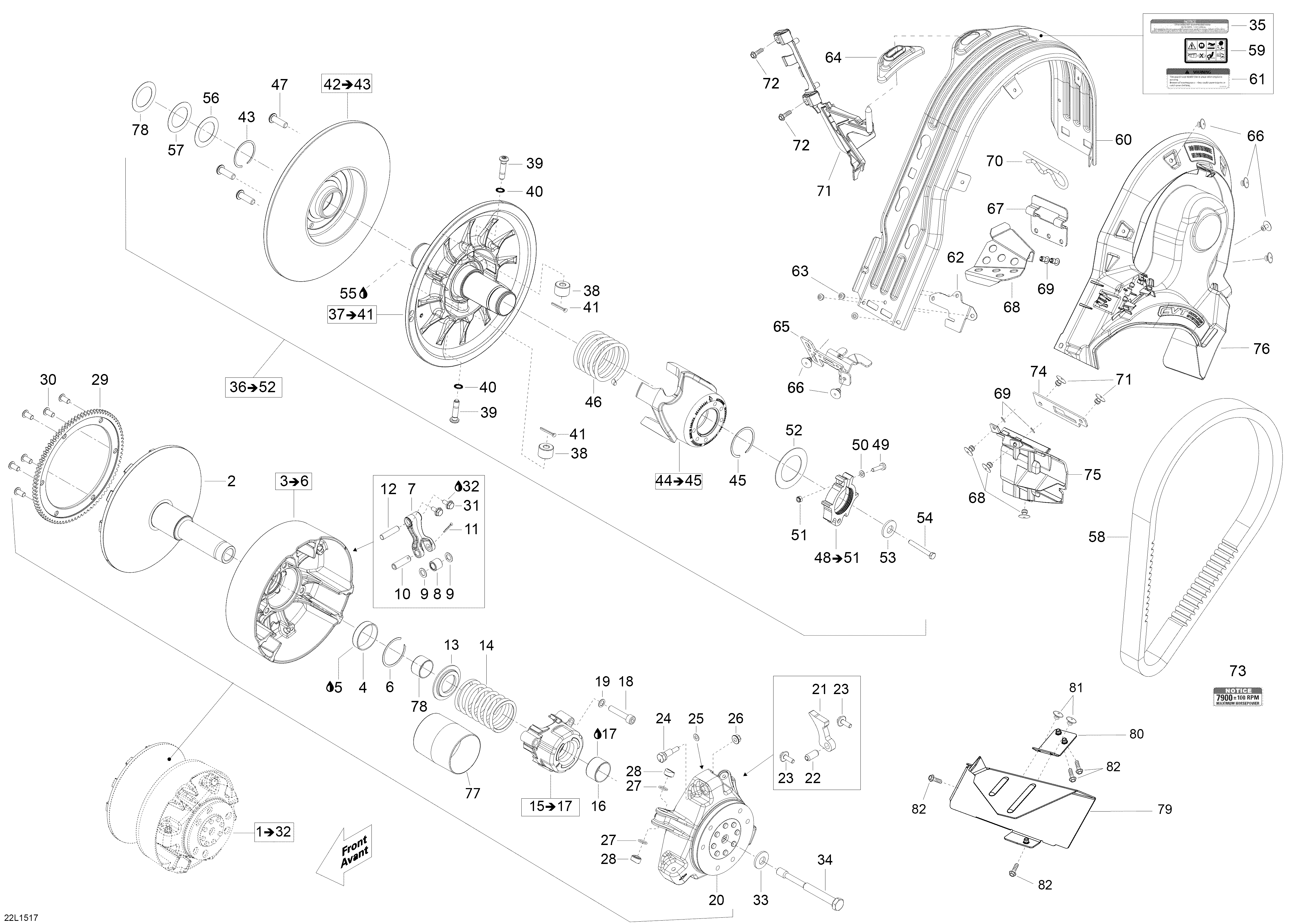

05- Pulley System для BRP Lynx Xtrim Commander 800R E-TEC - 2015
-
№АртикулНазвание
-
2417223232 Fixed Flange Ass'yFixed Flange Ass'y
-
3417223444 Sliding Flange Ass'y. Includes 3 To 6Sliding Flange Ass'y. Includes 3 To 6
-
4417223086 BushingBushing
-
5619600012 Loctite 609, 50mlLoctite 609, 50ml
-
6293370071 CirclipCirclip
-
7417222671 Lever Ass'yLever Ass'y
-
8417222947 Roller Ass'yRoller Ass'y
-
9417004302 Stopper WasherStopper Washer
-
10417222594 PinPin
-
11250400060 Cotter PinCotter Pin
-
12417223164 Lever AxleLever Axle
-
13417222312 Spring SeatSpring Seat
-
14414742100 Spring (YELLOW/GREEN) 445-1157Spring (YELLOW/GREEN) 445-1157
-
15417222759 Spring Cover Ass'y. Includes 15 To 17Spring Cover Ass'y. Includes 15 To 17
-
16417009204 BushingBushing
-
17619600012 Loctite 609, 50mlLoctite 609, 50ml
-
18205084044 Socket Head Screw M8 x 40Socket Head Screw M8 x 40
-
19250200009 Lock Washer 8mmLock Washer 8mm
-
20417223666 Governor Cup Ass'yGovernor Cup Ass'y
-
21417222508 Ramp 413Ramp 413
-
22250400050 Spring PinSpring Pin
-
23250000418 Hex. Flanged Scew M6 x 18Hex. Flanged Scew M6 x 18
-
24417223501 Calibration ScrewCalibration Screw
-
25417005600 WasherWasher
-
26233261414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
27732401030 O-RingO-Ring
-
28417223271 Slider ShoeSlider Shoe
-
29417223739 Ring GearRing Gear
-
30250000533 Torx Screw M8 x 16Torx Screw M8 x 16
-
31250000412 Serrated Hex. Flange Screw M6 x 12Serrated Hex. Flange Screw M6 x 12
-
32293800060 Loctite 243, 10mlLoctite 243, 10ml
-
33250200006 Spring WasherSpring Washer
-
34417300409 Drive Pulley Bolt TRA 7Drive Pulley Bolt TRA 7
-
35516005503 Decal Notice, Drive Pulley BoltDecal Notice, Drive Pulley Bolt
-
37417127410 Fixed Flange Ass'y. Includes 37 To 41Fixed Flange Ass'y. Includes 37 To 41
-
38417127189 RollerRoller
-
39417127294 StudStud
-
40250200009 Lock Washer 8mmLock Washer 8mm
-
41250400061 Spring Pin M3 x 18Spring Pin M3 x 18
-
42417127366 Sliding Flange Ass'y. Includes 42 To 43Sliding Flange Ass'y. Includes 42 To 43
-
43293370049 CirclipCirclip
-
44417127411 Cam Ass'y (40?). Includes 44 To 45Cam Ass'y (40?). Includes 44 To 45
-
45293370049 CirclipCirclip
-
46417127243 Spring (White / White, 476-705N)Spring (White / White, 476-705N)
-
47250000283 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
48415129604 Pulley Adjuster Ass'y. Includes 48 To 51Pulley Adjuster Ass'y. Includes 48 To 51
-
49205052544 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
50234051410 Flat Washer M5Flat Washer M5
-
51232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
52417127155 WasherWasher
-
53517302322 Strength WasherStrength Washer
-
54207287544 Hex. Cap Screw M8 x 75Hex. Cap Screw M8 x 75
-
55619600013 Loctite 8151 (Antiseize), 400ml SprayLoctite 8151 (Antiseize), 400ml Spray
-
56417300265 Spacer. (Adjustment Part, Use If Needed)Spacer. (Adjustment Part, Use If Needed)
-
57504112000 Shim. (Adjustment Part, Use If Needed)Shim. (Adjustment Part, Use If Needed)
-
58417300391 Drive BeltDrive Belt
-
59516003919 Warning LabelWarning Label
-
60417300357 Belt GuardBelt Guard
-
61516006900 Security Label, Belt GuardSecurity Label, Belt Guard
-
62417300380 ReinforcementReinforcement
-
63390909200 RivetRivet
-
64417300381 GuideGuide
-
65417300364 BracketBracket
-
66293150103 Pop Rivet 3/16Pop Rivet 3/16
-
67417300363 Belt Guard BracketBelt Guard Bracket
-
68518325626 Brake Hose CoverBrake Hose Cover
-
69293150163 RivetRivet
-
70114045200 Hair PinHair Pin
-
71417300396 Belt Guard BracketBelt Guard Bracket
-
72250000243 Screw Torx M8X16Screw Torx M8X16
-
74417300421 ReinforcementReinforcement
-
75417300422 Front supportFront support
-
76417300441 Cvt air ductCvt air duct
-
77417009205 GuardGuard
-
79417223471 BushingBushing
-
78417300252 Spacer ( 2,06 mm.). (Adjustment Part, Use If Needed)Spacer ( 2,06 mm.). (Adjustment Part, Use If Needed)
-
79417300461 Air Duct XUAir Duct XU
-
80417300462 Air Duct BracketAir Duct Bracket
-
81293150102 RivetRivet
-
82250000722 Torx Truss M6 x 20Torx Truss M6 x 20
