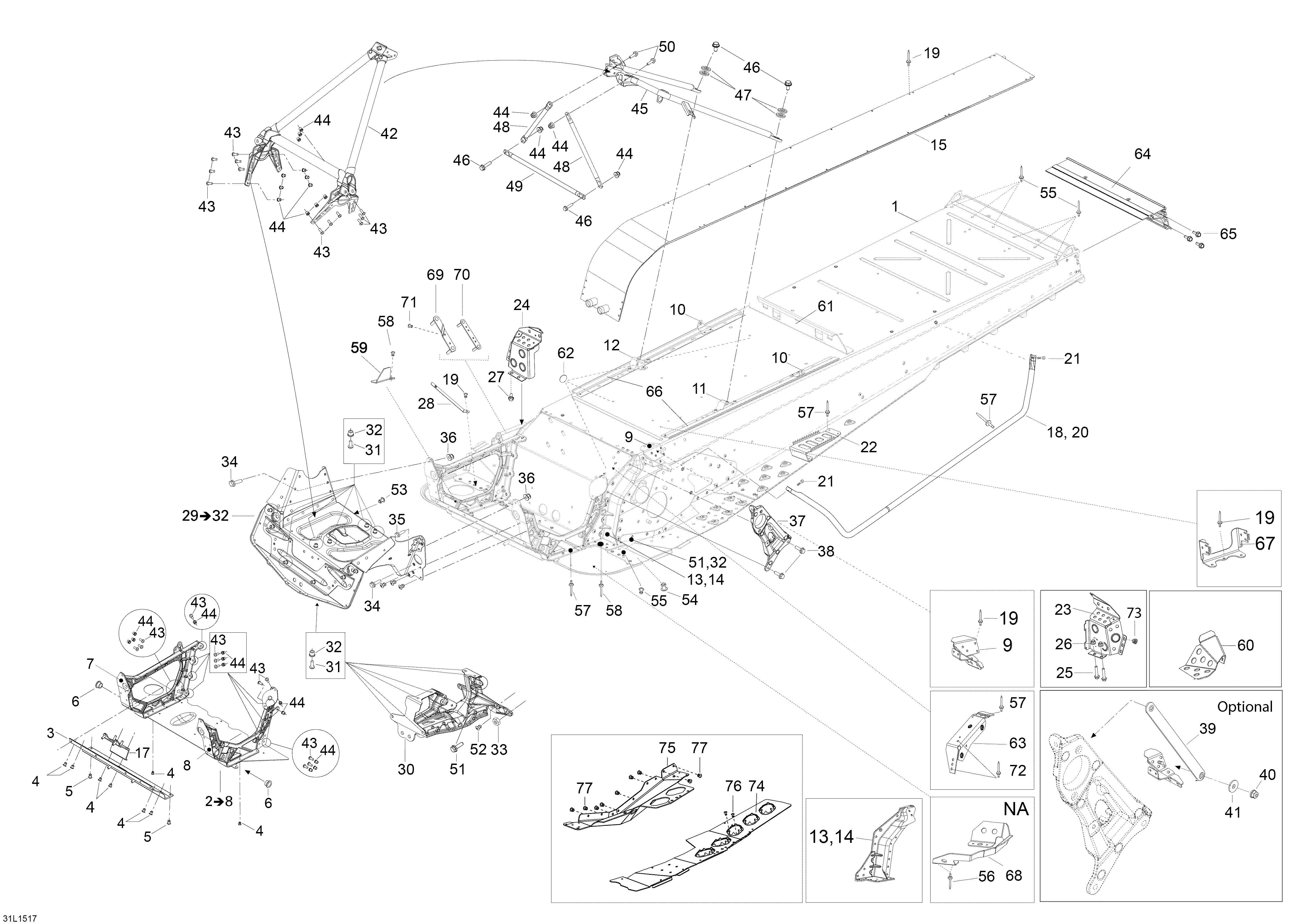

09- Frame для BRP Lynx Xtrim Commander 800R E-TEC - 2015
-
№АртикулНазвание
-
1518328195 FRAME XU E-TEC PPS ECS BLACKFRAME XU E-TEC PPS ECS BLACK
-
2518328186 Module EModule E
-
3518326198 Front memberFront member
-
4293150119 Rivet hucklokRivet hucklok
-
5293150120 Rivet hucklokRivet hucklok
-
6505072690 CushionCushion
-
7518326795 R.H. MemberR.H. Member
-
8518326796 L.H. MemberL.H. Member
-
9605355235 Fastening bracketFastening bracket
-
10518325987 Seat box bracketSeat box bracket
-
11518326109 Bracket L.H.Bracket L.H.
-
12518326110 Bracket R.H.Bracket R.H.
-
13518325524 Frame corner L.H.Frame corner L.H.
-
14518325526 Frame corner R.H.Frame corner R.H.
-
15509000626 RadiatorRadiator
-
17518325943 MAG SupportMAG Support
-
18518326963 Footrest support tube L.H.Footrest support tube L.H.
-
19390909200 Rivet Avex 10mm.Rivet Avex 10mm.
-
20518326964 Footrest support tube R.H.Footrest support tube R.H.
-
21207662086 Screw-hex. Flange M6 x 20Screw-hex. Flange M6 x 20
-
22520001208 Footrest black (Optional)Footrest black (Optional)
-
23518327374 Toe hook L.H. BlackToe hook L.H. Black
-
24518327376 Toe hook R.H. BlackToe hook R.H. Black
-
25207662056 Hex. Flange screw M6 x 20Hex. Flange screw M6 x 20
-
26233261414 Elastic flanged nut M6Elastic flanged nut M6
-
27250000223 Torx-Screw M6 x 16Torx-Screw M6 x 16
-
28514054616 Brachet springBrachet spring
-
29518328392 Cross memberCross member
-
30518327487 SupportSupport
-
31207662044 Hex. Flanged Screw M6 X 20 (8.8)Hex. Flanged Screw M6 X 20 (8.8)
-
32233261414 Hex. Flanged elastic nut M6Hex. Flanged elastic nut M6
-
33233281414 Elastic flanged nut M8Elastic flanged nut M8
-
34210262080 Hex. Screw forming M6 x 20Hex. Screw forming M6 x 20
-
35250000450 Hex. Flange screwHex. Flange screw
-
36233261414 Flanged elastic nutFlanged elastic nut
-
37518328434 Pulley support mach.Pulley support mach.
-
38207582586 Hex. Flanged screw M8 x 25Hex. Flanged screw M8 x 25
-
39518326449 Draft bar (Optional)Draft bar (Optional)
-
40233261414 Elastic flanged nut M6Elastic flanged nut M6
-
41234081430 Flat washerFlat washer
-
42518326970 Member-frontMember-front
-
43207662044 Hex. Flanged screw M6 x 20 (10.9)Hex. Flanged screw M6 x 20 (10.9)
-
44233261414 Elastic flanged nut M6Elastic flanged nut M6
-
45518326103 Support tube upperSupport tube upper
-
46207662056 Hex. Flanged screw M6 x 20Hex. Flanged screw M6 x 20
-
48518325114 SupportSupport
-
49518325115 Upper columUpper colum
-
50250000450 Hex. Flanged screw M6 x 25Hex. Flanged screw M6 x 25
-
51207561244 Hex. Flanged screw M6 x 12Hex. Flanged screw M6 x 12
-
52293150147 Hemlock rivetHemlock rivet
-
53293730042 Dart 5-6Dart 5-6
-
54414644300 DartDart
-
55390909200 Rivet AvexRivet Avex
-
56293150104 Pop Rivet 3/16Pop Rivet 3/16
-
57293150102 Rivet avex 12 mm.Rivet avex 12 mm.
-
58293150163 Rivet Huckloc 4.8 mm.Rivet Huckloc 4.8 mm.
-
59518326642 Muffler support plateMuffler support plate
-
60518325626 Brake hose coverBrake hose cover
-
61518325986 Battery support plateBattery support plate
-
62518325560 Adhesive patchAdhesive patch
-
63518326430 Clinch nut plateClinch nut plate
-
64518327194 Rear profile threaded (Alu)Rear profile threaded (Alu)
-
65207582586 Screw M8x25 10.9Screw M8x25 10.9
-
66518326107 Fastening railFastening rail
-
67515177073 Fuse box supportFuse box support
-
69518326123 Gearbox Counter Plate FrontGearbox Counter Plate Front
-
70518326124 Gearbox Counter Plate RearGearbox Counter Plate Rear
-
71390402200 Pop Rivet 3/16Pop Rivet 3/16
-
72293150183 Rivet hemlock 19.7 mm.Rivet hemlock 19.7 mm.
-
73605636003 Clinch nut HexsertClinch nut Hexsert
-
74518328332 Footrest LHFootrest LH
-
74518328333 Footrest RHFootrest RH
-
76390909100 RivetRivet
-
77293150119 RivetRivet
