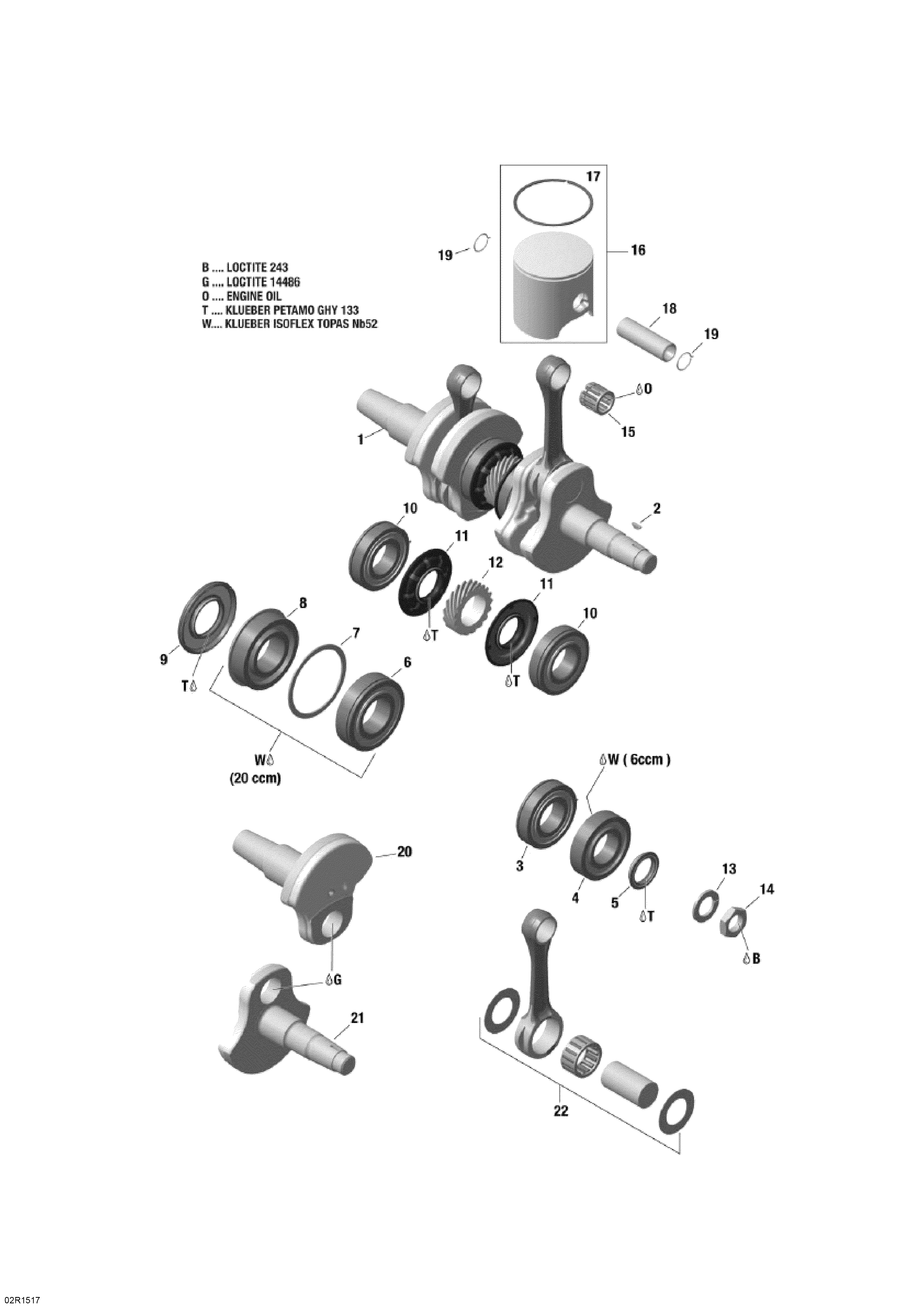

01- Crankshaft And Pistons для BRP Lynx Xtrim Commander 800R E-TEC - 2015

№

Артикул

Название
1

420893480 Crankshaft Ass?y. Includes 1 To 12

Crankshaft Ass?y. Includes 1 To 12

775 600 ₽
2

420246015 Woodruff Key

Woodruff Key

1 040 ₽
3

420832175 Ball Bearing

Ball Bearing

8 620 ₽
4

420832575 Ball Bearing

Ball Bearing

8 480 ₽
5

420931795 Oil Seal. Included In Gasket Kit

Oil Seal. Included In Gasket Kit

3 110 ₽
6

420832602 Ball Bearing

Ball Bearing

8 950 ₽
7

420926190 Washer

Washer

3 990 ₽
8

420832702 Ball Bearing

Ball Bearing

15 160 ₽
9

420931284 Oil Seal. Included In Gasket Kit

Oil Seal. Included In Gasket Kit

14 210 ₽
10

420832175 Ball Bearing

Ball Bearing

8 620 ₽
11

420931455 Oil Seal. Included In Gasket Kit

Oil Seal. Included In Gasket Kit

5 240 ₽
12

420834565 Central Gear

Central Gear

16 360 ₽
13

420945759 Lock Washer, 22 mm

Lock Washer, 22 mm

660 ₽
14

420842239 Hex. Nut, M22 X 1.5. Tightening Torque 120-130 Nm

Hex. Nut, M22 X 1.5. Tightening Torque 120-130 Nm

1 610 ₽
15

420832030 Needle Bearing

Needle Bearing

5 240 ₽
16

420893436 Piston Ass'y, 81.852 mm. Includes 16 To 17

Piston Ass'y, 81.852 mm. Includes 16 To 17

21 560 ₽
17

420815416 Semi-Trapez Ring

Semi-Trapez Ring

27 270 ₽
18

420916480 Piston Pin

Piston Pin

6 310 ₽
19

420845467 Piston Circlip. Included In Gasket Kit

Piston Circlip. Included In Gasket Kit

2 410 ₽
22

420892568 Rod Repair Kit, MAG Side

Rod Repair Kit, MAG Side

53 710 ₽
22

420892569 Rod Repair Kit, PTO Side

Rod Repair Kit, PTO Side

29 670 ₽
B

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml

2 760 ₽
G

619600012 Loctite 648, 10 ml

Loctite 648, 10 ml

8 390 ₽
T

619600023 Grease, 400g

Grease, 400g

11 160 ₽
W

619600026 Isoflex Grease, 400g

Isoflex Grease, 400g

26 340 ₽
