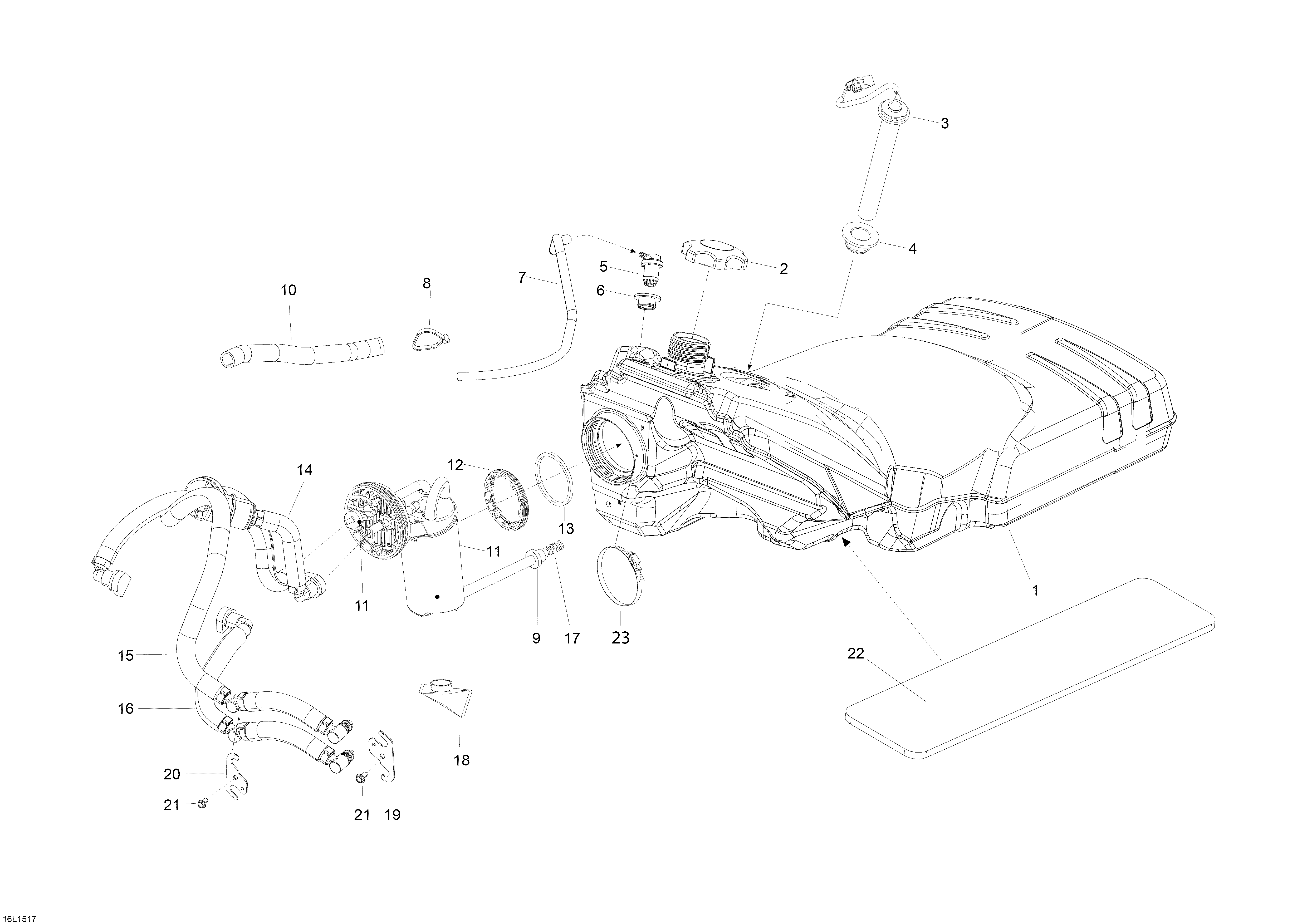

02- Fuel System для BRP Lynx Xtrim Commander 800R E-TEC - 2015
-
№АртикулНазвание
-
1513033635 Fuel tankFuel tank
-
2513033723 CapCap
-
3513033538 Fuel sensorFuel sensor
-
4293720058 GrommetGrommet
-
5513033188 Check valveCheck valve
-
6513033596 GrommetGrommet
-
7415080200 HoseHose
-
8414115200 Tie rapTie rap
-
9293300184 GrommetGrommet
-
10415080000 Protector tubeProtector tube
-
11513033643 Fuel pump ass'yFuel pump ass'y
-
12513033180 RingRing
-
13513033334 GasketGasket
-
14513033560 Hose ass'y (incl. fuel filter)Hose ass'y (incl. fuel filter)
-
15513033631 Hose ass'y upper (incl. press. regulator)Hose ass'y upper (incl. press. regulator)
-
16513033594 Hose ass'y lowerHose ass'y lower
-
17414872100 Fuel filter (in tank, fuel line)Fuel filter (in tank, fuel line)
-
18415129451 Fuel filter (in tank, fuel pump)Fuel filter (in tank, fuel pump)
-
19513033593 Bracket LHBracket LH
-
20513033542 Bracket RHBracket RH
-
21207551044 ScrewScrew
-
22513033640 Insulat. FoamInsulat. Foam
-
23513033628 ClampClamp
