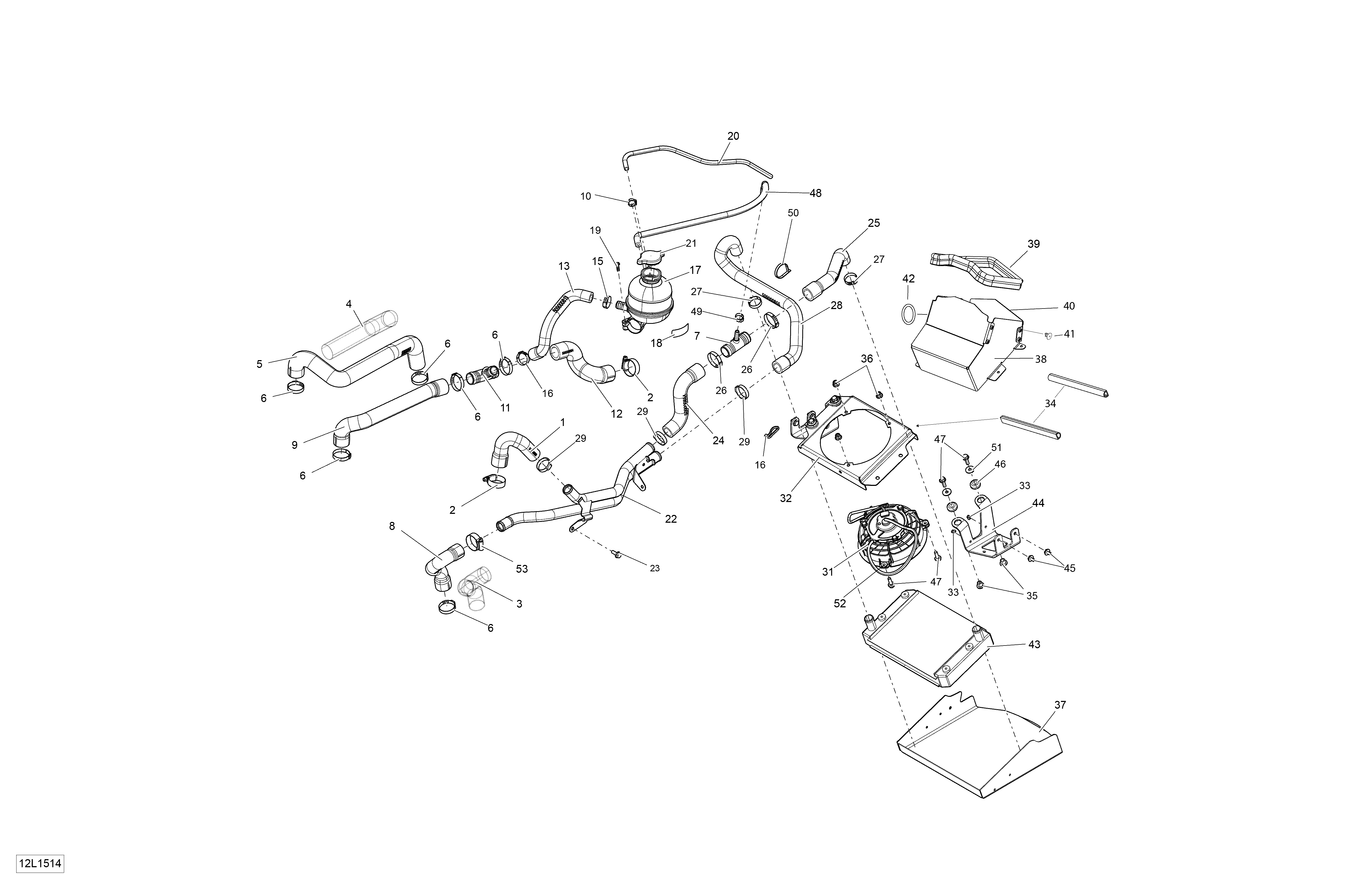

01- Cooling System для BRP Lynx Xtrim SC 900 ACE - 2015
-
№АртикулНазвание
-
1509000858 HOSE-OUTLET ENHOSE-OUTLET EN
-
2509000443 GEAR CLAMPGEAR CLAMP
-
3509000513 PROTECTOR TUBEPROTECTOR TUBE
-
4509000513 PROTECTOR TUBEPROTECTOR TUBE
-
5509000859 RADIATOR HOSERADIATOR HOSE
-
6509000529 CRIMP CLAMPCRIMP CLAMP
-
7509000510 T-FITTINGT-FITTING
-
8509000888 RADIATOR HOSERADIATOR HOSE
-
9509000697 RADIATOR HOSERADIATOR HOSE
-
10293650025 CRIMP CLAMPCRIMP CLAMP
-
11509000372 T-FITTINGT-FITTING
-
12509000864 HOSE-RADIATORHOSE-RADIATOR
-
13509000811 HOSEHOSE
-
15509000442 CRIMP CLAMPCRIMP CLAMP
-
16293650099 CRIMP CLAMPCRIMP CLAMP
-
17509000875 TANK-COOLANTTANK-COOLANT
-
18516005904 DECALDECAL
-
19241151640 SCREW-PT.HEX.FLANGE K50 X 16SCREW-PT.HEX.FLANGE K50 X 16
-
20509000775 HOSEHOSE
-
21509000180 PRESSURE CAPPRESSURE CAP
-
22509000800 WATER PIPEWATER PIPE
-
23207561634 SCREW-HEX.FLANGE DIN.6921 S.GRIPSCREW-HEX.FLANGE DIN.6921 S.GRIP
-
24509000854 HOSE-RADIATORHOSE-RADIATOR
-
25509000862 HOSE-RADIATORHOSE-RADIATOR
-
26509000162 CLAMP-GEARCLAMP-GEAR
-
27293650099 CRIMP CLAMPCRIMP CLAMP
-
28509000855 HOSE-RADIATORHOSE-RADIATOR
-
29293650141 CRIMP CLAMPCRIMP CLAMP
-
30414115200 TIE-RAP 188MMTIE-RAP 188MM
-
31709200230 FANFAN
-
32509000928 FAN SUPPORTFAN SUPPORT
-
33390909200 RIVET AVEXRIVET AVEX
-
34509000823 D- SEAL 12 X15D- SEAL 12 X15
-
35293900100 BUSHINGBUSHING
-
36233261414 NUT-FLANGE ELASTIC DIN.6926NUT-FLANGE ELASTIC DIN.6926
-
37509000893 AIR DEFLECTORAIR DEFLECTOR
-
38509000899 AIR OUT DEFLECTORAIR OUT DEFLECTOR
-
39293250047 SEAL-NEOPRENESEAL-NEOPRENE
-
40509000929 AIR OUT DEFLECTOR PLATEAIR OUT DEFLECTOR PLATE
-
41390909200 RIVET AVEXRIVET AVEX
-
42293720106 GROMMET 30X24X2GROMMET 30X24X2
-
43509000488 RADIATORRADIATOR
-
44509000889 SUPPORT RHSUPPORT RH
-
44509000890 SUPPORT LHSUPPORT LH
-
45250000574 SCREW-HEX.FLANGE LINDLOCK M6 X 12SCREW-HEX.FLANGE LINDLOCK M6 X 12
-
46293720053 GROMMETGROMMET
-
47207562034 SCREW-HEX.FLANGE DIN.6921 S.GRIPSCREW-HEX.FLANGE DIN.6921 S.GRIP
-
48509000860 BREATHER HOSEBREATHER HOSE
-
49293650047 CRIMP CLAMPCRIMP CLAMP
-
50414115200 TIE-RAP 188MMTIE-RAP 188MM
-
51250000082 WASHER-FLAT YICWASHER-FLAT YIC
-
52605453745 BUSHINGBUSHING
-
53509000735 Crimp clampCrimp clamp
