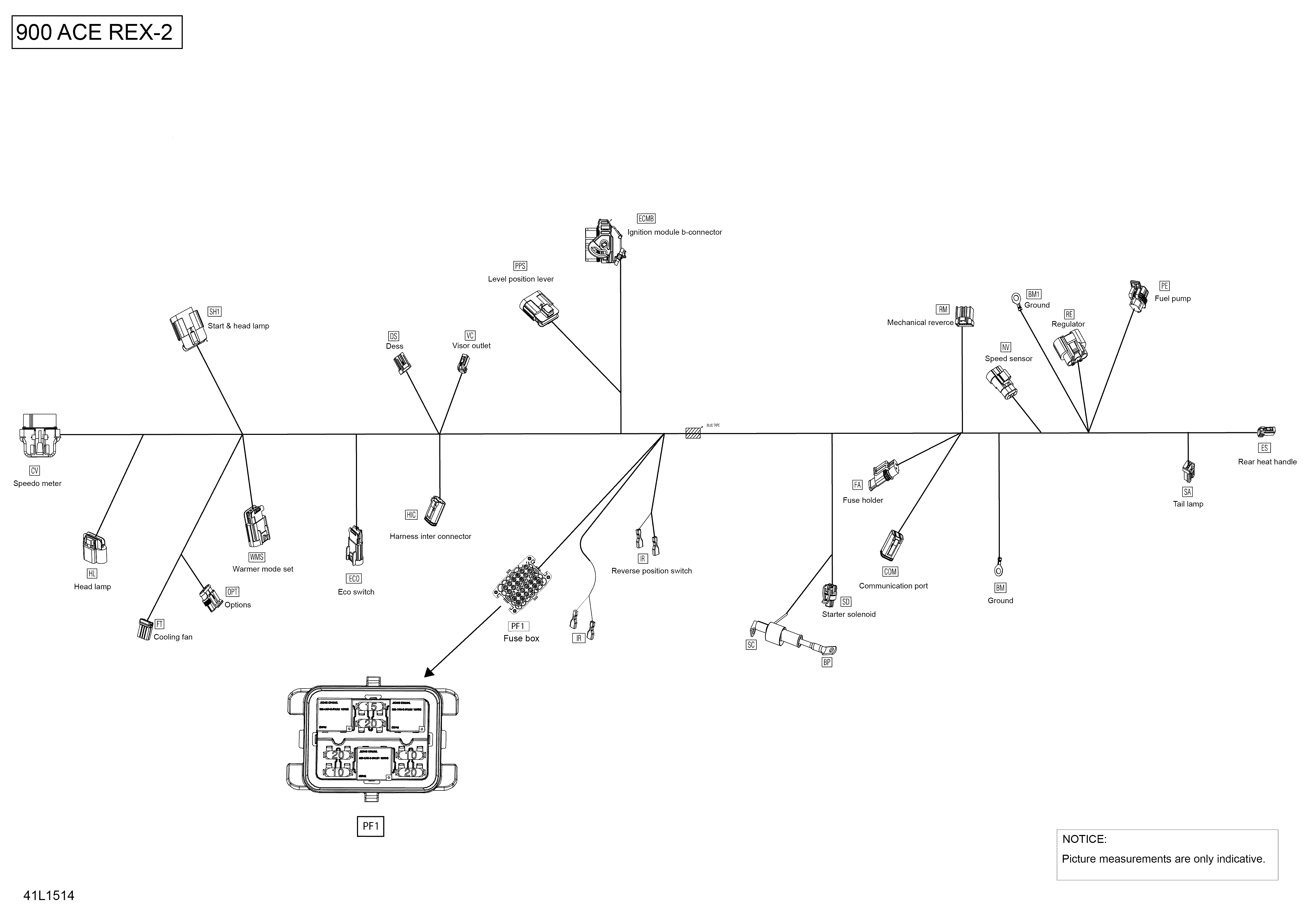

10- Electrical Harness для BRP Lynx Xtrim SC 900 ACE - 2015
-
№АртикулНазвание
-
1515177796 Main Harness Ass'yMain Harness Ass'y
-
XXX409902000 Tubing 12 mmTubing 12 mm
-
XXX515175442 Tubing 6 mmTubing 6 mm
-
XXX409901700 Tubing 9 mmTubing 9 mm
-
XXX409901800 Tubing 13 mmTubing 13 mm
-
XXX409901600 Tubing 19 mmTubing 19 mm
-
BM1278000992 Open BarrelOpen Barrel
-
BM278000992 Open BarrelOpen Barrel
-
BP278000992 Open BarrelOpen Barrel
-
CM409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
CM515176621 Wire SealWire Seal
-
CM278002307 Female TerminalFemale Terminal
-
CM293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
COM710001540 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COM293000052 Sealing CapSealing Cap
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV515175802 Retainer BlockRetainer Block
-
CV515175812 PlugPlug
-
CV710000399 Female HousingFemale Housing
-
CV515175803 Wire SealWire Seal
-
CV515175806 Female TerminalFemale Terminal
-
CV710001131 Female TerminalFemale Terminal
-
DS515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
DS515175231 Female TerminalFemale Terminal
-
ECO710002593 HousingHousing
-
ECO710001233 SealSeal
-
ECO710001224 TerminalTerminal
-
ECMB710001591 CoverCover
-
ECMB710001588 Molex Housing, 48 CircuitsMolex Housing, 48 Circuits
-
ECMB710001592 PlugPlug
-
ECMB710001589 Female TerminalFemale Terminal
-
ECMB710001593 PlugPlug
-
ECMB710001727 Female TerminalFemale Terminal
-
ES515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
ES515175231 Female TerminalFemale Terminal
-
ES293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
FA710001613 FuseFuse
-
FA278001325 Fuse holderFuse holder
-
FA710000357 Female terminalFemale terminal
-
FT515175845 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
FT515175231 Female TerminalFemale Terminal
-
HIC515175672 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
HIC515175677 Male wedge, 4 CircuitsMale wedge, 4 Circuits
-
HL515177296 Female housingFemale housing
-
HL710001225 CapCap
-
HL710001332 Seal wireSeal wire
-
HL710002228 TerminalTerminal
-
IR515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
IR515175231 Female TerminalFemale Terminal
-
NE515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
NE515175232 Male TerminalMale Terminal
-
NV710000992 ClipClip
-
NV710000568 HousingHousing
-
NV515176621 Wire SealWire Seal
-
NV515176164 Male TerminalMale Terminal
-
OPT409209600 Female housing, 3 circuitsFemale housing, 3 circuits
-
OPT515176621 Wire SealWire Seal
-
OPT278002307 Female terminalFemale terminal
-
PA515176908 Female HousingFemale Housing
-
PA515176909 TerminalTerminal
-
PB515176908 Female HousingFemale Housing
-
PB515176909 TerminalTerminal
-
PE710001132 HousingHousing
-
PE710001133 LockLock
-
PE409013700 PlugPlug
-
PE710000643 SealSeal
-
PE278001481 Female TerminalFemale Terminal
-
PF1278002824 Fuse Box caseFuse Box case
-
PF1710000742 Little Fuse, 5 ALittle Fuse, 5 A
-
PF1710000744 Little Fuse, 10 ALittle Fuse, 10 A
-
PF1710000744 Little Fuse, 10 ALittle Fuse, 10 A
-
PF1710000746 Little Fuse, 20 ALittle Fuse, 20 A
-
PF1710000745 Little Fuse, 15 ALittle Fuse, 15 A
-
PF1710000747 Little Fuse, 30 ALittle Fuse, 30 A
-
PF1710001778 RelayRelay
-
PF1278000218 Wire SealWire Seal
-
PF1278001065 Wire SealWire Seal
-
PF1710000890 Female TerminalFemale Terminal
-
PF1710000918 Female TerminalFemale Terminal
-
PPS710000992 ClipClip
-
PPS515177150 Housing connectorHousing connector
-
PPS710001233 SealSeal
-
PPS710001224 TerminalTerminal
-
RE710000879 Housing, 3 CircuitsHousing, 3 Circuits
-
RE710000882 CapCap
-
RE710000881 SealSeal
-
RE710000877 TerminalTerminal
-
RM515175543 Female terminal housing, 6 circuitsFemale terminal housing, 6 circuits
-
RM515175231 Female terminalFemale terminal
-
SA515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SA515175231 Female TerminalFemale Terminal
-
SB710000568 HousingHousing
-
SB515176621 Wire SealWire Seal
-
SB515176164 Male TerminalMale Terminal
-
SC710000495 Protector CapProtector Cap
-
SD515177192 Female housingFemale housing
-
SD710001332 Seal wireSeal wire
-
SD710000925 TerminalTerminal
-
SH1710001929 HousingHousing
-
SH1710001225 CapCap
-
SH1710001223 SealSeal
-
SH1710001332 Seal wireSeal wire
-
SH1710001224 TerminalTerminal
-
SH1710001223 TerminalTerminal
-
VC515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
VC515175231 Female TerminalFemale Terminal
-
WMS710001927 HousingHousing
-
WMS710001233 SealSeal
-
WMS710001332 Seal wireSeal wire
-
WMS710001223 TerminalTerminal
-
WMS710001224 TerminalTerminal
