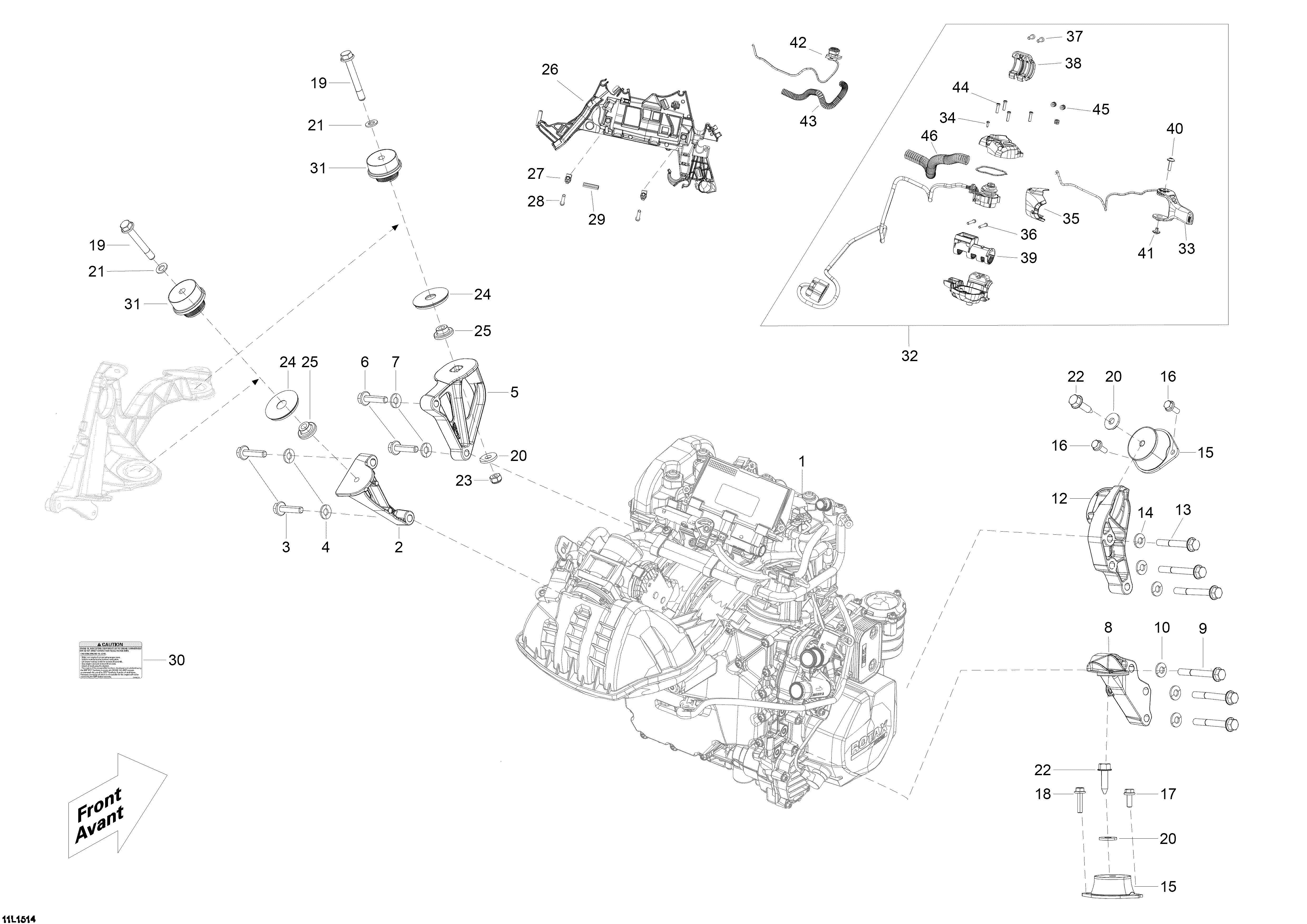

01- Engine And Engine Support для BRP Lynx Xtrim SC 900 ACE - 2015
-
№АртикулНазвание
-
2512060660 SupportSupport
-
3207583586 Hex. Flanged Screw M8 x 35, Scotch GripHex. Flanged Screw M8 x 35, Scotch Grip
-
4234281474 Conical Spring Washer M8Conical Spring Washer M8
-
5512060661 Front Support, PTOFront Support, PTO
-
6207583586 Hex. Flanged Screw M8 x 35, Scotch GripHex. Flanged Screw M8 x 35, Scotch Grip
-
7234281474 Conical Spring Washer M8Conical Spring Washer M8
-
8512060894 Rear Support, MAGRear Support, MAG
-
9207584544 Hex. Flanged Screw M8 x 45, Scotch GripHex. Flanged Screw M8 x 45, Scotch Grip
-
10250200157 Conical Spring Washer M8Conical Spring Washer M8
-
12512060663 Front Support, MAGFront Support, MAG
-
13207584544 Hex. Flanged Screw M8 x 45, Scotch GripHex. Flanged Screw M8 x 45, Scotch Grip
-
14250200157 Conical Spring Washer M8Conical Spring Washer M8
-
15512060729 Rubber MountRubber Mount
-
16207561644 Hex. Flanged Screw M6 x 16, Scotch GripHex. Flanged Screw M6 x 16, Scotch Grip
-
17207561644 Hex. Flanged Screw M6 x 16, Scotch GripHex. Flanged Screw M6 x 16, Scotch Grip
-
18207562534 Hex. Flanged Screw M6 x 25, Scotch GripHex. Flanged Screw M6 x 25, Scotch Grip
-
19207586044 Hex. Flanged Screw M8 x 60, Scotch GripHex. Flanged Screw M8 x 60, Scotch Grip
-
20503183200 Washer, YellowWasher, Yellow
-
21250200008 Flat Washer 8 mmFlat Washer 8 mm
-
22250000639 Cone Bolt, M8 x 25Cone Bolt, M8 x 25
-
23232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
24512060826 StopperStopper
-
25512060285 SpacerSpacer
-
26512060994 Module supportModule support
-
27250000079 Panel nut M5 x 0,8Panel nut M5 x 0,8
-
28207552044 Hex. Flanged Screw M5 X 20, Scotch GripHex. Flanged Screw M5 X 20, Scotch Grip
-
29271001530 Protection trimProtection trim
-
30516005521 Caution Decal, Checking Engine Oil LevelCaution Decal, Checking Engine Oil Level
-
31512060295 Rubber MountRubber Mount
-
32512061017 Throttle housing assyThrottle housing assy
-
34250000623 SCREW-TAPP.PAN.HD.TORX ISO 14585CSCREW-TAPP.PAN.HD.TORX ISO 14585C
-
35512060862 CAPCAP
-
36250000263 Torx screw #8-18Torx screw #8-18
-
37250000632 Torx screw M5 x 14Torx screw M5 x 14
-
38512060987 Front housingFront housing
-
39512060844 SupportSupport
-
40250000528 Torx screw M5 x 20Torx screw M5 x 20
-
41250000624 ScrewScrew
-
42515177362 Kill switchKill switch
-
44250000671 ScrewScrew
-
45293250307 SHAFT SEALSHAFT SEAL
-
46515177716 TubingTubing
