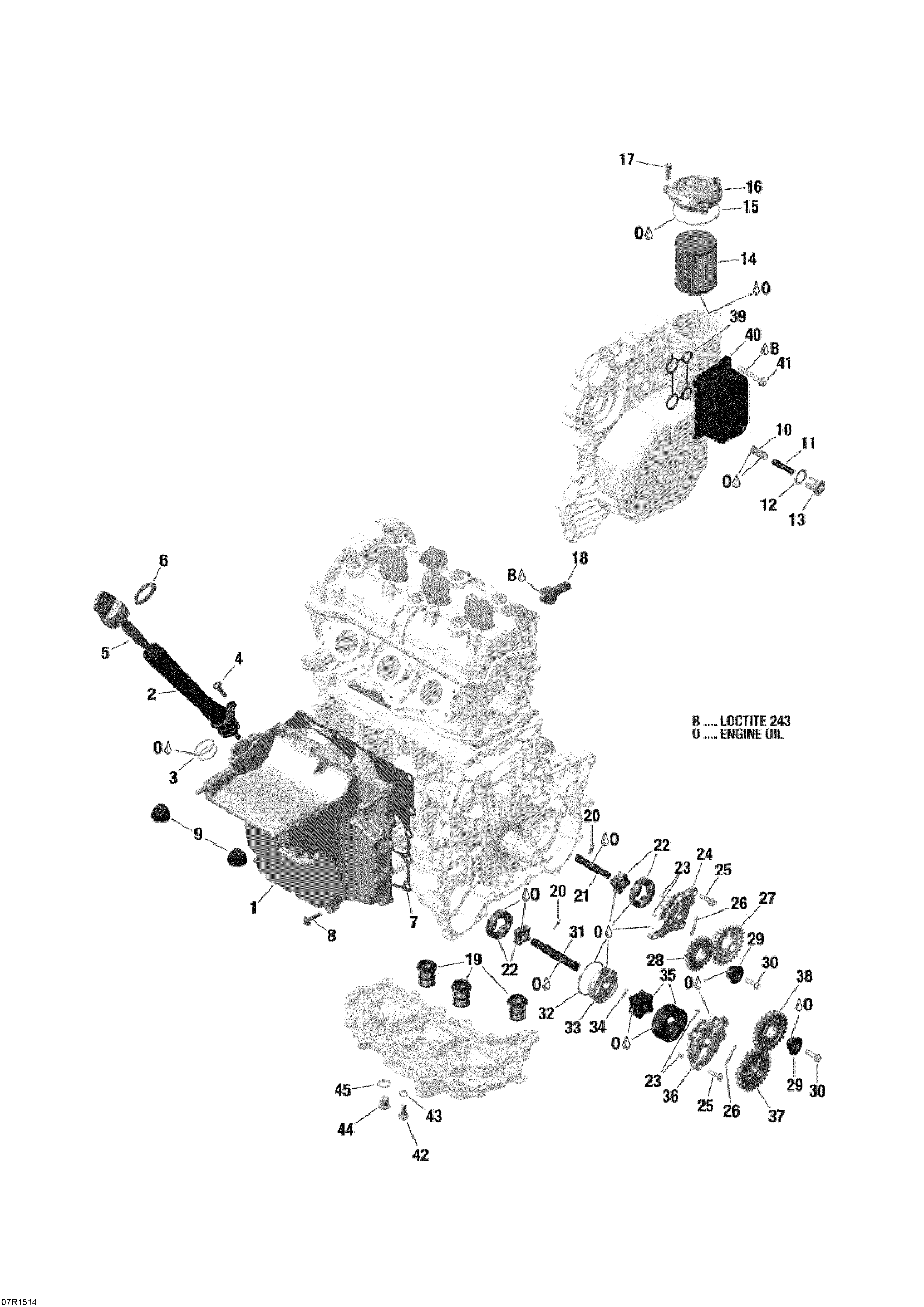

02- Engine Lubrication для BRP Lynx Xtrim SC 900 ACE - 2015

№

Артикул

Название
1

420656700 Oil Sump Cover

Oil Sump Cover

37 350 ₽
2

420656900 Oil Filler Tube

Oil Filler Tube

690 ₽
3

420430440 O Ring. Included In Gasket Kit

O Ring. Included In Gasket Kit

340 ₽
4

420441386 Torx TR Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

Torx TR Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

550 ₽
5

420856667 Oil Dipstick. Includes 5 To 6

Oil Dipstick. Includes 5 To 6

4 130 ₽
6

420431790 Gasket Ring. Included In Gasket Kit

Gasket Ring. Included In Gasket Kit

3 000 ₽
7

420431840 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

2 020 ₽
8

420841549 Torx TR Screw M6 x 25. Tightening Torque 9 Nm +/- 12%. RETRY TORQUE 11NM +/- 12%

Torx TR Screw M6 x 25. Tightening Torque 9 Nm +/- 12%. RETRY TORQUE 11NM +/- 12%

200 ₽
9

420860150 Rubber Grommet

Rubber Grommet

1 890 ₽
10

420256517 Pressure Regulating Piston

Pressure Regulating Piston

1 140 ₽
11

420239445 Spring

Spring

6 780 ₽
12

420430622 Sealing Ring. Included In Gasket Kit

Sealing Ring. Included In Gasket Kit

1 540 ₽
13

420441372 Plug Screw M16 x 1,5. Tightening Torque 17 Nm +/- 12%

Plug Screw M16 x 1,5. Tightening Torque 17 Nm +/- 12%

3 090 ₽
14

420956123 Oil Filter

Oil Filter

8 610 ₽
15

420650500 O Ring. Included In Gasket Kit

O Ring. Included In Gasket Kit

2 210 ₽
16

420612132 Oil Filter Cover

Oil Filter Cover

3 280 ₽
17

420440207 Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

1 120 ₽
18

420256915 Oil Pressure Switch M10 x 1. Tightening Torque 12 Nm +/- 12%

Oil Pressure Switch M10 x 1. Tightening Torque 12 Nm +/- 12%

3 780 ₽
19

420656680 Oil Sieve

Oil Sieve

3 780 ₽
20

420232731 Needle Pin

Needle Pin

1 450 ₽
21

420820120 Oil Pump Shaft

Oil Pump Shaft

4 130 ₽
22

420256348 Rotor Set

Rotor Set

38 220 ₽
23

420929075 Needle Pin

Needle Pin

740 ₽
24

420911080 Oil Pump Cover

Oil Pump Cover

10 050 ₽
25

420440207 Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

1 120 ₽
26

420232431 Needle Pin

Needle Pin

1 690 ₽
27

420834882 Oil Pump Gear 29 T

Oil Pump Gear 29 T

990 ₽
28

420835054 Intermediate Gear 22 T

Intermediate Gear 22 T

1 710 ₽
29

420947394 Graduated Spacer

Graduated Spacer

8 720 ₽
30

420440207 Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

Hex./Torx Flange Screw M6 x 20. Tightening Torque 9 Nm +/- 12%

1 120 ₽
31

420837916 Oil Pump Shaft

Oil Pump Shaft

8 720 ₽
32

420631830 O Ring. Included In Gasket Kit

O Ring. Included In Gasket Kit

550 ₽
33

420611950 Oil Pump Cover

Oil Pump Cover

5 160 ₽
34

420632220 Needle Pin

Needle Pin

1 540 ₽
35

420256836 Rotor Set

Rotor Set

25 130 ₽
36

420611980 Oil Pump Cover

Oil Pump Cover

3 910 ₽
37

420834887 Oil Pump Gear 28 T

Oil Pump Gear 28 T

990 ₽
38

420835320 Intermediate Gear 26 T

Intermediate Gear 26 T

1 990 ₽
39

420431870 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

410 ₽
40

420656697 Oil Water Heat Exchanger

Oil Water Heat Exchanger

8 960 ₽
41

420440324 Torx Flange Screw M6 x 45. Tightening Torque 9 Nm +/- 12%

Torx Flange Screw M6 x 45. Tightening Torque 9 Nm +/- 12%

360 ₽
42

420440852 Hex./Torx Flange Screw M8 x 16. Tightening Torque 15 Nm +/- 12%

Hex./Torx Flange Screw M8 x 16. Tightening Torque 15 Nm +/- 12%

1 450 ₽
43

420950141 Sealing Ring. Included In Gasket Kit

Sealing Ring. Included In Gasket Kit

790 ₽
44

420241700 Plug Screw M12 x 1,5. Tightening Torque 15 Nm +/- 12%

Plug Screw M12 x 1,5. Tightening Torque 15 Nm +/- 12%

1 130 ₽
45

420250640 Sealing Ring. Included In Gasket Kit

Sealing Ring. Included In Gasket Kit

540 ₽
B

293800060 Loctite 243

Loctite 243

2 760 ₽
