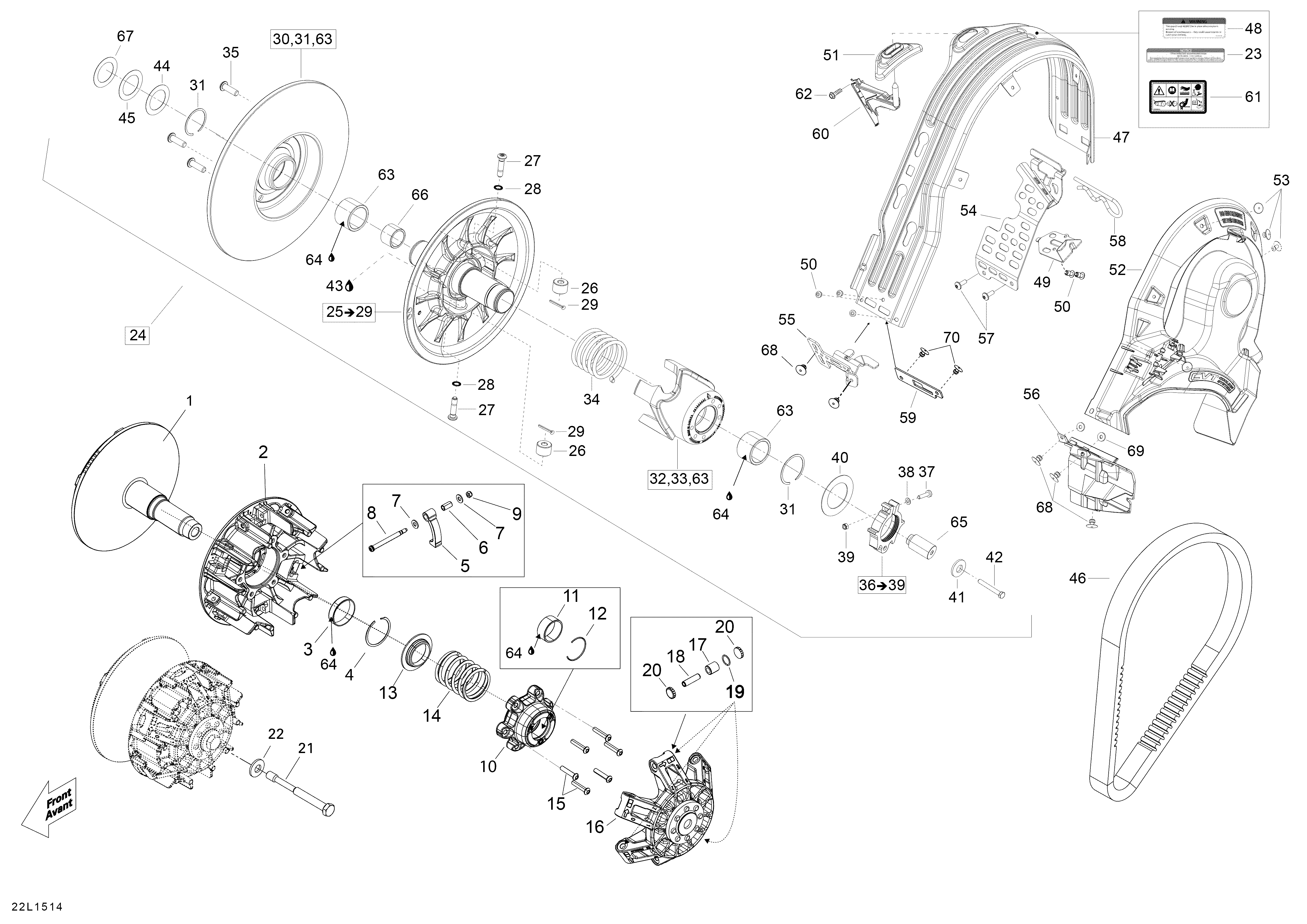

05- Pulley System для BRP Lynx Xtrim SC 900 ACE - 2015
-
№АртикулНазвание
-
1417223867 FLANGE FIX ASSYFLANGE FIX ASSY
-
2417223763 FLANGE-SLID.ASSYFLANGE-SLID.ASSY
-
3417222758 BushingBushing
-
4293370037 CirclipCirclip
-
5417223679 RAMP 735 assy. Includes 5-6RAMP 735 assy. Includes 5-6
-
7417223660 WASHER-STOPPERWASHER-STOPPER
-
8417223694 AXLE-RAMPAXLE-RAMP
-
9232551414 NUT-STOP ELASTIC DIN.985NUT-STOP ELASTIC DIN.985
-
10417223650 SPRING COVERSPRING COVER
-
12293370065 CirclipCirclip
-
13417223752 SEAT-SPRINGSEAT-SPRING
-
14417223751 CLUTCH SPRING 110-155. 100/155Nm.CLUTCH SPRING 110-155. 100/155Nm.
-
15250000580 SCREW TORX BUTTON HD ISO 7380 S.GRIPSCREW TORX BUTTON HD ISO 7380 S.GRIP
-
16417223865 GOVERNOR CUPGOVERNOR CUP
-
17417223767 ROLLERROLLER
-
18417223257 AXLE ROLLERAXLE ROLLER
-
19293300169 O-RINGO-RING
-
20417223919 SHOE-SLIDERSHOE-SLIDER
-
21417300432 Drive Pulley BoltDrive Pulley Bolt
-
22250200144 Spring Washer 14 mmSpring Washer 14 mm
-
23516005503 Decal Notice, Drive Pulley BoltDecal Notice, Drive Pulley Bolt
-
25417127351 Fixed Flange Ass'yFixed Flange Ass'y
-
26417127016 RollerRoller
-
27417127294 StudStud
-
28250200009 Lock Washer 8mmLock Washer 8mm
-
29250400063 Spring Pin M3 x 30Spring Pin M3 x 30
-
30417127366 Sliding Flange Ass'y. Includes 30,31,63Sliding Flange Ass'y. Includes 30,31,63
-
31293370049 CirclipCirclip
-
32417127327 Cam Ass'y (47/40?). Includes 32, 33, 63Cam Ass'y (47/40?). Includes 32, 33, 63
-
33293370049 CirclipCirclip
-
34417127467 Spring, Red-Red 182-313Spring, Red-Red 182-313
-
35250000283 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
36415129604 Pulley Adjuster Ass'y. Includes 36 To 39Pulley Adjuster Ass'y. Includes 36 To 39
-
37205052544 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
38234051410 Flat Washer M5Flat Washer M5
-
39232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
40417127155 WasherWasher
-
41517302322 Strength WasherStrength Washer
-
42207287544 Hex. Cap Screw M8 x 75Hex. Cap Screw M8 x 75
-
43619600013 Loctite 8151 (Antiseize), 400ml SprayLoctite 8151 (Antiseize), 400ml Spray
-
44417300265 Spacer, 0,9 mm.. (Adjustment Part, Use If Needed)Spacer, 0,9 mm.. (Adjustment Part, Use If Needed)
-
45504112000 Shim, 0,4 mm.. (Adjustment Part, Use If Needed)Shim, 0,4 mm.. (Adjustment Part, Use If Needed)
-
46417300383 Drive BeltDrive Belt
-
47417300382 Belt GuardBelt Guard
-
48516006900 Security Label, Belt GuardSecurity Label, Belt Guard
-
49417300445 StopperStopper
-
50390909200 RivetRivet
-
51417300381 GuideGuide
-
52417300441 CVT air ductCVT air duct
-
53293150103 Pop Rivet 3/16Pop Rivet 3/16
-
54417300448 Belt Guard BracketBelt Guard Bracket
-
55417300423 Front bracketFront bracket
-
56417300430 Front supportFront support
-
57250000145 ScrewScrew
-
58114045200 Hair PinHair Pin
-
59417300421 ReinforcementReinforcement
-
60512060994 SupportSupport
-
61516003919 Warning decalWarning decal
-
62241151640 Screw K50 x 16Screw K50 x 16
-
63417127318 BushingBushing
-
64413703100 Loctite 609Loctite 609
-
65417300452 AxleAxle
-
66417300453 SleeveSleeve
-
67417300252 Spacer, 1,9 mm.Spacer, 1,9 mm.
-
68293150104 RivetRivet
-
69517225900 Flat Washer M5Flat Washer M5
-
70390909100 RivetRivet
