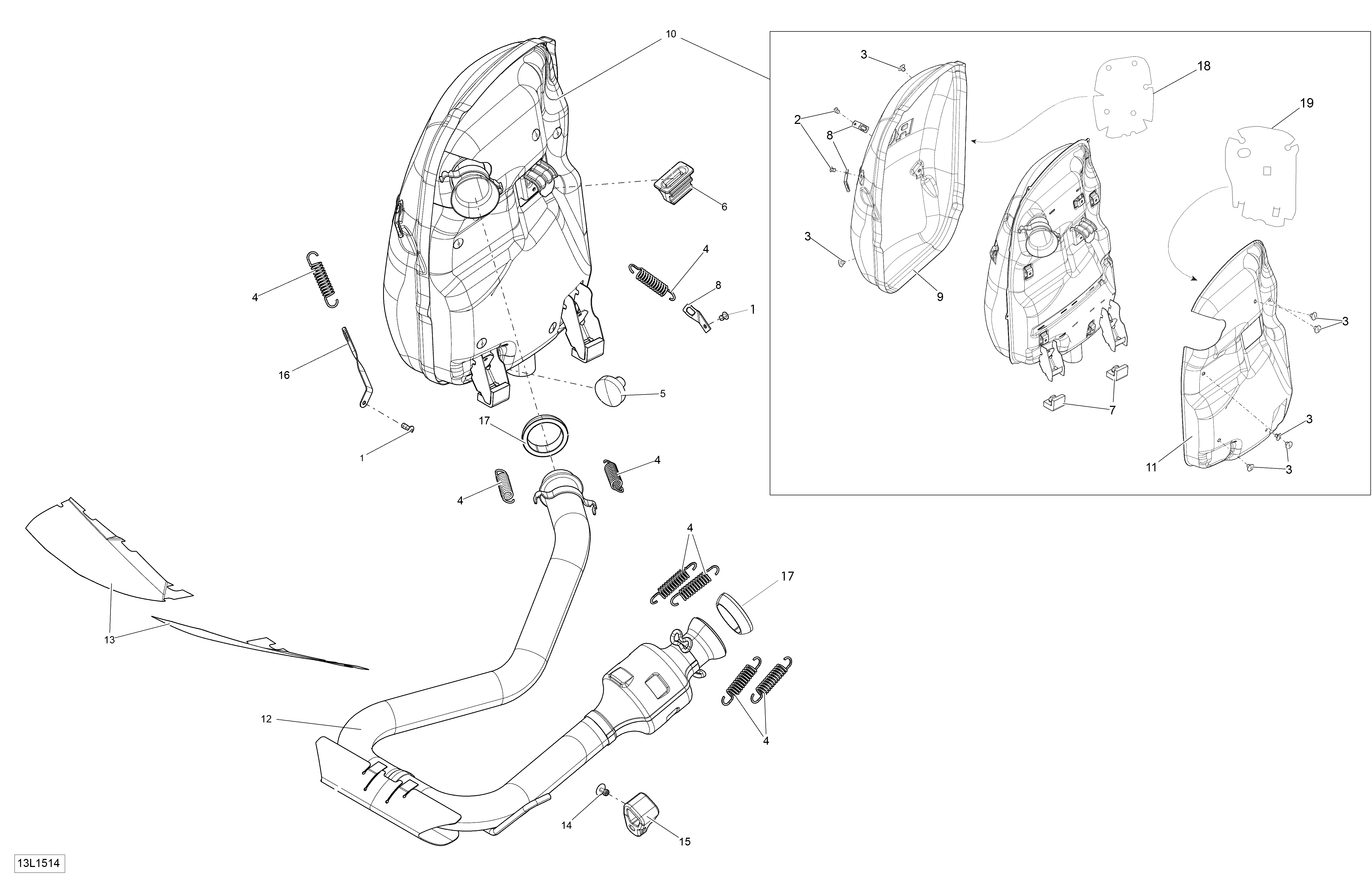

01- Exhaust System для BRP Lynx Xtrim SC 900 ACE - 2015
-
№АртикулНазвание
-
1390909100 Rivet AvexRivet Avex
-
2390909200 Avex RivetAvex Rivet
-
3390910000 Pop Rivet 3/16”Pop Rivet 3/16”
-
4415107100 SpringSpring
-
5514053654 Rubber BumperRubber Bumper
-
6514054346 StopperStopper
-
7514054496 Lower StopperLower Stopper
-
8514054522 Spring BracketSpring Bracket
-
9514054644 RH Heat ShieldRH Heat Shield
-
10514054878 Muffler Ass'yMuffler Ass'y
-
11514054880 LH Heat ShieldLH Heat Shield
-
12514054960 Welded PipeWelded Pipe
-
13514054999 Heat ShieldHeat Shield
-
14293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
15514055012 RubberRubber
-
16514055030 Spring BracketSpring Bracket
-
17707601033 Exhaust GasketExhaust Gasket
-
18514054769 RH Insulating WoolRH Insulating Wool
-
19514054881 LH Insulating WoolLH Insulating Wool
