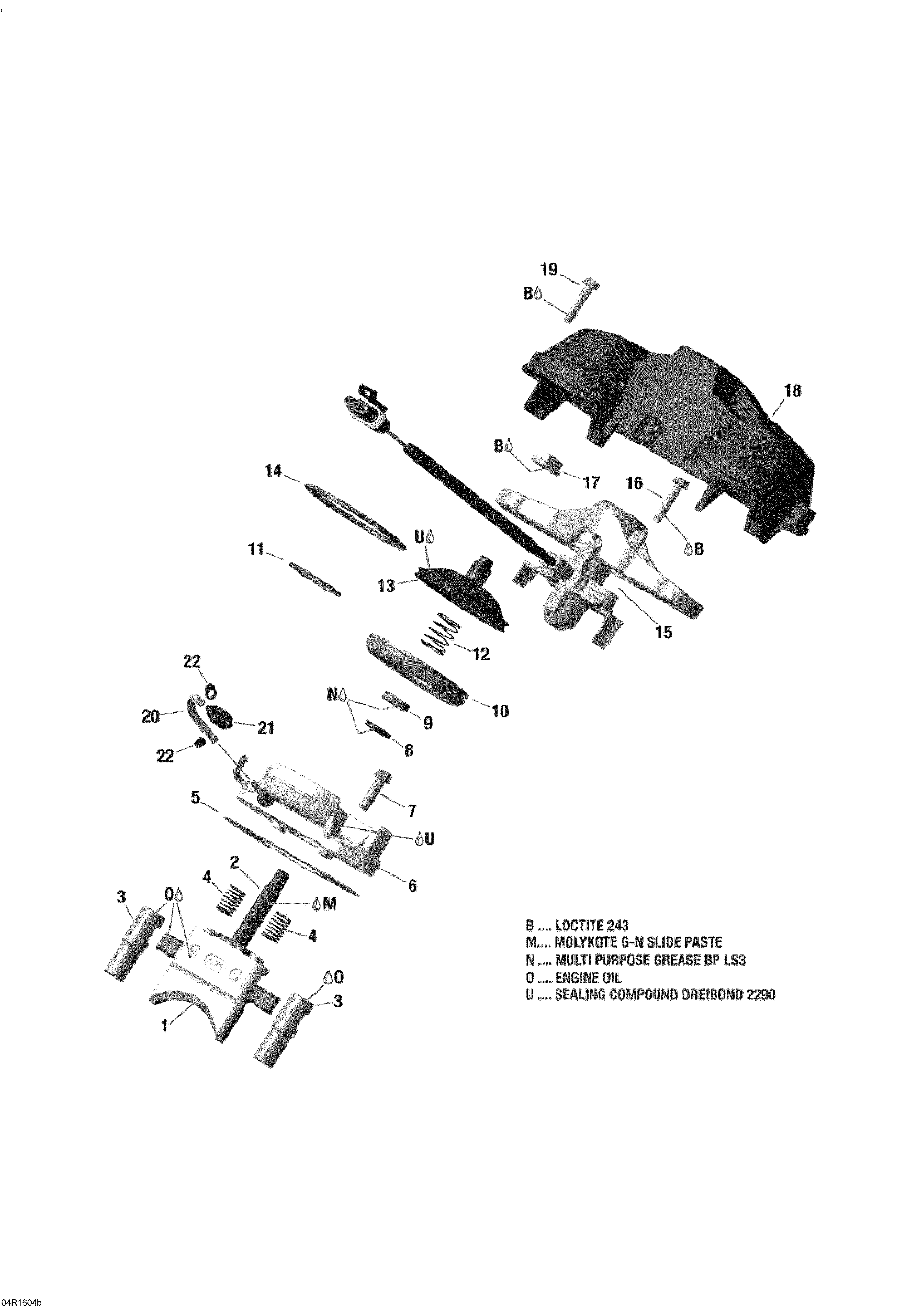

01- RAVE Valve - 800 E-TEC для BRP Lynx 69 YETI (2-Stroke) - 2016
-
№АртикулНазвание
-
1420854900 Upper Exhaust ValveUpper Exhaust Valve
-
2420854904 Lower Exhaust ValveLower Exhaust Valve
-
3420854890 Exhaust ValveExhaust Valve
-
4420238556 SpringSpring
-
5420430032 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
6420854888 Valve HousingValve Housing
-
7420440207 Flange Torx Screw M6 x 20. Tightening Torque 8-10 NmFlange Torx Screw M6 x 20. Tightening Torque 8-10 Nm
-
8420431380 Gasket Ring. Included In Gasket KitGasket Ring. Included In Gasket Kit
-
9420950730 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
10420260725 BellowsBellows
-
11420838255 Hose SpringHose Spring
-
12420238557 SpringSpring
-
13420854442 Valve CoverValve Cover
-
14420939285 Hose SpringHose Spring
-
15420854089 Position SensorPosition Sensor
-
16420841550 Hex. Taptite Screw M5 x 22. Tightening Torque 5-6 NmHex. Taptite Screw M5 x 22. Tightening Torque 5-6 Nm
-
17420942190 Nut M12 x 1.5. Tightening Torque 5-6 NmNut M12 x 1.5. Tightening Torque 5-6 Nm
-
18420910821 Rave CoverRave Cover
-
19420841550 Hex. Taptite Screw M5 x 22. Tightening Torque 5-6 NmHex. Taptite Screw M5 x 22. Tightening Torque 5-6 Nm
-
20414413800 Oil HoseOil Hose
-
21404160200 Check Valve Ass’yCheck Valve Ass’y
-
22420851508 ClampClamp
