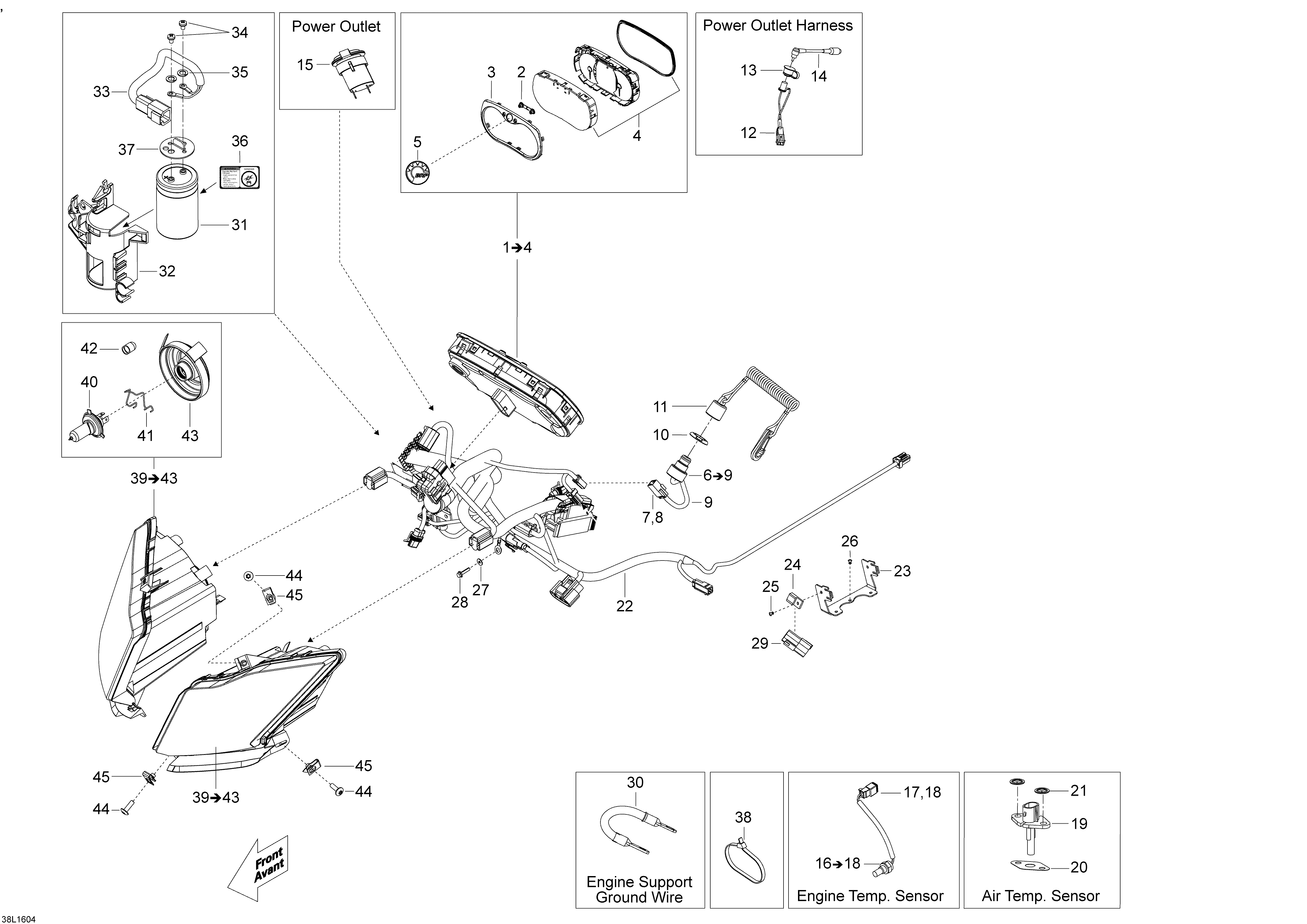

10- Electrical System для BRP Lynx 69 YETI (2-Stroke) - 2016
-
№АртикулНазвание
-
1515177914 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5516006224 BRP LogoBRP Logo
-
6515177249 Dess Switch. Includes 6 To 9Dess Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 Tubing 12mmTubing 12mm
-
10278002963 Safety Switch NutSafety Switch Nut
-
11515178146 DESS CapDESS Cap
-
12515177837 Power Outlet HarnessPower Outlet Harness
-
13572103300 CapCap
-
14515175851 ExtensionExtension
-
15710001248 DC Power OutletDC Power Outlet
-
16515177813 Temperature Sensor. Includes 16 To 18Temperature Sensor. Includes 16 To 18
-
17515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
18278000632 Female TerminalFemale Terminal
-
19515176366 Air Temperature SensorAir Temperature Sensor
-
20508000769 RingRing
-
21389804300 Push NutPush Nut
-
22515177941 Main Harness. Model-600 E-TECMain Harness. Model-600 E-TEC
-
22515177798 Main Harness. Model-800 E-TECMain Harness. Model-800 E-TEC
-
23515177925 Fusebox SupportFusebox Support
-
24270000141 ClipClip
-
25293150037 RivetRivet
-
26390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
27234141601 Lock Washer M4Lock Washer M4
-
28250000741 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
29710003006 Female HousingFemale Housing
-
30515177289 Ground CableGround Cable
-
31515177272 CapacitorCapacitor
-
32515176607 SupportSupport
-
33515176605 HarnessHarness
-
34250000462 Screw 10-32 x 5/16''Screw 10-32 x 5/16''
-
35250200026 Lock WasherLock Washer
-
36516005515 Capacitor DecalCapacitor Decal
-
37515177193 CapCap
-
38414115200 Tie-Rap 180mmTie-Rap 180mm
-
38293750008 Tie-Rap 350mmTie-Rap 350mm
-
38293750001 Tie-Rap 94mmTie-Rap 94mm
-
39517304194 RH Headlamp. Includes 39 To 43RH Headlamp. Includes 39 To 43
-
39517304195 LH Headlamp. Includes 39 To 43LH Headlamp. Includes 39 To 43
-
40515176274 H4 Halogen Bulb (60/55W, 12V)H4 Halogen Bulb (60/55W, 12V)
-
42515176498 CapCap
-
43515176499 CoverCover
-
44250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
45250100113 Panel Nut M6Panel Nut M6
