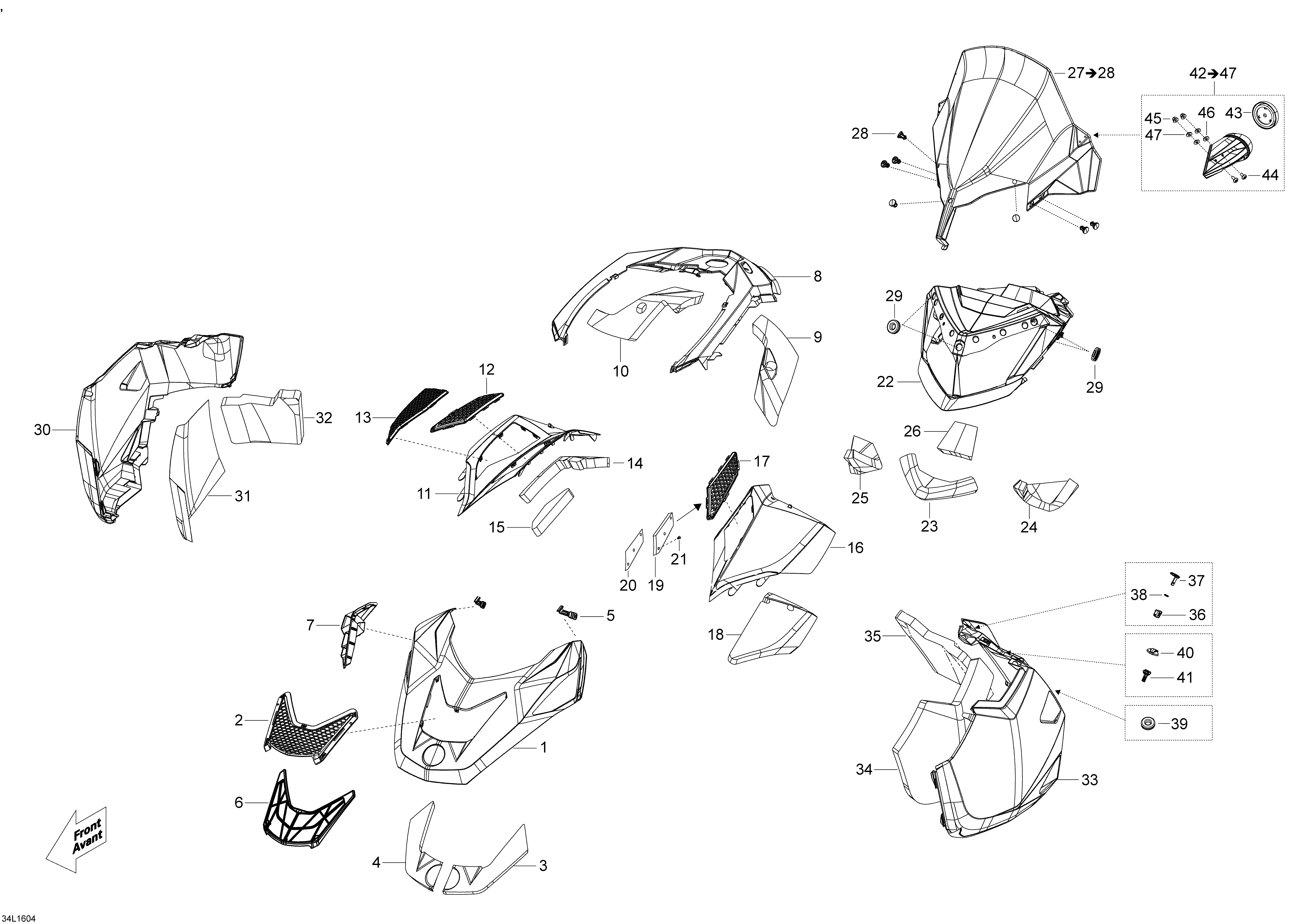

09- Hood And Windshield для BRP Lynx 69 YETI (2-Stroke) - 2016
-
№АртикулНазвание
-
1517305846 Green HoodGreen Hood
-
2517304843 Hood GrillHood Grill
-
3517304330 InsulatorInsulator
-
4517304214 InsulatorInsulator
-
5517304289 LatchLatch
-
6517305553 Hood Grill With Mesh. Model-800 E-TECHood Grill With Mesh. Model-800 E-TEC
-
7517304155 Scoop GrillScoop Grill
-
8517305220 Black ConsoleBlack Console
-
9517305644 InsulatorInsulator
-
10517304318 InsulatorInsulator
-
11517305848 Green RH Side Access PanelGreen RH Side Access Panel
-
12517304015 RH Access Panel GrillRH Access Panel Grill
-
13517304016 RH Lower Access Panel GrillRH Lower Access Panel Grill
-
14517304311 InsulatorInsulator
-
15517305987 InsulatorInsulator
-
16517305850 Green LH Side Access PanelGreen LH Side Access Panel
-
17517303893 LH Access Panel GrillLH Access Panel Grill
-
18517304313 InsulatorInsulator
-
19517305311 InsulatorInsulator
-
20502007312 Grill PlateGrill Plate
-
21414644300 DartDart
-
22517304272 Indicator SupportIndicator Support
-
23517304314 InsulatorInsulator
-
24517304315 InsulatorInsulator
-
25517304316 InsulatorInsulator
-
26517304319 InsulatorInsulator
-
27860201000 Windshield (580) Ass'y. Includes 27 To 28Windshield (580) Ass'y. Includes 27 To 28
-
28517304744 KnobKnob
-
29517303756 GrommetGrommet
-
30517304328 Black RH Side PanelBlack RH Side Panel
-
31517304709 RH FoamRH Foam
-
32517304310 RH Foam RearRH Foam Rear
-
33517304329 Black LH Side PanelBlack LH Side Panel
-
34517304707 LH FoamLH Foam
-
35517304309 LH Foam RearLH Foam Rear
-
36517304297 Quarter-Turn Handle FastenerQuarter-Turn Handle Fastener
-
37517304296 Quarter-Turn HandleQuarter-Turn Handle
-
38517304538 Locking PlateLocking Plate
-
39517303756 GrommetGrommet
-
40517304075 End PieceEnd Piece
-
41517306057 Latch-PanelLatch-Panel
-
42517305787 RH/LH Mirror Ass'y. Includes 42 To 47RH/LH Mirror Ass'y. Includes 42 To 47
-
44250000721 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
45232361493 Hex. Domed Nut M6Hex. Domed Nut M6
-
46250200024 Rubber Washer M5Rubber Washer M5
-
4720117 WasherWasher
