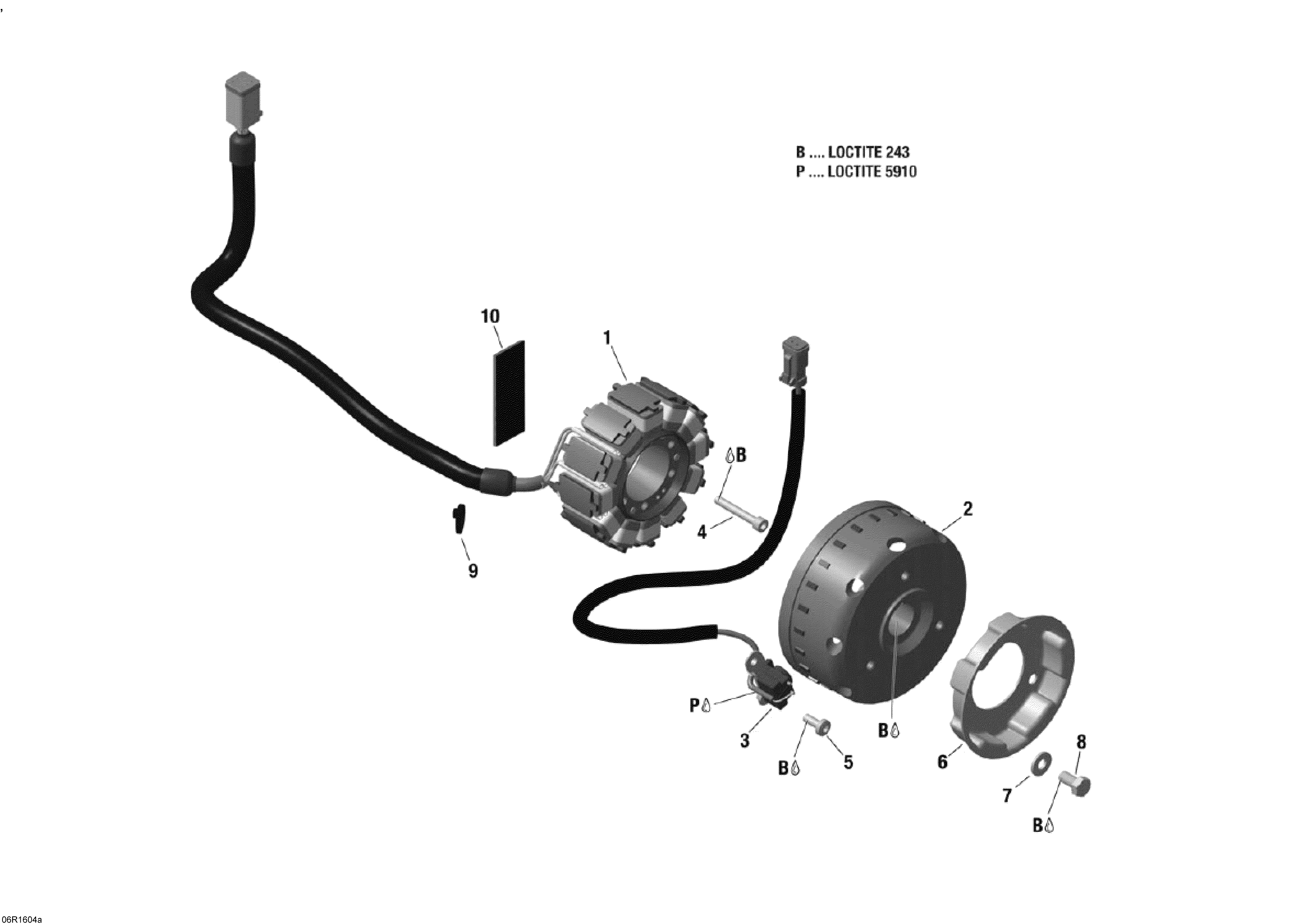

03- Magneto - 600 E-TEC для BRP Lynx 69 YETI (2-Stroke) - 2016
-
№АртикулНазвание
-
1420665435 Stator Ass'y (1300W, 55V)Stator Ass'y (1300W, 55V)
-
2420665442 FlywheelFlywheel
-
3410922969 Pick-Up Ass'yPick-Up Ass'y
-
4420241956 Allen Screw M6 x 40. Tightening Torque 8-10 NmAllen Screw M6 x 40. Tightening Torque 8-10 Nm
-
5420640324 Hex. Taptite Screw M6 x 16. Tightening Torque 7-8 NmHex. Taptite Screw M6 x 16. Tightening Torque 7-8 Nm
-
6420852532 Starting Pulley. (Manual Start)Starting Pulley. (Manual Start)
-
7420827405 Flat Washer. (Manual Start)Flat Washer. (Manual Start)
-
8207181644 Hex. Screw M8 x 16. (Manual Start), Tightening Torque 20-22 NmHex. Screw M8 x 16. (Manual Start), Tightening Torque 20-22 Nm
-
9420866714 Tie RapTie Rap
-
10420201360 Pad With AdhesivePad With Adhesive
