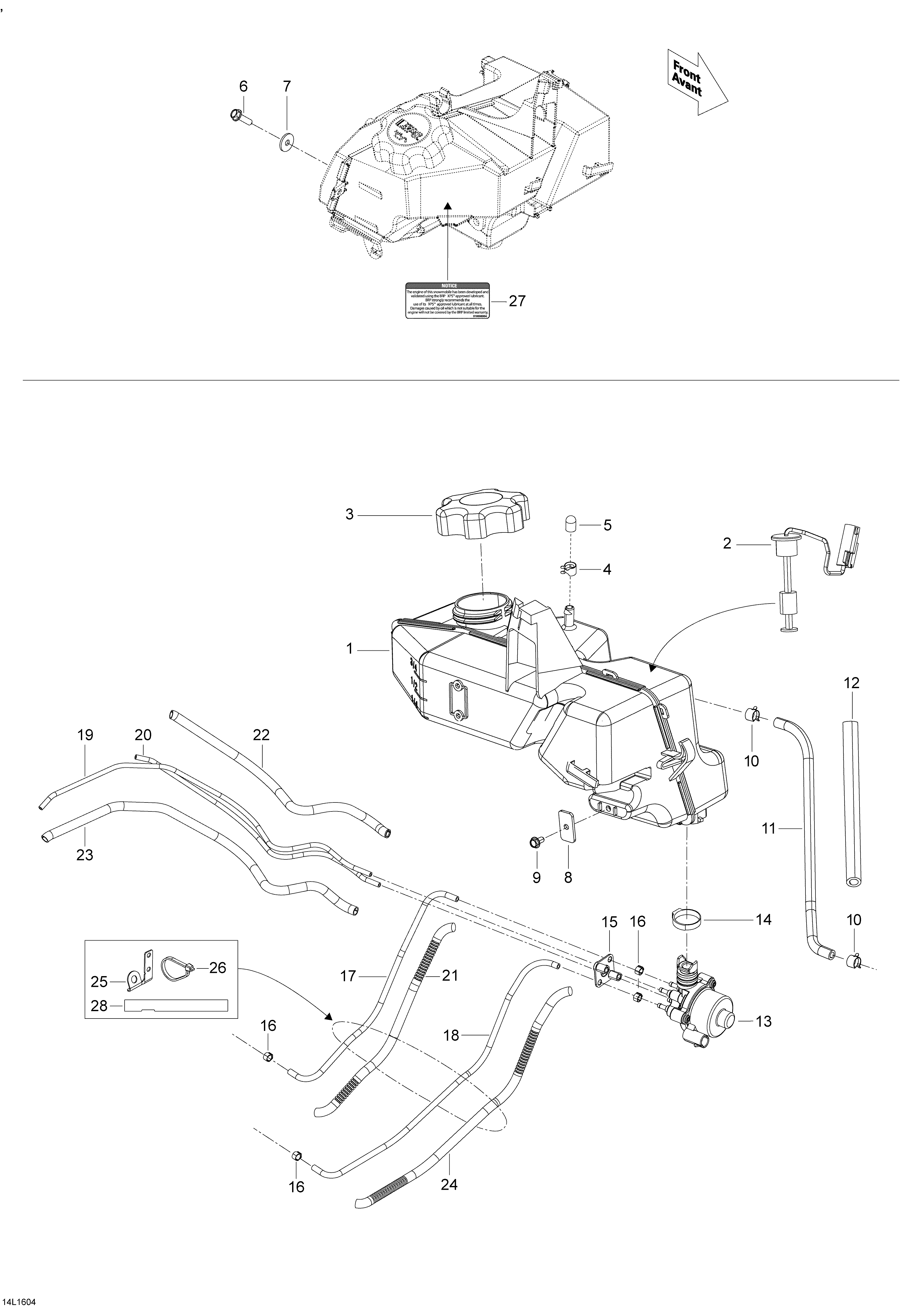

02- Oil System для BRP Lynx 69 YETI (2-Stroke) - 2016
-
№АртикулНазвание
-
1519000251 Oil TankOil Tank
-
2515176978 Level SensorLevel Sensor
-
3519000273 CapCap
-
4293650043 ClampClamp
-
5519000216 CapCap
-
6250000768 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
7224061201 Flat WasherFlat Washer
-
8519000179 BracketBracket
-
9241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
10414554800 Spring ClampSpring Clamp
-
11415080200 HoseHose
-
12415079900 Protector TubeProtector Tube
-
13519000305 Oil PumpOil Pump
-
14293650099 Crimp ClampCrimp Clamp
-
15519000271 BracketBracket
-
16293650100 Crimp ClampCrimp Clamp
-
17519000182 Hose (340mm)Hose (340mm)
-
18519000182 Hose (410mm)Hose (410mm)
-
19519000184 Hose (460mm)Hose (460mm)
-
20519000184 Hose (360mm)Hose (360mm)
-
21515175442 Protector TubeProtector Tube
-
22515175442 Protector TubeProtector Tube
-
23515175442 Protector TubeProtector Tube
-
24515175442 Protector TubeProtector Tube
-
25519000245 BracketBracket
-
26293750002 Tie Rap 142mmTie Rap 142mm
-
27516006904 Warning DecalWarning Decal
-
28516004648 Protection DecalProtection Decal
