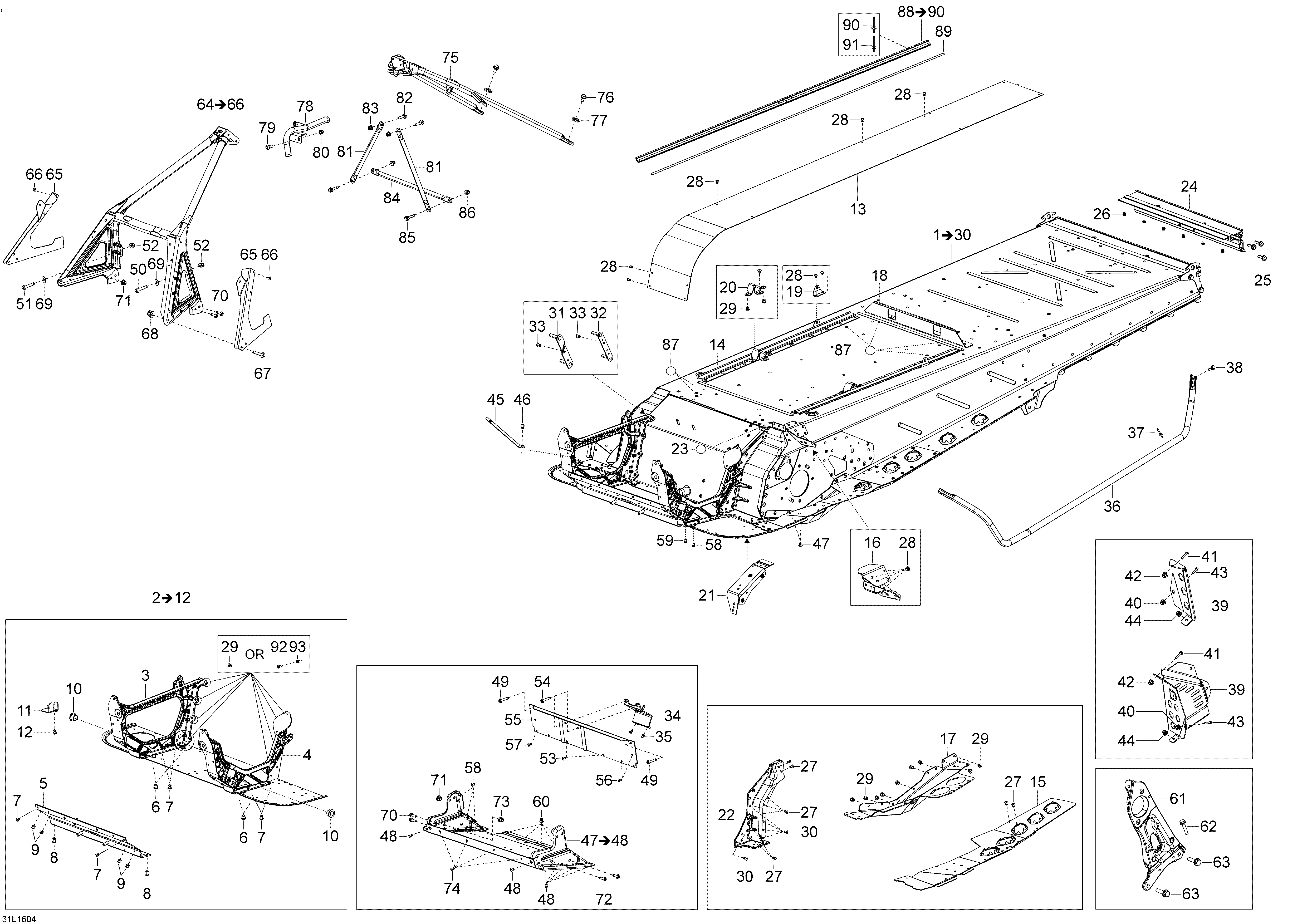

09- Frame для BRP Lynx 69 YETI (2-Stroke) - 2016
-
№АртикулНазвание
-
1518328848 Green Frame. Includes 1 To 30Green Frame. Includes 1 To 30
-
2518328813 Module E. Includes 2 To 12Module E. Includes 2 To 12
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut M8Clinch Nut M8
-
7390909100 RivetRivet
-
8293150120 RivetRivet
-
9293150119 RivetRivet
-
10505072690 CushionCushion
-
11518328194 Muffler SupportMuffler Support
-
12293150163 RivetRivet
-
13509000975 RadiatorRadiator
-
14518326107 Fastening RailFastening Rail
-
15518328918 LH FootrestLH Footrest
-
15518328919 RH FootrestRH Footrest
-
16518327884 Fastening BracketFastening Bracket
-
18518327003 Battery SupportBattery Support
-
19518327457 Seat Box BracketSeat Box Bracket
-
20518326109 LH Support Tube BracketLH Support Tube Bracket
-
20518326110 RH Support Tube BracketRH Support Tube Bracket
-
21518328096 Clinch Nut PlateClinch Nut Plate
-
22518325643 LH Frame CornerLH Frame Corner
-
22518325644 RH Frame CornerRH Frame Corner
-
23518325560 Adhesive PatchAdhesive Patch
-
24518328749 Rear ProfileRear Profile
-
25207582586 Screw M8 x 25Screw M8 x 25
-
26293150174 RivetRivet
-
27390909100 RivetRivet
-
28390909200 RivetRivet
-
29293150119 RivetRivet
-
30293150183 RivetRivet
-
31518326123 Front Gearbox Counter PlateFront Gearbox Counter Plate
-
32518326124 Rear Gearbox Counter PlateRear Gearbox Counter Plate
-
33390402200 Pop Rivet 3/16Pop Rivet 3/16
-
34518325943 MAG SupportMAG Support
-
35293150119 RivetRivet
-
36518327595 LH Footrest Support TubeLH Footrest Support Tube
-
36518327596 RH Footrest Support TubeRH Footrest Support Tube
-
37390909100 RivetRivet
-
38207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
39518328921 Black LH Toe HookBlack LH Toe Hook
-
39518328922 Black RH Toe HookBlack RH Toe Hook
-
40605636003 Clinch Nut M6Clinch Nut M6
-
41207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
42233261414 Nut M6Nut M6
-
43250000717 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
44233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
45514054846 Spring BracketSpring Bracket
-
46390909200 RivetRivet
-
47518326213 Cross Member. Includes 47 To 48Cross Member. Includes 47 To 48
-
48390909200 RivetRivet
-
49210262050 Forming Screw M6 x 20Forming Screw M6 x 20
-
50207662544 Screw M6 x 25Screw M6 x 25
-
51207563034 Screw M6 x 30Screw M6 x 30
-
52233261414 Nut M6Nut M6
-
53293150119 RivetRivet
-
54207661644 Screw M6 x 16Screw M6 x 16
-
55518325620 Support PlateSupport Plate
-
56390909100 RivetRivet
-
57293150163 RivetRivet
-
58293150119 RivetRivet
-
59293150183 RivetRivet
-
60390909200 RivetRivet
-
61518328434 Pulley SupportPulley Support
-
62207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
63207583086 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
64518326754 Front Member Ass'y. Includes 64 To 66Front Member Ass'y. Includes 64 To 66
-
65502007077 LH Bumper FastenerLH Bumper Fastener
-
65502007078 RH Bumper FastenerRH Bumper Fastener
-
66390909200 RivetRivet
-
67207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
68233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
69224061201 Flat WasherFlat Washer
-
70207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
71233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
72207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
73233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
74390909200 RivetRivet
-
75518326103 Upper Support TubeUpper Support Tube
-
76207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
78512061157 Guide TubeGuide Tube
-
79207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
80233261414 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
81518325114 SupportSupport
-
82207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
83233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
84518325115 Upper ColumnUpper Column
-
85207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
86233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
87518325560 Adhesive PatchAdhesive Patch
-
88860200737 Radiator Protector. Includes 88 To 90, Model-600 E-TECRadiator Protector. Includes 88 To 90, Model-600 E-TEC
-
9036108 Rivet. Model-600 E-TECRivet. Model-600 E-TEC
-
91390909200 Rivet. Model-600 E-TECRivet. Model-600 E-TEC
-
92207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
93233261414 Elastic Flange Nut M6Elastic Flange Nut M6
