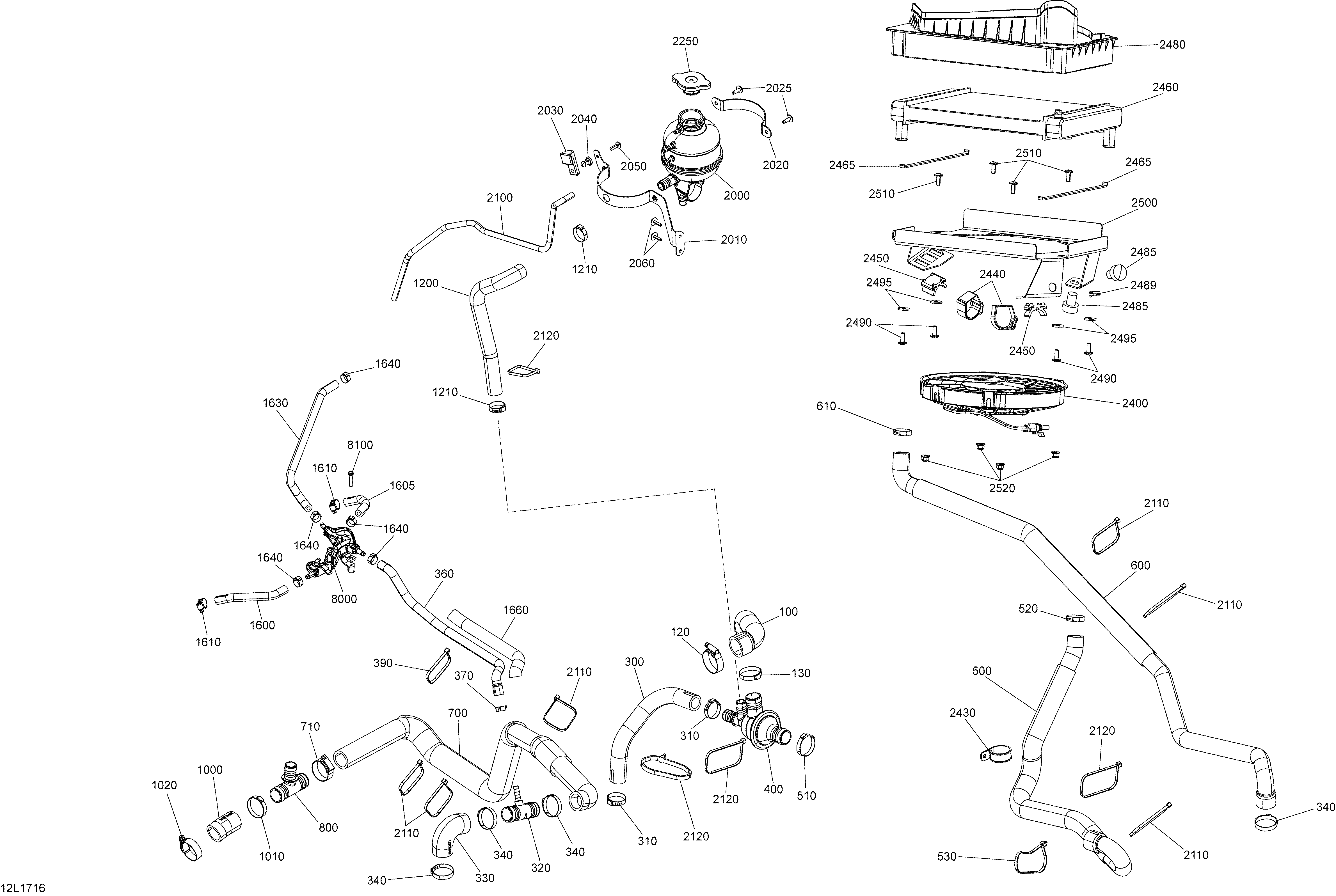

01- Cooling System для BRP Lynx Commander Touratech, 2017 - 2017
-
№АртикулНазвание
-
100509000595 Engine Outlet HoseEngine Outlet Hose
-
120509000443 Aba Gear ClampAba Gear Clamp
-
130509000181 Oetiker Gear ClampOetiker Gear Clamp
-
300509000523 Bypass HoseBypass Hose
-
310293650099 Crimp ClampCrimp Clamp
-
320509000510 T-FittingT-Fitting
-
330509000671 Radiator HoseRadiator Hose
-
340509000529 Oetiker Gear ClampOetiker Gear Clamp
-
360509000906 Bleeder HoseBleeder Hose
-
370293650047 Crimp ClampCrimp Clamp
-
390414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
400509000499 Thermostat HousingThermostat Housing
-
500509000983 Thermostat Outlet HoseThermostat Outlet Hose
-
510509000181 Oetiker Gear ClampOetiker Gear Clamp
-
520293650099 Crimp ClampCrimp Clamp
-
530414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
600509000994 HoseHose
-
610293650099 Crimp ClampCrimp Clamp
-
700509000992 Radiator HoseRadiator Hose
-
710509000443 Aba Gear ClampAba Gear Clamp
-
800509000372 T-FittingT-Fitting
-
1000509000997 Engine Inlet HoseEngine Inlet Hose
-
1010509000181 Oetiker Gear ClampOetiker Gear Clamp
-
1020509000443 Aba Gear ClampAba Gear Clamp
-
1200509000736 Filling HoseFilling Hose
-
1210509000442 Gear ClampGear Clamp
-
1600509000818 Bleeder HoseBleeder Hose
-
1605509000819 Bleeder HoseBleeder Hose
-
1610293650170 Tridon Gear ClampTridon Gear Clamp
-
1630509000998 HoseHose
-
1640293650046 Oetiker ClampOetiker Clamp
-
1660415080000 Tubing 16 mmTubing 16 mm
-
2000509000421 Coolant TankCoolant Tank
-
2010509000852 Reservoir supportReservoir support
-
2020509000608 SupportSupport
-
2025250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
2030509000609 SupportSupport
-
2040517303439 KnobKnob
-
2050250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
2060250000725 Screw M4 X 16Screw M4 X 16
-
2100276000048 Hose 6 mmHose 6 mm
-
2110293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
2120414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
2250509000180 Pressure CapPressure Cap
-
2400509000838 Cooling FanCooling Fan
-
243027011 Clamp With RubberClamp With Rubber
-
2440508000820 Velcro-StripVelcro-Strip
-
2450508000822 BumperBumper
-
2460509000980 RadiatorRadiator
-
2465509000986 Rubber StripRubber Strip
-
2480509000985 DeflectorDeflector
-
2485570044700 Rubber BumperRubber Bumper
-
2489710000992 ClipClip
-
2490250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
2495224061201 Flat WasherFlat Washer
-
2500509000984 SupportSupport
-
2510250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
2520233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8000509000803 Bleed CollectorBleed Collector
-
8100241152540 Hex. Flanged Screw K50 X 25Hex. Flanged Screw K50 X 25
