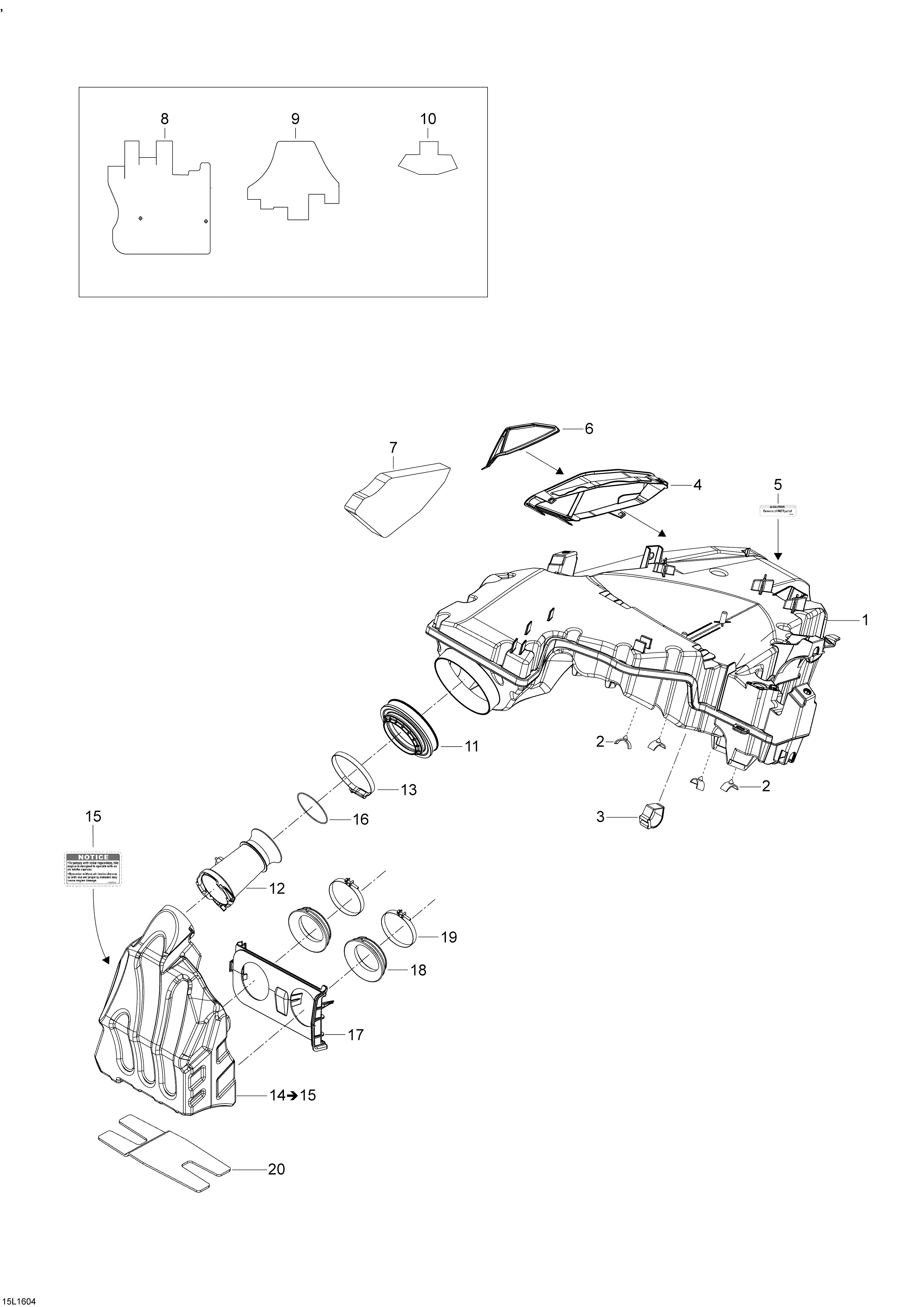

02- Air Intake System 800RE для BRP Lynx Commander Touratech, 2017 - 2017
-
№АртикулНазвание
-
1508000790 Chamber Ass'yChamber Ass'y
-
2508000537 StopperStopper
-
3508000820 Strip VelcroStrip Velcro
-
4508000756 AdapterAdapter
-
5516006903 Hot Parts DecalHot Parts Decal
-
6508000609 Air FilterAir Filter
-
7508000704 FilterFilter
-
8508000675 Reflective SheetReflective Sheet
-
9508000676 Reflective SheetReflective Sheet
-
10508000677 Reflective SheetReflective Sheet
-
11508000548 BootBoot
-
12508000662 FluteFlute
-
13514052983 ClampClamp
-
14508000660 Primary Chamber Ass'y. Includes 14 To 15Primary Chamber Ass'y. Includes 14 To 15
-
15516005876 Air Intake Instruction DecalAir Intake Instruction Decal
-
16293300115 O-RingO-Ring
-
17508000613 Adapter PlateAdapter Plate
-
18508000614 Intake AdapterIntake Adapter
-
19508000346 ClampClamp
-
20508000739 FoamFoam
