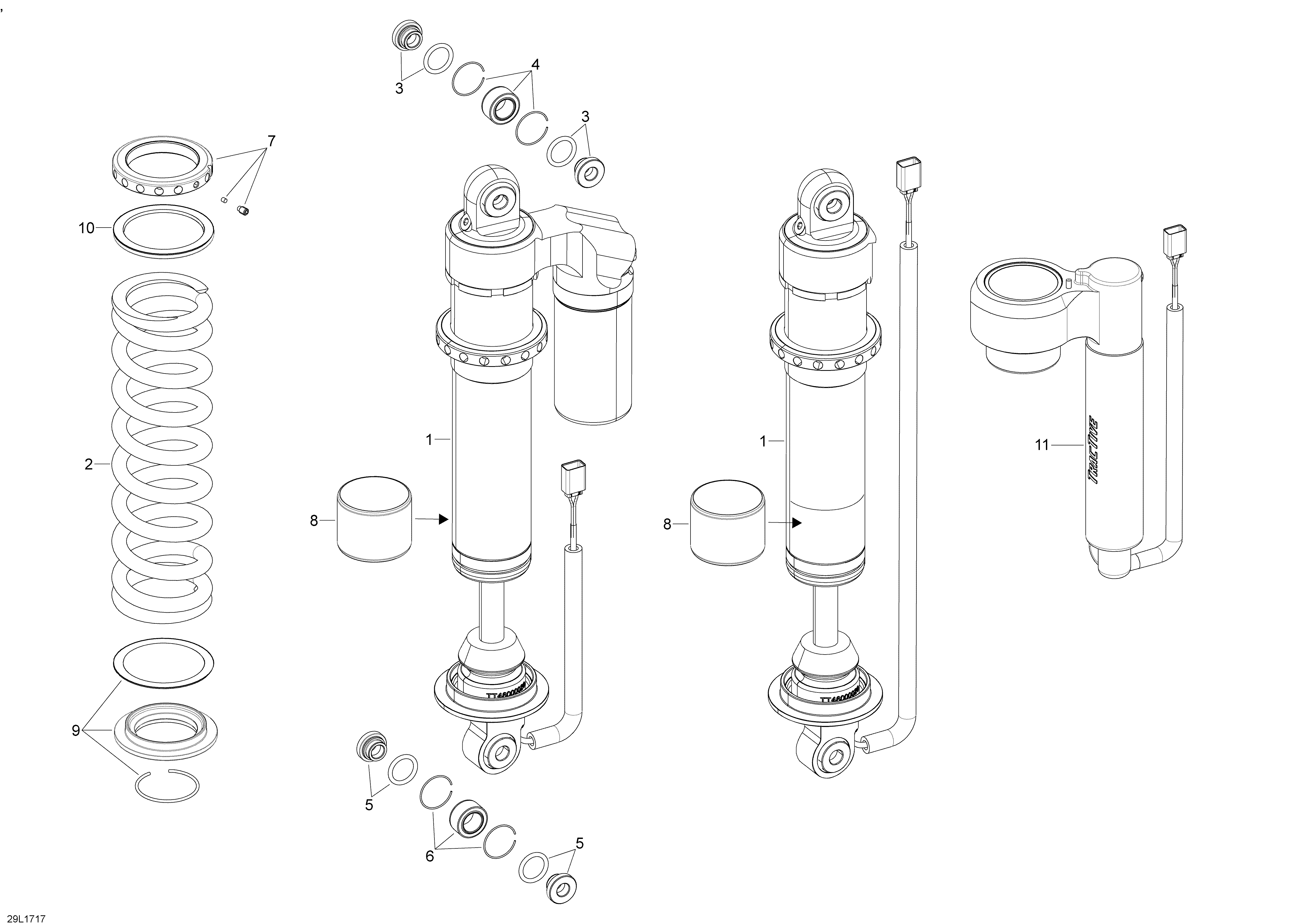

08- Rear Suspension Shocks TRACTIVE для BRP Lynx Commander Touratech, 2017 - 2017
-
№АртикулНазвание
-
-503194195 Center Shock Ass'y. Includes 1 To 10Center Shock Ass'y. Includes 1 To 10
-
-503194194 Rear Shock Ass'y. Includes 1 To 11Rear Shock Ass'y. Includes 1 To 11
-
2619300194 Center Shock SpringCenter Shock Spring
-
2619300178 Rear Shock SpringRear Shock Spring
-
3619300183 Center Shock Upper Bearing BushingCenter Shock Upper Bearing Bushing
-
3619300183 Rear Shock Upper Bearing BushingRear Shock Upper Bearing Bushing
-
4619300185 Center Shock Upper BearingCenter Shock Upper Bearing
-
4619300186 Rear Shock Upper BearingRear Shock Upper Bearing
-
5619300183 Center Shock Lower Bearing BushingCenter Shock Lower Bearing Bushing
-
5619300183 Rear Shock Lower Bearing BushingRear Shock Lower Bearing Bushing
-
6619300185 Center Shock Lower BearingCenter Shock Lower Bearing
-
6619300187 Rear Shock Lower BearingRear Shock Lower Bearing
-
7619300188 Upper Spring Retainer KitUpper Spring Retainer Kit
-
8619300189 Rubber Protection SleeveRubber Protection Sleeve
-
9619300190 Lower Spring Retainer KitLower Spring Retainer Kit
-
10619300191 Upper Spring SpacerUpper Spring Spacer
-
11619300182 Rear Shock Preload Adjuster UnitRear Shock Preload Adjuster Unit
