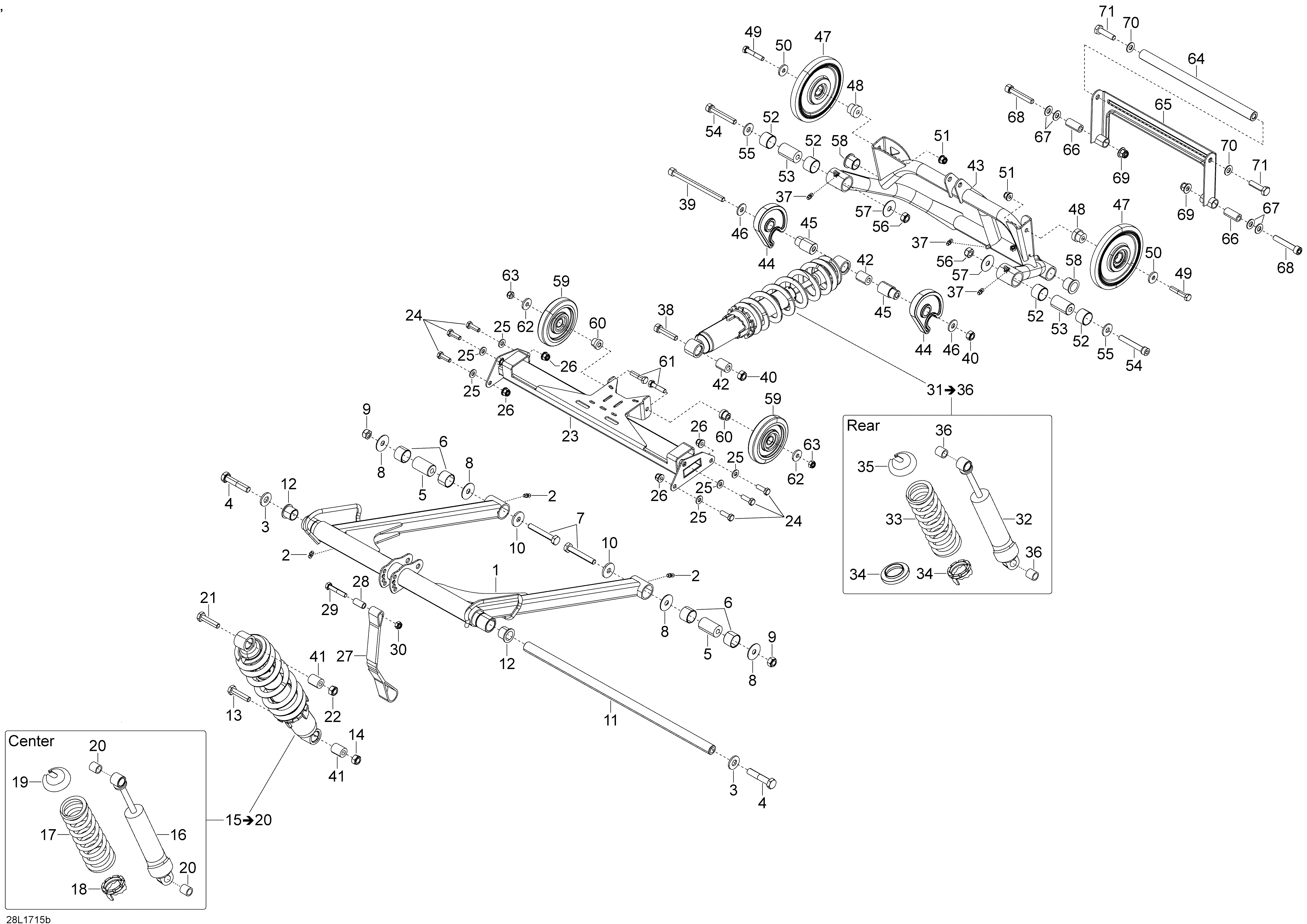

08- Rear Suspension B для BRP Lynx Commander Touratech, 2017 - 2017
-
№АртикулНазвание
-
1503193092 Front ArmFront Arm
-
2408200700 Grease FittingGrease Fitting
-
3250200131 Washer Spring Conical M12Washer Spring Conical M12
-
4250000555 Hex. Cap Screw M12 x 60Hex. Cap Screw M12 x 60
-
5605354157 ShaftShaft
-
6503193700 BushingBushing
-
7207007044 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
8605355801 WasherWasher
-
9232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
10503183300 WasherWasher
-
115347719 Upper ShaftUpper Shaft
-
1231024 CushionCushion
-
13250000549 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
-
14232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
16503194362 Shock. Model-STDShock. Model-STD
-
17605625010 Spring. Model-STDSpring. Model-STD
-
18230078 Spring SeatSpring Seat
-
19230076 Spring SeatSpring Seat
-
2031094 Glide BearingGlide Bearing
-
21207004544 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
-
22232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
23503192344 Middle BeamMiddle Beam
-
24250000556 Hex. Cap Screw M8 x 25Hex. Cap Screw M8 x 25
-
25503192494 WasherWasher
-
26233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
27503193780 Limiter StrapLimiter Strap
-
28605455335 SleeveSleeve
-
29207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
30232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
32503194364 Shock. Model-STDShock. Model-STD
-
33503192356 Spring. Model-STDSpring. Model-STD
-
34503194204 Sleeve. Model-STDSleeve. Model-STD
-
35605354631 Spring Lock. Model-STDSpring Lock. Model-STD
-
3631094 Glide BearingGlide Bearing
-
37408200700 Grease FittingGrease Fitting
-
38205004544 Socket ScrewSocket Screw
-
3940225 Allen Screw M10 x 140Allen Screw M10 x 140
-
40232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
415446652 BushingBushing
-
425446652 BushingBushing
-
43503193868 Rear ArmRear Arm
-
44503194181 Track SupportTrack Support
-
45503194203 SleeveSleeve
-
46503191926 WasherWasher
-
47503193852 Idler Wheel 133mmIdler Wheel 133mm
-
48605454461 SleeveSleeve
-
49207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
5020077 WasherWasher
-
51233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
52503193700 BushingBushing
-
53605354157 ShaftShaft
-
54250000560 Socket HD Screw M10 x 65Socket HD Screw M10 x 65
-
55503191926 WasherWasher
-
56232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
57605355801 WasherWasher
-
5831024 CushionCushion
-
59572043500 Idler WheelIdler Wheel
-
60503193330 SleeveSleeve
-
61207083544 Hex. Cap Screw M8 x 35Hex. Cap Screw M8 x 35
-
6220077 WasherWasher
-
63232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
64503192397 ShaftShaft
-
65503192346 Rear SwingRear Swing
-
66503192341 Rear Swing ShaftRear Swing Shaft
-
67234001410 Washer Flat M10Washer Flat M10
-
68205006044 Socket HD Screw M10 x 60Socket HD Screw M10 x 60
-
69233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
70234001410 Flat Washer M10Flat Washer M10
-
71207204044 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
