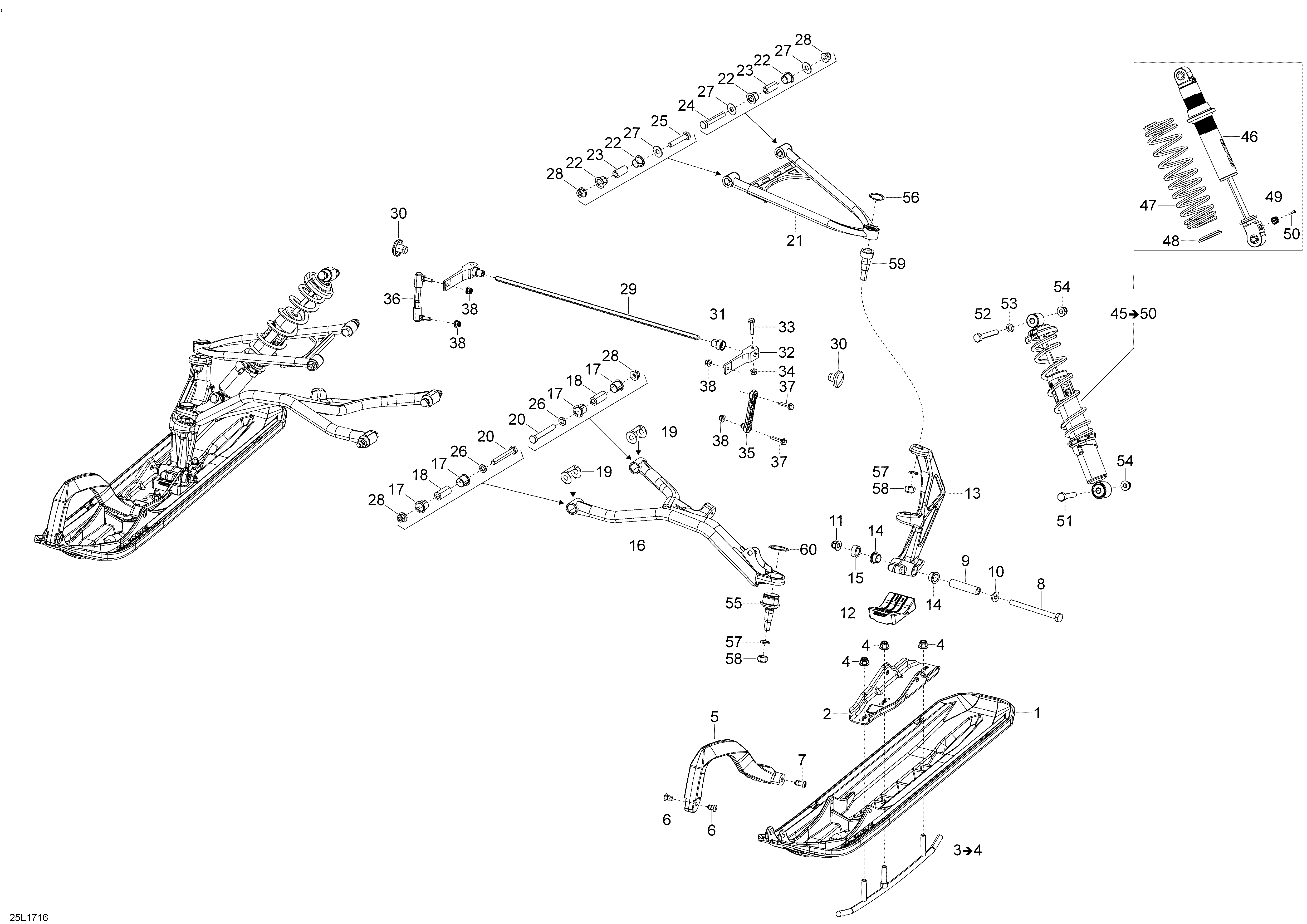

07- Front Suspension And Ski для BRP Lynx Commander Touratech, 2017 - 2017
-
№АртикулНазвание
-
1505073154 Black Blade SkiBlack Blade Ski
-
2505073240 Ski BridgeSki Bridge
-
3860200959 Ski Runner Kit. Includes 3 To 4Ski Runner Kit. Includes 3 To 4
-
4233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
5505072976 Black HandleBlack Handle
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8231080044 Socket HD Screw M10 x 100Socket HD Screw M10 x 100
-
9506133300 Ski AxleSki Axle
-
10732900049 WasherWasher
-
11233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
12505073411 Rubber DamperRubber Damper
-
13505073579 Black LH Ski LegBlack LH Ski Leg
-
13505073580 Black RH Ski LegBlack RH Ski Leg
-
14505072690 BushingBushing
-
15505072807 SpacerSpacer
-
16505073925 Black RH Lower ArmBlack RH Lower Arm
-
16505073924 Black LH Lower ArmBlack LH Lower Arm
-
17505073330 CushionCushion
-
18505072209 BushingBushing
-
19505072634 Wear PlateWear Plate
-
20250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
21505073985 Black LH Upper ArmBlack LH Upper Arm
-
21505073986 Black RH Upper ArmBlack RH Upper Arm
-
22505073329 BushingBushing
-
23505072143 BushingBushing
-
24250000290 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
25250000289 Hex. Cap Screw M10 X 50Hex. Cap Screw M10 X 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100165 Nut M10Nut M10
-
29505073609 StabilisatorStabilisator
-
30572091300 CapCap
-
31505072445 BushingBushing
-
32505074050 Stabilisator LeverStabilisator Lever
-
33207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
34233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
35505074123 Double Ball JointDouble Ball Joint
-
36505073962 Double Ball Joint Link (Quick Release)Double Ball Joint Link (Quick Release)
-
37207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
38233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
46505073456 ShockShock
-
47505072741 Spring (280mm - 15.8N/mm)Spring (280mm - 15.8N/mm)
-
48503192608 Spring StopperSpring Stopper
-
49505072753 Adjuster KnobAdjuster Knob
-
50205031060 Socket Screw M3 x 10Socket Screw M3 x 10
-
51207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
52207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
53503189564 WasherWasher
-
54233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
55505073636 Ball JointBall Joint
-
56293370070 CirclipCirclip
-
57234021410 Flat WasherFlat Washer
-
58250100089 Nut M12Nut M12
-
59505072913 Ball JointBall Joint
-
60293370035 CirclipCirclip
