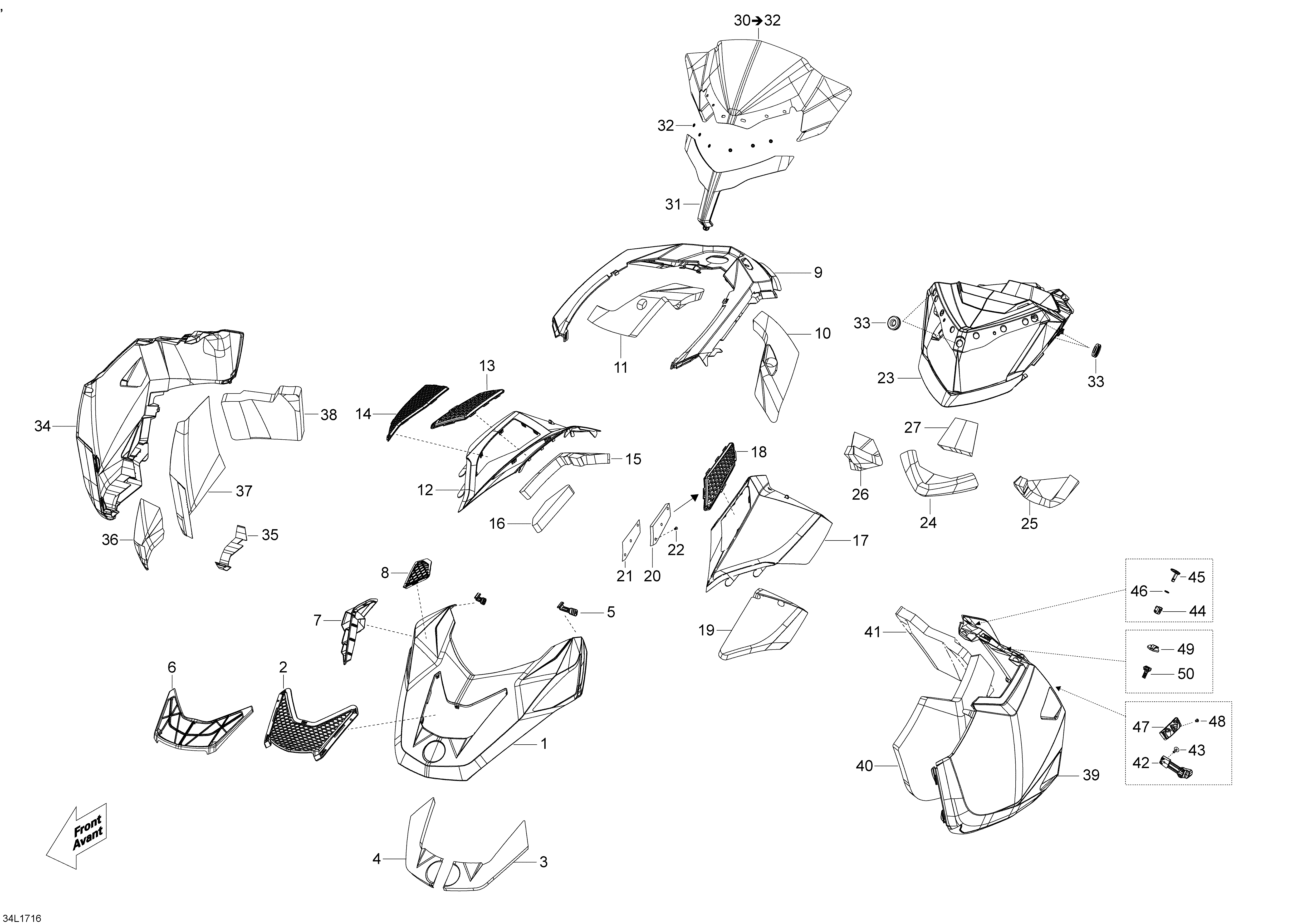

09- Hood And Windshield для BRP Lynx Commander Touratech, 2017 - 2017
-
№АртикулНазвание
-
1517305818 Black HoodBlack Hood
-
2517304843 Hood GrillHood Grill
-
3517304330 InsulatorInsulator
-
4517304214 InsulatorInsulator
-
5517304289 LatchLatch
-
6517305553 Hood Grill With MeshHood Grill With Mesh
-
7517304855 Intake GrillIntake Grill
-
8517304584 Intake GrillIntake Grill
-
9517304820 Black Console. Model-stdBlack Console. Model-std
-
9517304819 Black Console. Model-Traveler PackageBlack Console. Model-Traveler Package
-
10517305644 InsulatorInsulator
-
11517304318 InsulatorInsulator
-
12517304829 Black RH Side Access PanelBlack RH Side Access Panel
-
13517304015 RH Access Panel GrillRH Access Panel Grill
-
14517304016 RH Lower Access Panel GrillRH Lower Access Panel Grill
-
15517304311 InsulatorInsulator
-
16517305987 InsulatorInsulator
-
17517304839 Black LH Side Access PanelBlack LH Side Access Panel
-
18517303893 LH Access Panel GrillLH Access Panel Grill
-
19517304313 InsulatorInsulator
-
20517305311 InsulatorInsulator
-
21502007312 Grill PlateGrill Plate
-
22414644300 DartDart
-
23517304272 Indicator Support. Model-stdIndicator Support. Model-std
-
23517305281 Indicator Support. Model-Ltd & TouratechIndicator Support. Model-Ltd & Touratech
-
24517304314 InsulatorInsulator
-
25517304315 InsulatorInsulator
-
26517304316 InsulatorInsulator
-
27517304319 InsulatorInsulator
-
30517306054 Windshield (355) Ass'y. Includes 30 To 32Windshield (355) Ass'y. Includes 30 To 32
-
31517304712 Windshield SupportWindshield Support
-
32732610072 Push NutPush Nut
-
33517303756 GrommetGrommet
-
34517304866 Black RH Side PanelBlack RH Side Panel
-
35517304215 Aluminum FoilAluminum Foil
-
36517304216 Aluminum FoilAluminum Foil
-
37517303890 RH FoamRH Foam
-
37517304512 FoilFoil
-
38517304310 RH Foam RearRH Foam Rear
-
39517305533 Black LH Side PanelBlack LH Side Panel
-
40517303891 LH FoamLH Foam
-
41517304309 LH Foam RearLH Foam Rear
-
42517304572 Latch-PanelLatch-Panel
-
43293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
44517304297 Quarter-Turn Handle FastenerQuarter-Turn Handle Fastener
-
45517304296 Quarter-Turn HandleQuarter-Turn Handle
-
46517304538 Locking PlateLocking Plate
-
47517304497 Side Panel SupportSide Panel Support
-
48293150211 RivetRivet
-
49517304075 End PieceEnd Piece
-
50517306057 Latch-PanelLatch-Panel
