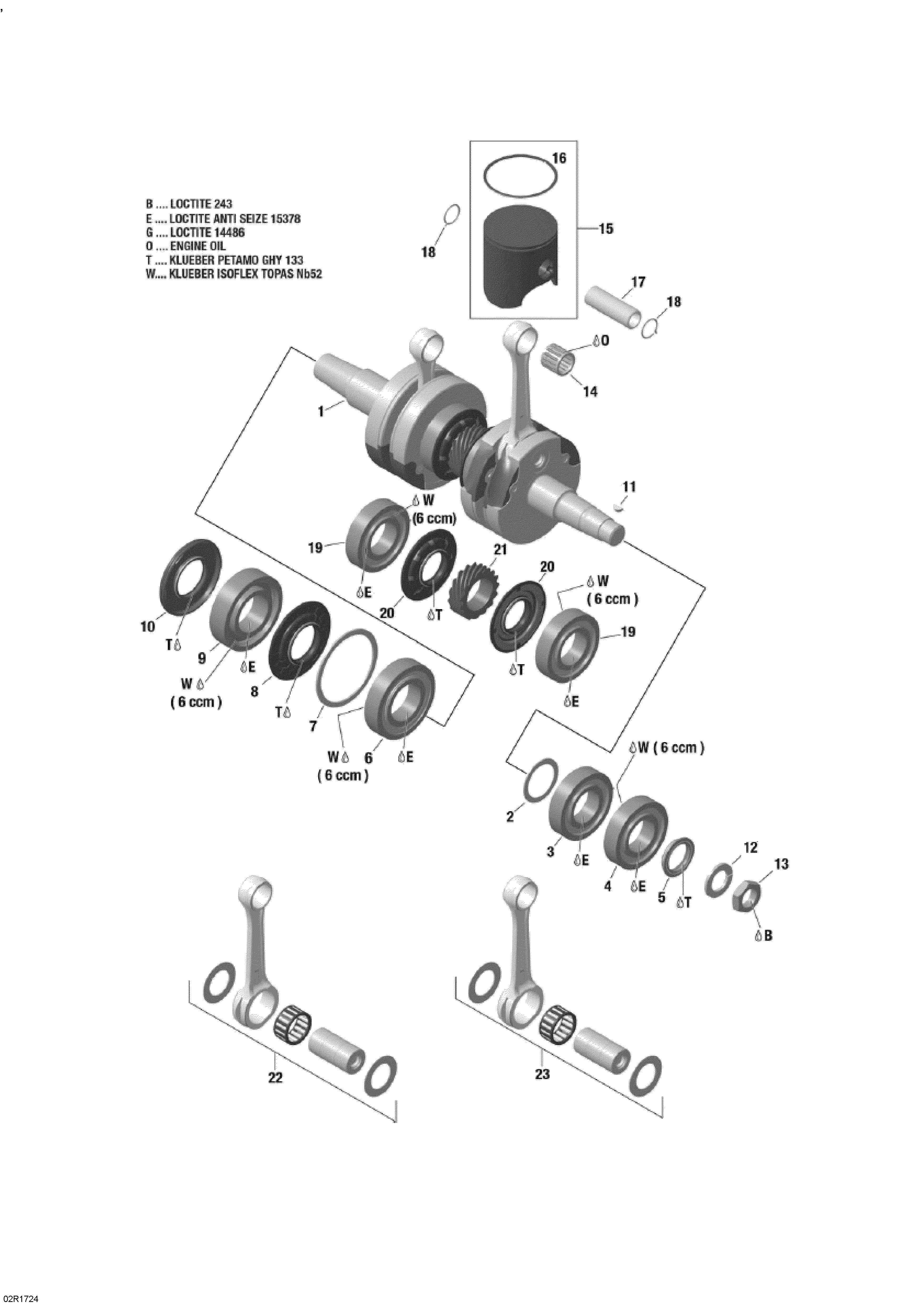

01- Crankshaft And Piston - 600 RS для BRP Lynx Rave RS Racing - 2017
-
№АртикулНазвание
-
1420893980 Crankshaft Ass'y. Includes 1 To 11Crankshaft Ass'y. Includes 1 To 11
-
2420827767 ShimShim
-
3420832575 Ball BearingBall Bearing
-
4420832575 Ball BearingBall Bearing
-
5420931795 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
6420832600 Ball BearingBall Bearing
-
7420926190 WasherWasher
-
8420931910 Oil SealOil Seal
-
9420832603 Ball BearingBall Bearing
-
10420931284 Oil SealOil Seal
-
11420246015 Woodruff KeyWoodruff Key
-
12420945759 Lock WasherLock Washer
-
13420842239 Hex. Nut M22. Tightening Torque 120-130 NmHex. Nut M22. Tightening Torque 120-130 Nm
-
14420832445 Needle BearingNeedle Bearing
-
15420893303 Piston Ass'y, 71.87 mm. Includes 15 To 16Piston Ass'y, 71.87 mm. Includes 15 To 16
-
16420815295 Semi-Trapez RingSemi-Trapez Ring
-
17420916413 Piston PinPiston Pin
-
18420845106 Piston Circlip. Included In Gasket KitPiston Circlip. Included In Gasket Kit
-
19420832575 Ball BearingBall Bearing
-
20420931455 Oil SealOil Seal
-
21420834355 Central GearCentral Gear
-
22420891637 Rod Repair Kit (PTO Side)Rod Repair Kit (PTO Side)
-
23420891639 Rod Repair Kit (MAG Side)Rod Repair Kit (MAG Side)
