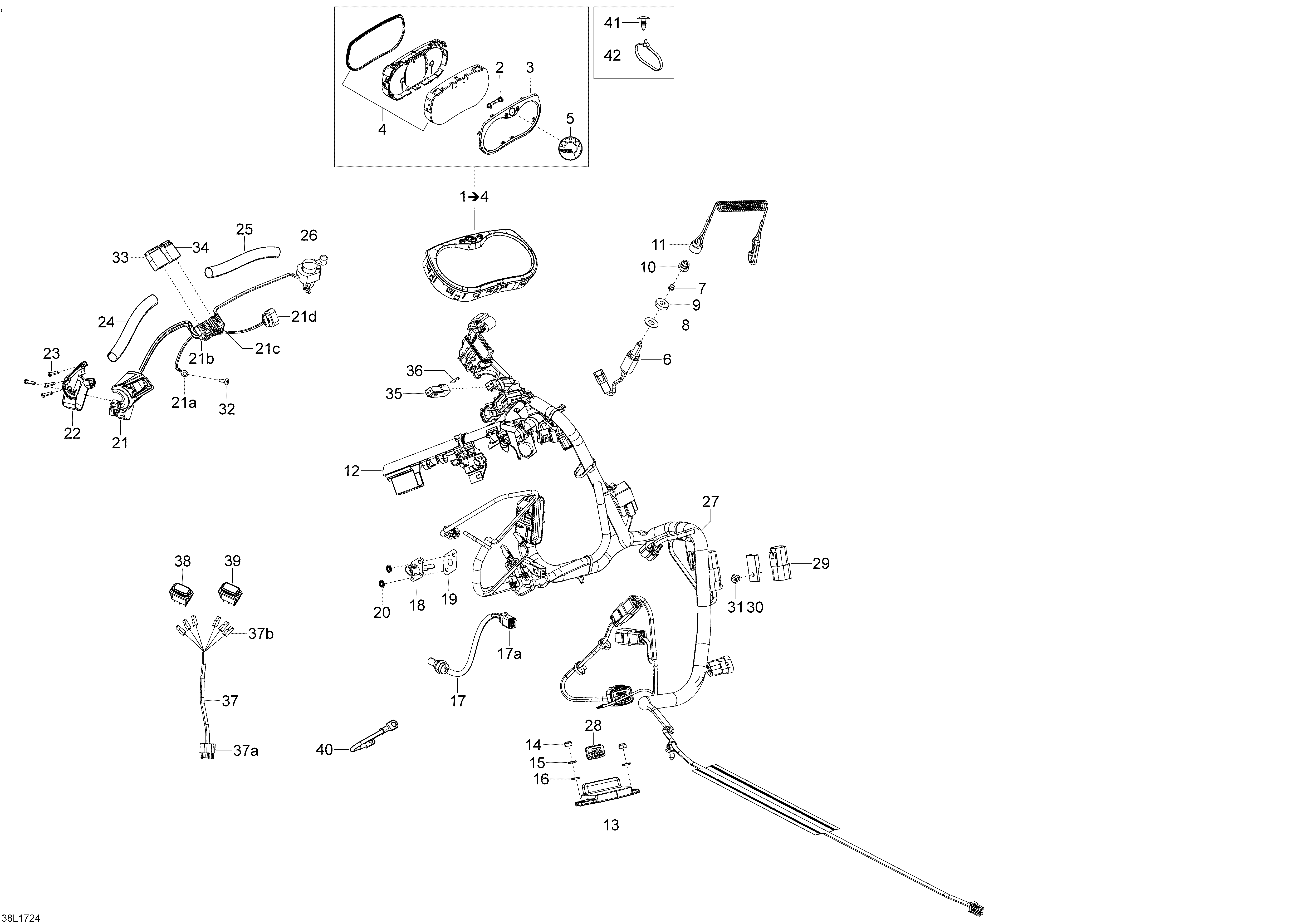

10- Electrical System для BRP Lynx Rave RS Racing - 2017
-
№АртикулНазвание
-
1515177910 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Ring GaugeRing Gauge
-
4415129349 Lens And SealLens And Seal
-
5516006224 BRP LogoBRP Logo
-
6515175653 Brake SwitchBrake Switch
-
7570151100 Plunger CapPlunger Cap
-
8250200032 WasherWasher
-
9510004418 WasherWasher
-
10515145900 Switch NutSwitch Nut
-
11515178292 Cap Ass'yCap Ass'y
-
12515177134 Connector PlateConnector Plate
-
13515176364 Voltage RegulatorVoltage Regulator
-
14232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
15234061410 Flat WasherFlat Washer
-
16234461608 Serrated Lock WasherSerrated Lock Washer
-
17515177813 Temperature Sensor. Includes 22 To 24Temperature Sensor. Includes 22 To 24
-
17a515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
17a278000632 Female TerminalFemale Terminal
-
18515176366 Air Temperature SensorAir Temperature Sensor
-
19508000769 RingRing
-
20389804300 Push NutPush Nut
-
21515178305 LH Switch HosuingLH Switch Hosuing
-
21a515175504 Ring TerminalRing Terminal
-
21b515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
21b515175231 Female TerminalFemale Terminal
-
21c515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
21c515175231 Female TerminalFemale Terminal
-
21d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
22515177149 LH Switch Housing PlateLH Switch Housing Plate
-
23250000671 ScrewScrew
-
24415129879 Protector TubeProtector Tube
-
25415129879 Protector TubeProtector Tube
-
26515177454 Kill SwitchKill Switch
-
27515177994 Main HarnessMain Harness
-
28515176681 LockLock
-
29710003006 HousingHousing
-
30270000141 ClipClip
-
31293150037 Rivet 3/16''Rivet 3/16''
-
32250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
33515175662 Male Housing, 6 CirsuitsMale Housing, 6 Cirsuits
-
33515175232 Male TerminalMale Terminal
-
34515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
34515175232 Male TerminalMale Terminal
-
35515175665 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
35515175823 Male TerminalMale Terminal
-
36409207500 Lock, 2 CircuitsLock, 2 Circuits
-
37515177495 Warmer HarnessWarmer Harness
-
37a710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
37b710002398 Female Housing, 1 CircuitFemale Housing, 1 Circuit
-
37b710002399 Female TerminalFemale Terminal
-
38515177497 Hand Warmer Rocker SwitchHand Warmer Rocker Switch
-
39515177498 Thumb Warmer Rocker SwitchThumb Warmer Rocker Switch
-
40515177289 Ground WireGround Wire
-
41414644300 DartDart
-
42414115200 Tie Rap 180mmTie Rap 180mm
-
42293750008 Tie Rap 350mmTie Rap 350mm
-
42293750001 Tie Rap 94mmTie Rap 94mm
-
42605627000 Tie RapTie Rap
