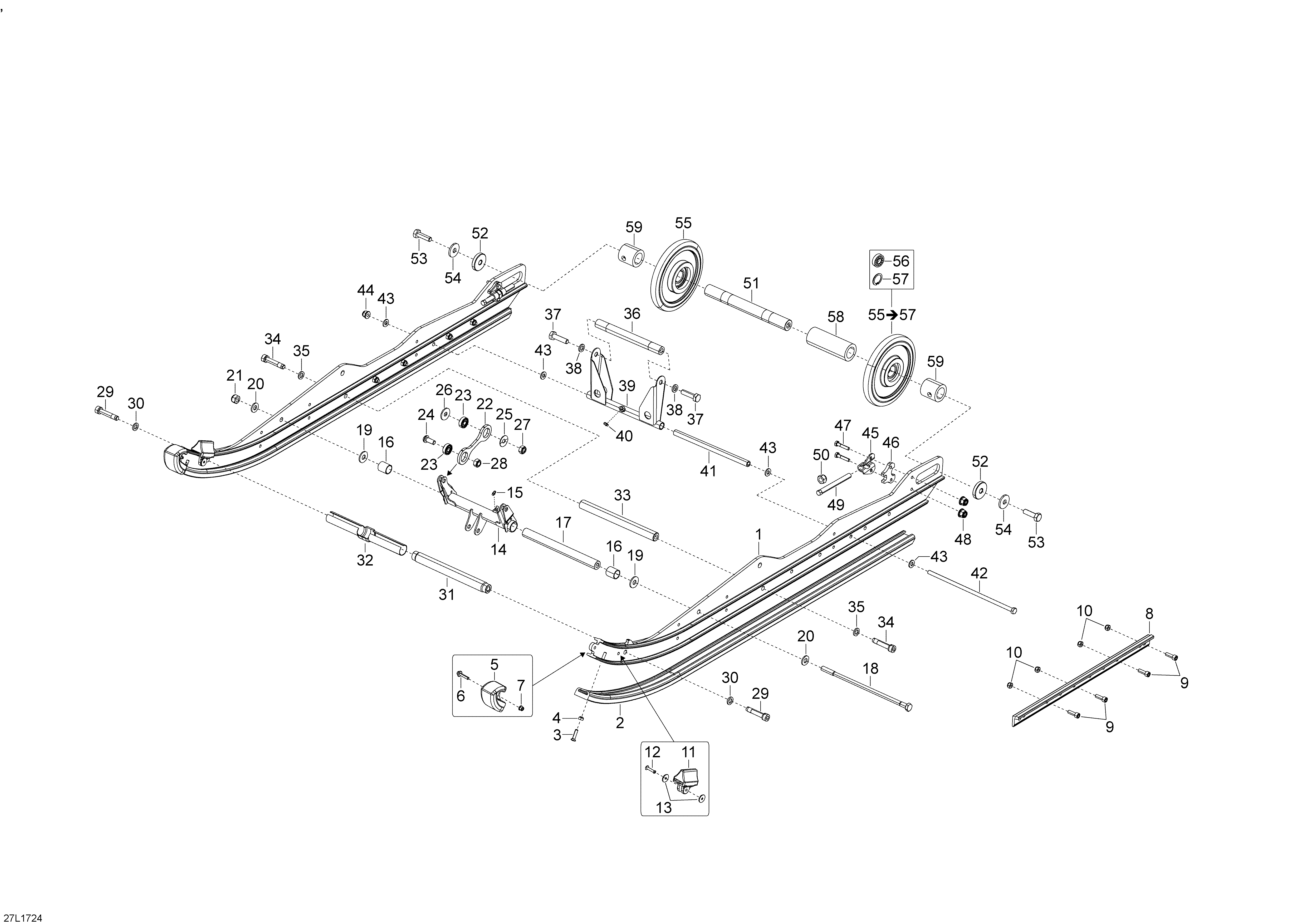

08- Rear Suspension A для BRP Lynx Rave RS Racing - 2017
-
№АртикулНазвание
-
1503194739 RunnerRunner
-
2503192618 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192299 ProtectorProtector
-
6207652544 Hex. Flange Screw M5 x 25Hex. Flange Screw M5 x 25
-
7233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
8503194734 Rail ReinforcementRail Reinforcement
-
9205082554 Socket HD Screw M8 x 25Socket HD Screw M8 x 25
-
10232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
11503192106 Rubber StopperRubber Stopper
-
12293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
13503191273 WasherWasher
-
14503193580 Front SwingFront Swing
-
15408200700 Grease FittingGrease Fitting
-
16503193822 BushingBushing
-
17503193893 Lower ShaftLower Shaft
-
18503193227 Bolt M10 x 251Bolt M10 x 251
-
19503191926 WasherWasher
-
20250200138 WasherWasher
-
21233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
22605254159 Connecting RodConnecting Rod
-
23605631003 Ball BearingBall Bearing
-
24205402546 Socket HD Screw M10 x 25Socket HD Screw M10 x 25
-
2525004 Spring CupSpring Cup
-
26234002600 Washer M10Washer M10
-
27233401414 Lock Spring Nut M10Lock Spring Nut M10
-
28232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
29205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
30503192496 WasherWasher
-
31605353958 ShaftShaft
-
32605355096 Limiter Strap RetainerLimiter Strap Retainer
-
335343471 ShaftShaft
-
34205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
35503192496 WasherWasher
-
36503193638 Lower ShaftLower Shaft
-
37207204044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
38234001410 WasherWasher
-
39503194342 Rear SwingRear Swing
-
40408200700 Grease FittingGrease Fitting
-
41503189156 Pivot AxlePivot Axle
-
42503194069 Bolt M8 x 261Bolt M8 x 261
-
43503192494 WasherWasher
-
44233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
45503192814 TensionerTensioner
-
46503193250 SpacerSpacer
-
47207063054 Hex. Cap Screw M6 x 30Hex. Cap Screw M6 x 30
-
48233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
49230100054 Hex. Cap Screw M10 x 100Hex. Cap Screw M10 x 100
-
50233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
51503194091 Rear ShaftRear Shaft
-
52503192735 Rear Axle WasherRear Axle Washer
-
53250000592 Hex. Cap ScrewHex. Cap Screw
-
54503183300 WasherWasher
-
55503194127 Wheel 165mm. Includes 55 To 57Wheel 165mm. Includes 55 To 57
-
56293350055 Ball BearingBall Bearing
-
585448027 SpacerSpacer
-
595441512 SpacerSpacer
