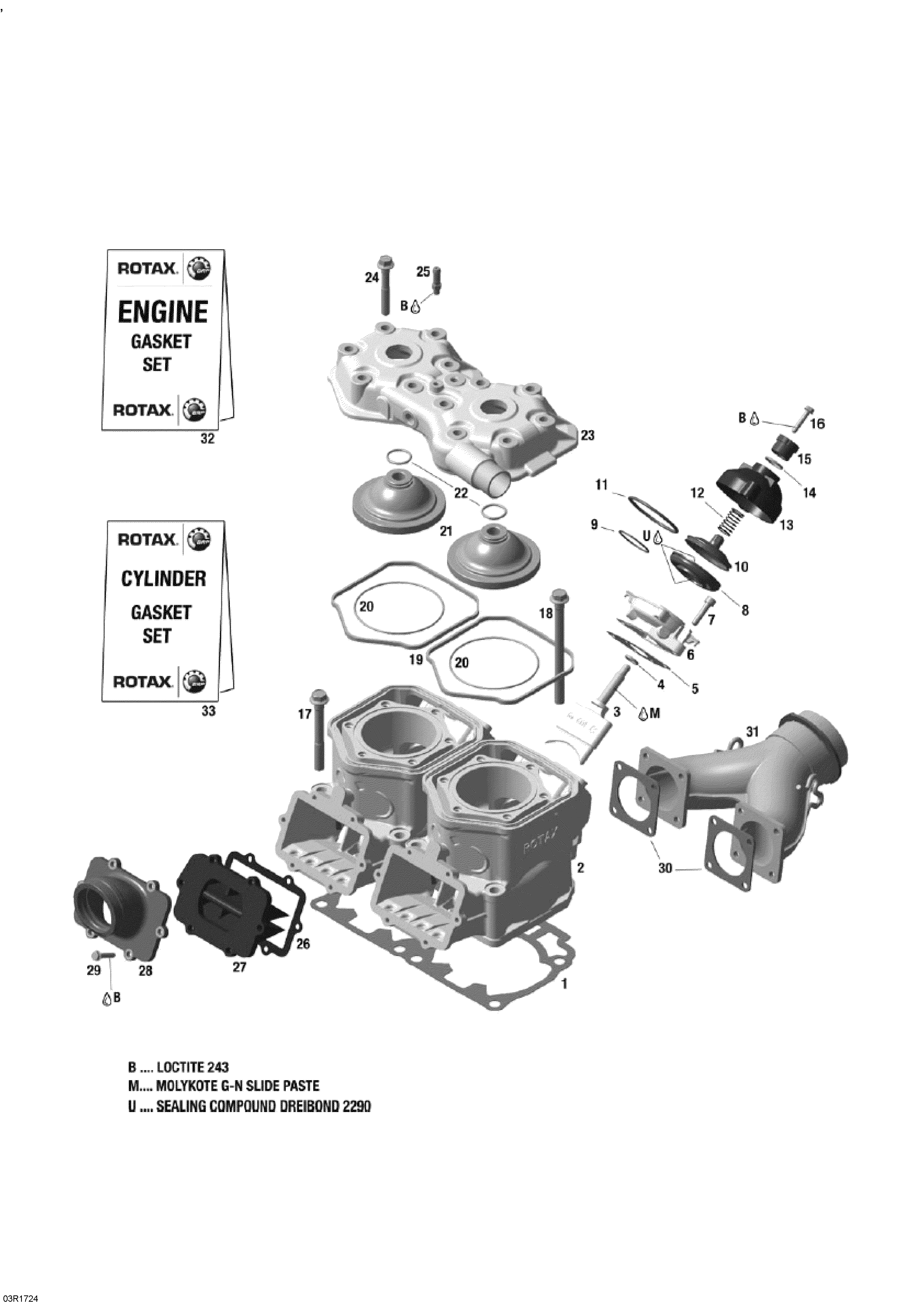

01- Cylinder And Cylinder Head - 600 RS для BRP Lynx Rave RS Racing - 2017

№

Артикул

Название
1

420450180 Gasket 0.5 mm. Included In Gasket Kit

Gasket 0.5 mm. Included In Gasket Kit

2 010 ₽
1

420450181 Gasket 0.6 mm. Included In Gasket Kit

Gasket 0.6 mm. Included In Gasket Kit

2 100 ₽
1

420450182 Gasket 0.7 mm. Included In Gasket Kit

Gasket 0.7 mm. Included In Gasket Kit

2 430 ₽
1

420450183 Gasket 0.8 mm. Included In Gasket Kit

Gasket 0.8 mm. Included In Gasket Kit

2 590 ₽
2

420413350 Cylinder

Cylinder

53 360 ₽
3

420854650 Exhaust Valve

Exhaust Valve

32 970 ₽
4

420950950 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

150 ₽
5

420931542 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

2 620 ₽
6

420854455 Valve Housing

Valve Housing

6 700 ₽
7

205062544 Allen Screw M6 x 25. Tightening Torque 8-10 Nm

Allen Screw M6 x 25. Tightening Torque 8-10 Nm

390 ₽
8

420260729 Bellows

Bellows

12 670 ₽
9

420838255 Hose Spring

Hose Spring

2 610 ₽
10

420854449 Exhaust Valve. Tightening Torque 2-4 Nm

Exhaust Valve. Tightening Torque 2-4 Nm

11 410 ₽
11

420939280 Hose Spring

Hose Spring

850 ₽
12

420239944 Spring

Spring

520 ₽
13

420911559 Valve Cover

Valve Cover

10 400 ₽
14

420430220 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

3 000 ₽
15

420241221 Adjuster Screw. Tighten Until Positive Stop

Adjuster Screw. Tighten Until Positive Stop

1 180 ₽
16

420241270 Hex. Taptite Screw M5 x 25. Tightening Torque 5-6 Nm

Hex. Taptite Screw M5 x 25. Tightening Torque 5-6 Nm

530 ₽
17

420640524 Hex. Collar Screw M10 x 80. Tightening Torque 38-42 Nm

Hex. Collar Screw M10 x 80. Tightening Torque 38-42 Nm

3 820 ₽
18

420640534 Hex. Collar Screw M10 x 120. Tightening Torque 38-42 Nm

Hex. Collar Screw M10 x 120. Tightening Torque 38-42 Nm

4 520 ₽
19

420931590 Rubber Ring. Included In Gasket Kit

Rubber Ring. Included In Gasket Kit

2 480 ₽
20

293300026 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

4 480 ₽
21

420623358 Combustion Chamber Insert

Combustion Chamber Insert

14 070 ₽
22

420430370 O-Ring. Included In Gasket Kit

O-Ring. Included In Gasket Kit

230 ₽
23

420623545 Cylinder Head Cover

Cylinder Head Cover

30 710 ₽
24

420941627 Hex. Screw M8 x 56.5. Tightening Torque 28-30 Nm

Hex. Screw M8 x 56.5. Tightening Torque 28-30 Nm

2 770 ₽
25

420924724 Hose Nipple

Hose Nipple

2 400 ₽
26

420630815 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

4 520 ₽
27

420924791 Reed Valve Ass'y

Reed Valve Ass'y

38 640 ₽
28

420667500 Intake Socket

Intake Socket

10 250 ₽
29

420241270 Hex. Taptite Screw M5 x 25. Tightening Torque 5-6 Nm

Hex. Taptite Screw M5 x 25. Tightening Torque 5-6 Nm

530 ₽
30

420850552 Gasket. Included In Gasket Kit

Gasket. Included In Gasket Kit

1 530 ₽
31

420673460 Exhaust Manifold

Exhaust Manifold

22 170 ₽
32

420889931 Engine Gasket Set

Engine Gasket Set

21 100 ₽
33

420889936 Cylinder Gasket Set

Cylinder Gasket Set

14 680 ₽
