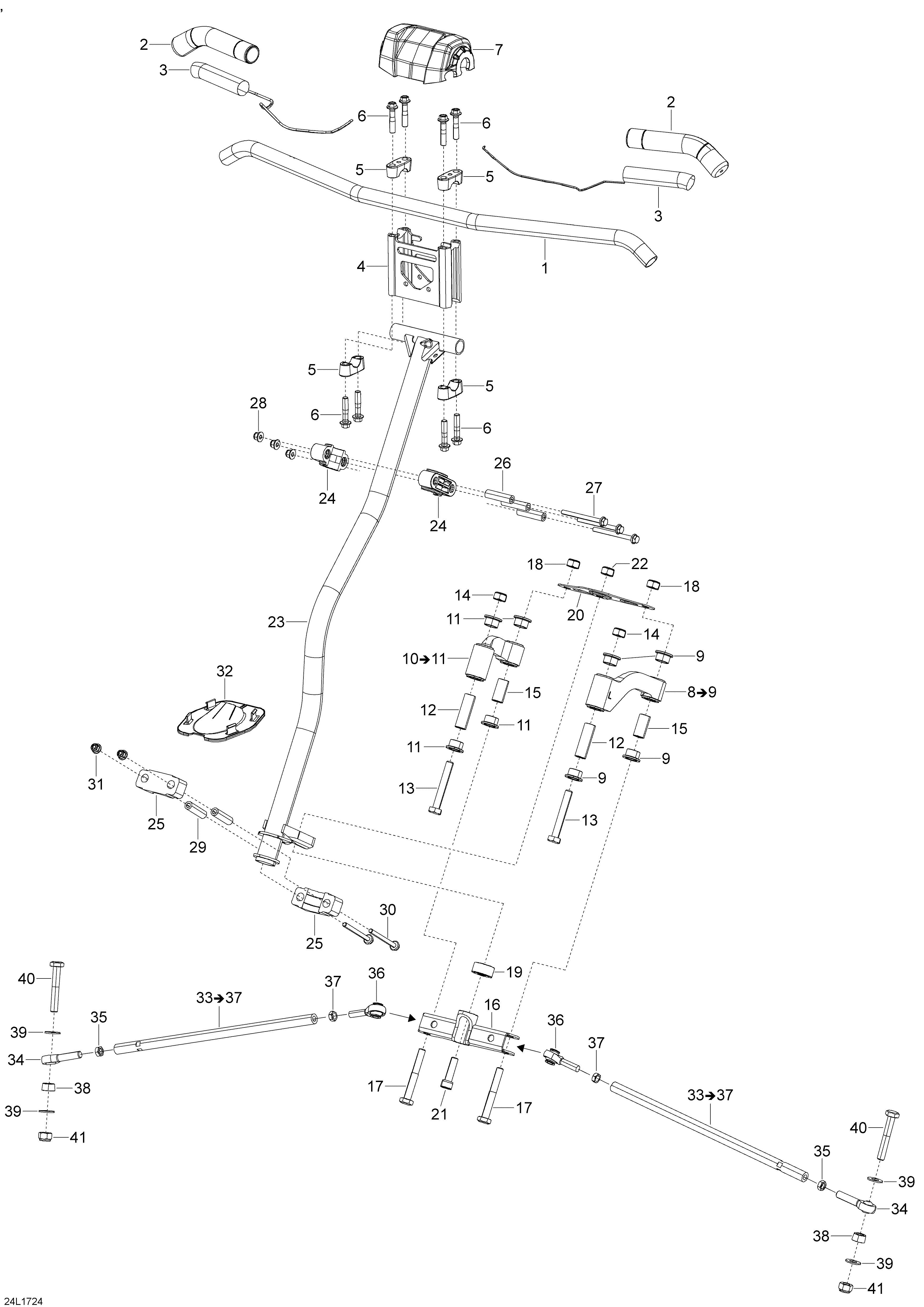

07- Steering System для BRP Lynx Rave RS Racing - 2017
![](/wa-data/public/shop/sheme/bombardier/lynx/4e48179e-7d92-4124-b770-fa5b42cfedae.png)
-
№АртикулНазвание
-
1506152712 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152428 Heated FilmHeated Film
-
4506151753 Extension (115mm)Extension (115mm)
-
5506152751 Steering SupportSteering Support
-
6250000352 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
7506152553 Steering PadSteering Pad
-
8506152719 LH Swivel Arm Ass'y. Includes 8 To 9LH Swivel Arm Ass'y. Includes 8 To 9
-
9505072690 BushingBushing
-
10506152720 RH Swivel Arm Ass'y. Includes 10 To 11RH Swivel Arm Ass'y. Includes 10 To 11
-
11505072690 BushingBushing
-
12506152691 Swivel PivotSwivel Pivot
-
13207007044 Hex. Screw M10 x 70Hex. Screw M10 x 70
-
14232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
15506152696 Swivel PivotSwivel Pivot
-
16506152693 Swivel BarSwivel Bar
-
17207108044 Hex. Screw M10 x 80Hex. Screw M10 x 80
-
18232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
19506152714 BearingBearing
-
20506152697 PlatePlate
-
21205003544 Socket Screw M10 x 35Socket Screw M10 x 35
-
22232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
23506152965 Main TubeMain Tube
-
24506152293 Upper Half-HousingUpper Half-Housing
-
25506152549 Lower Half-HousingLower Half-Housing
-
26506152297 Housing BushingHousing Bushing
-
27207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
28233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
29506152297 Housing BushingHousing Bushing
-
30207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
31233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
32506152163 PlatePlate
-
33506152715 Tie Rod Ass'y. Includes 33 To 37Tie Rod Ass'y. Includes 33 To 37
-
34506152081 LH Ball JointLH Ball Joint
-
35250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
36506152019 RH Ball JointRH Ball Joint
-
37732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
38506152713 WasherWasher
-
39506152582 WasherWasher
-
40207006544 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
41233601466 Elastic Stop Nut M10Elastic Stop Nut M10
