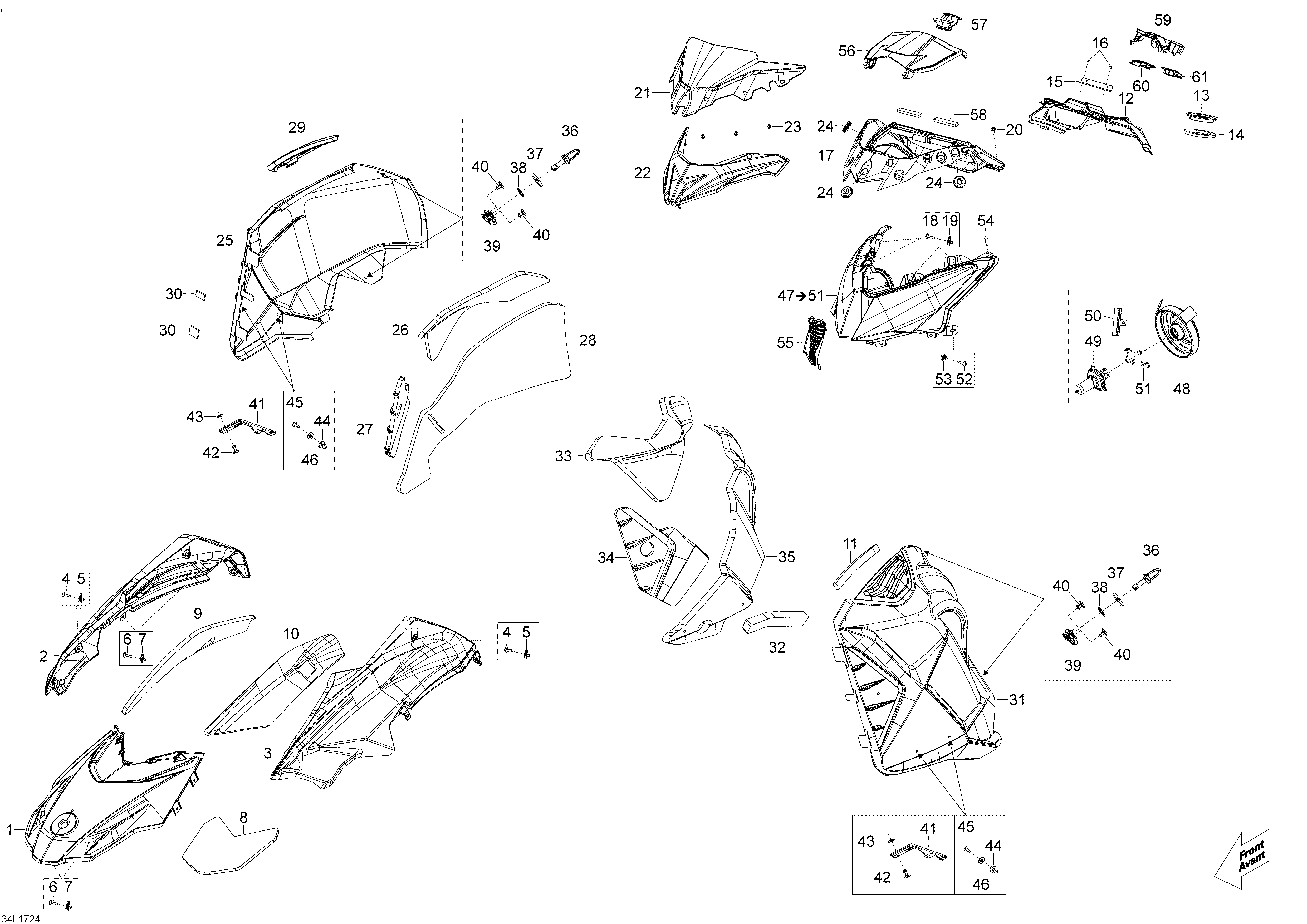

09- Hood And Windshield для BRP Lynx Rave RS Racing - 2017
-
№АртикулНазвание
-
1517305604 Red HoodRed Hood
-
2517305537 Red RH HoodRed RH Hood
-
3517305536 Red LH HoodRed LH Hood
-
4250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
5250000079 Panel Nut M5Panel Nut M5
-
6250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
7250000079 Panel Nut M5Panel Nut M5
-
8517305480 FoamFoam
-
9517305481 FoamFoam
-
10517305482 FoamFoam
-
11517305820 FoamFoam
-
12517305517 Console RearConsole Rear
-
13517304518 Console NutConsole Nut
-
14517305639 Thread Flange SpacerThread Flange Spacer
-
15517305640 Handle PlateHandle Plate
-
1636005 RivetRivet
-
17517305512 Indicator SupportIndicator Support
-
18250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
19250000079 Panel Nut M5Panel Nut M5
-
20250000587 Torx Truss Screw M5 x 26Torx Truss Screw M5 x 26
-
21517304931 Windshield (135)Windshield (135)
-
22517305307 SupportSupport
-
23732610072 Push NutPush Nut
-
24517303756 GrommetGrommet
-
25517306030 RH PanelRH Panel
-
26517305995 FoamFoam
-
27517305997 FoamFoam
-
28517305998 FoamFoam
-
29517305251 GrillGrill
-
30514054987 Heat ShieldHeat Shield
-
31517306031 LH PanelLH Panel
-
32517305821 FoamFoam
-
33517305999 FoamFoam
-
34517305997 FoamFoam
-
35517306000 FoamFoam
-
36513033735 Quarter Turn FastenerQuarter Turn Fastener
-
3720117 WasherWasher
-
38732610072 Push NutPush Nut
-
39513033736 Quarter Turn Fastener PlateQuarter Turn Fastener Plate
-
40293150122 Pop Rivet 1/8''Pop Rivet 1/8''
-
41570027100 Hood LatchHood Latch
-
42293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
43517124300 WasherWasher
-
44517245800 KnobKnob
-
45250000742 Torx Truss Screw M5 x 14Torx Truss Screw M5 x 14
-
46250200025 WasherWasher
-
47517306180 Headlamp. Includes 47 To 51Headlamp. Includes 47 To 51
-
48219400070 CapCap
-
49515176274 H4 Halogen Bulb (60/55W, 12V)H4 Halogen Bulb (60/55W, 12V)
-
50219800282 HolderHolder
-
51219800281 SpringSpring
-
52250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
53250100035 Jack Nut M5Jack Nut M5
-
54250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
55517305350 CapCap
-
56517304912 CoverCover
-
57517304917 LatchLatch
-
58517305157 SealSeal
-
59517304970 SupportSupport
-
60517305147 CapCap
-
61517305148 CapCap
-
62517304186 Air Silencer Support. Not ShownAir Silencer Support. Not Shown
