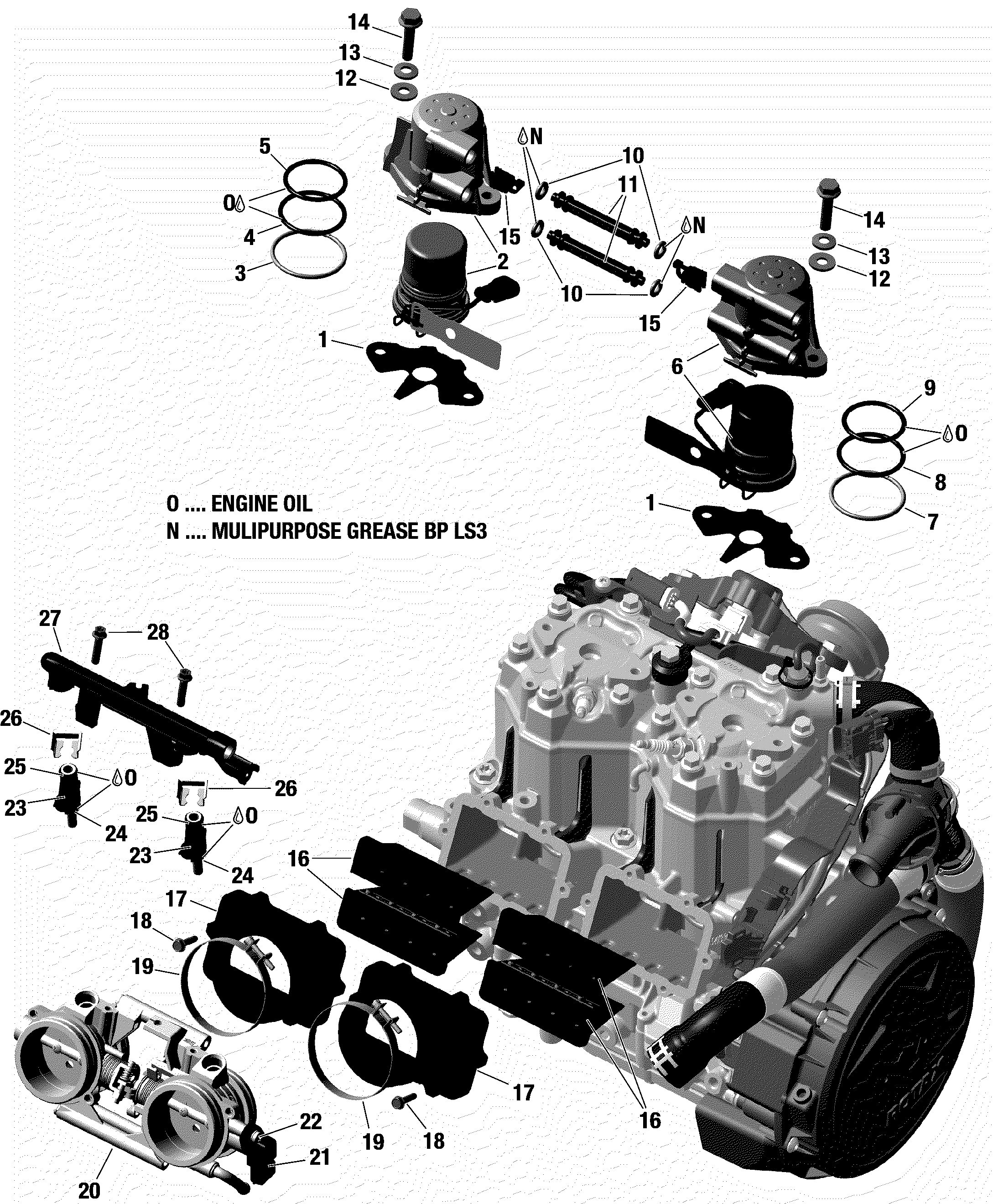

02- EFI для BRP Lynx Boondocker 850 E-TEC - 2018
-
№АртикулНазвание
-
1420430055 GasketGasket
-
2>5420874843 Injector PTOInjector PTO
-
3415129497 Crush RingCrush Ring
-
4415129498 O-RingO-Ring
-
5415129499 O-RingO-Ring
-
6>9420874844 Injector MAGInjector MAG
-
7415129497 Crush RingCrush Ring
-
8415129498 O-RingO-Ring
-
9415129499 O-RingO-Ring
-
10420430775 O-RingO-Ring
-
11420874190 TubeTube
-
12420901550 WasherWasher
-
13420245462 Spring WasherSpring Washer
-
14420840090 Hex Screw M8 x 35Hex Screw M8 x 35
-
15420951785 Tie RapTie Rap
-
16420924798 Reed Valve Ass'yReed Valve Ass'y
-
17420867390 Intake SocketIntake Socket
-
18420841550 Tapping Screw M5 X 22Tapping Screw M5 X 22
-
19420251209 ClampClamp
-
20>22420893802 Throttle BodyThrottle Body
-
21420866680 Throttle Valve Position SensorThrottle Valve Position Sensor
-
23>25420874842 Injection Valve Ass'yInjection Valve Ass'y
-
24420431890 O-RingO-Ring
-
25420631220 O-RingO-Ring
-
26420853030 ClipClip
-
27420874153 Fuel RailFuel Rail
-
28420440234 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
