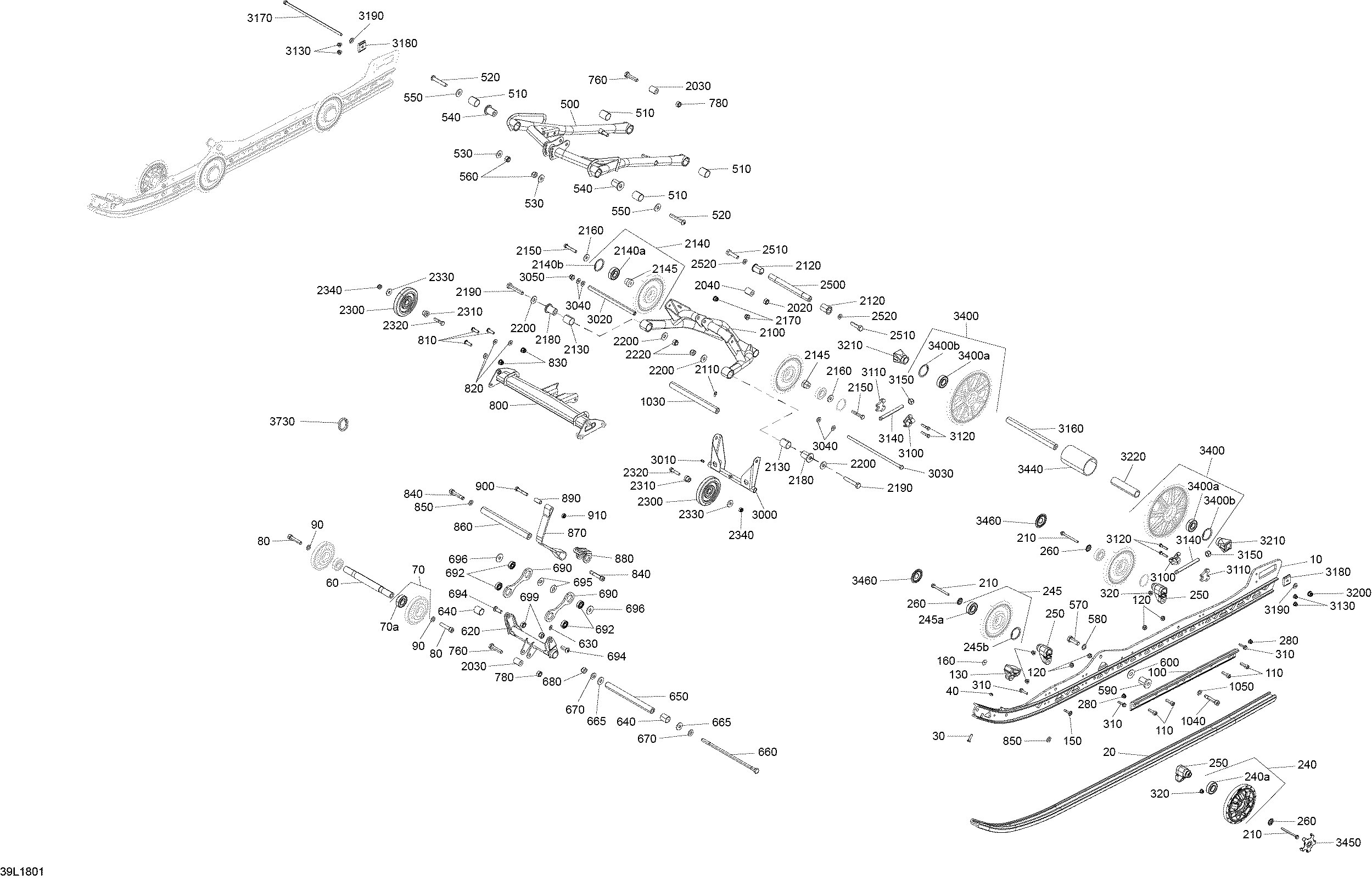

08- Rear Suspension Shocks Boondocker - 850 E-TEC - Package RE для BRP Lynx Boondocker 850 E-TEC - 2018
-
№АртикулНазвание
-
10503194762 Runner Bd3700 Re Pps2Runner Bd3700 Re Pps2
-
20503193170 Slide ShoeSlide Shoe
-
30208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
40232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
60503192842 Front Wheel ShaftFront Wheel Shaft
-
70>70a503192611 Black Wheel Ass'y, 100 mm. Includes 70 to 70aBlack Wheel Ass'y, 100 mm. Includes 70 to 70a
-
70a503190396 Ball BearingBall Bearing
-
80205505054 Screw-socket Hd.din.912 S. GripScrew-socket Hd.din.912 S. Grip
-
90503192496 WasherWasher
-
100503194734 Rail Reinforcement RsRail Reinforcement Rs
-
110205082554 Socket Screw M8 X 25Socket Screw M8 X 25
-
120232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
130503193504 Rubber StopperRubber Stopper
-
150293150224 Rivet Pop 3/16Rivet Pop 3/16
-
160503191273 WasherWasher
-
210207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
240>240a503193734 Wheel-141mm. Includes 240 to 240aWheel-141mm. Includes 240 to 240a
-
240a503190396 Ball BearingBall Bearing
-
245>245b503191316 Black - Wheel Ass'y 141 mm. Includes 245 to 245bBlack - Wheel Ass'y 141 mm. Includes 245 to 245b
-
245a503190396 Ball BearingBall Bearing
-
245b415129371 Retaining RingRetaining Ring
-
250503193894 Casted SupportCasted Support
-
260503191820 Wheel Cup M6Wheel Cup M6
-
280233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
310207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
320233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
500503193561 Front ArmFront Arm
-
510503191554 BushingBushing
-
520503194947 Screw-socket Bn.hd. M10 X 60Screw-socket Bn.hd. M10 X 60
-
530503191926 WasherWasher
-
540503194580 Upper Axle SleeveUpper Axle Sleeve
-
550503191926 WasherWasher
-
560233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
570250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
580503192491 WasherWasher
-
590503194579 Lower Axle SleeveLower Axle Sleeve
-
600503190656 WasherWasher
-
620503194799 Front SwingFront Swing
-
630408200700 Grease FittingGrease Fitting
-
640503193822 BushingBushing
-
650503193893 Lower ShaftLower Shaft
-
660503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
665503191926 WasherWasher
-
670250200138 WasherWasher
-
680233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
690605254159 Connecting RodConnecting Rod
-
692503194696 BearingBearing
-
694205402546 Socket Screw BN.HD.ISO.7380Socket Screw BN.HD.ISO.7380
-
69525004 Cup Spring 28x10.2x1.25 (1=10pcs)Cup Spring 28x10.2x1.25 (1=10pcs)
-
696234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
699232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
760207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
780232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
800503193623 Middle BeamMiddle Beam
-
810250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
820503192494 WasherWasher
-
830233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
840205505054 Screw-socket Hd.din.912 S. GripScrew-socket Hd.din.912 S. Grip
-
850503192496 WasherWasher
-
860503195015 Limiter Strap ShaftLimiter Strap Shaft
-
870605355116 Limiter StrapLimiter Strap
-
880503194867 Holder, Limiter StrapHolder, Limiter Strap
-
890605455335 SleeveSleeve
-
900207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
910232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
10305343471 ShaftShaft
-
1040205505054 Screw-socket Hd.din.912 S. GripScrew-socket Hd.din.912 S. Grip
-
1050503192496 WasherWasher
-
2020232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
20305446652 BushingBushing
-
20405446652 BushingBushing
-
2100503193571 Rear Arm WeldRear Arm Weld
-
2110408200700 Grease FittingGrease Fitting
-
2120503191640 CushionCushion
-
2130503191554 BushingBushing
-
2140>2140b503193852 Idler Wheel O140mm,6004. Includes 2140 to 2140bIdler Wheel O140mm,6004. Includes 2140 to 2140b
-
2140a503190396 Ball BearingBall Bearing
-
2140b415129371 Retaining RingRetaining Ring
-
2145605454461 SleeveSleeve
-
2150207084544 Hex. Screw M8 X 45Hex. Screw M8 X 45
-
216020077 M8 Fender Wshr Din-9021b ZincM8 Fender Wshr Din-9021b Zinc
-
2170233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
2180503194580 Upper Axle SleeveUpper Axle Sleeve
-
2190250000696 Screw-hex.cap Din 931Screw-hex.cap Din 931
-
2200503191926 WasherWasher
-
2220233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
2300572043500 Idler WheelIdler Wheel
-
2310503193330 SleeveSleeve
-
2320207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
233020077 M8 Fender Wshr Din-9021b ZincM8 Fender Wshr Din-9021b Zinc
-
2340232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
2500503193638 Axe Inferieur *shaft-lowerAxe Inferieur *shaft-lower
-
2510207204044 Screw-hex.cap Din.931 S.gripScrew-hex.cap Din.931 S.grip
-
2520503192496 WasherWasher
-
3000503194342 Rear SwingRear Swing
-
3010408200700 Grease FittingGrease Fitting
-
3020503189156 Pivot Arm AxlePivot Arm Axle
-
3030503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
3040503192494 WasherWasher
-
3050233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3100503192814 TensionerTensioner
-
3110503193250 SpacerSpacer
-
3120207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
3130233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
3140230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
3150233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
3160503194105 Rear ShaftRear Shaft
-
3170503194069 Bolt M8, 10.9Bolt M8, 10.9
-
3180503194067 Slidder AxleSlidder Axle
-
3190250200159 Washer-Spring Conical M8Washer-Spring Conical M8
-
3200233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
3210503190428 Rear Wheel SpacerRear Wheel Spacer
-
3220503191263 Rear SpacerRear Spacer
-
3400>3400b503194880 Wheel 200. Includes 3400 to 3400bWheel 200. Includes 3400 to 3400b
-
3400a503190396 Ball BearingBall Bearing
-
3400b415129371 Retaining RingRetaining Ring
-
3440503193097 BushingBushing
-
3450503194950 Wheel Cap, BlackWheel Cap, Black
-
3460503192771 Black - Wheel CapBlack - Wheel Cap
-
3710414115200 Tie-Rap 180 mmTie-Rap 180 mm
