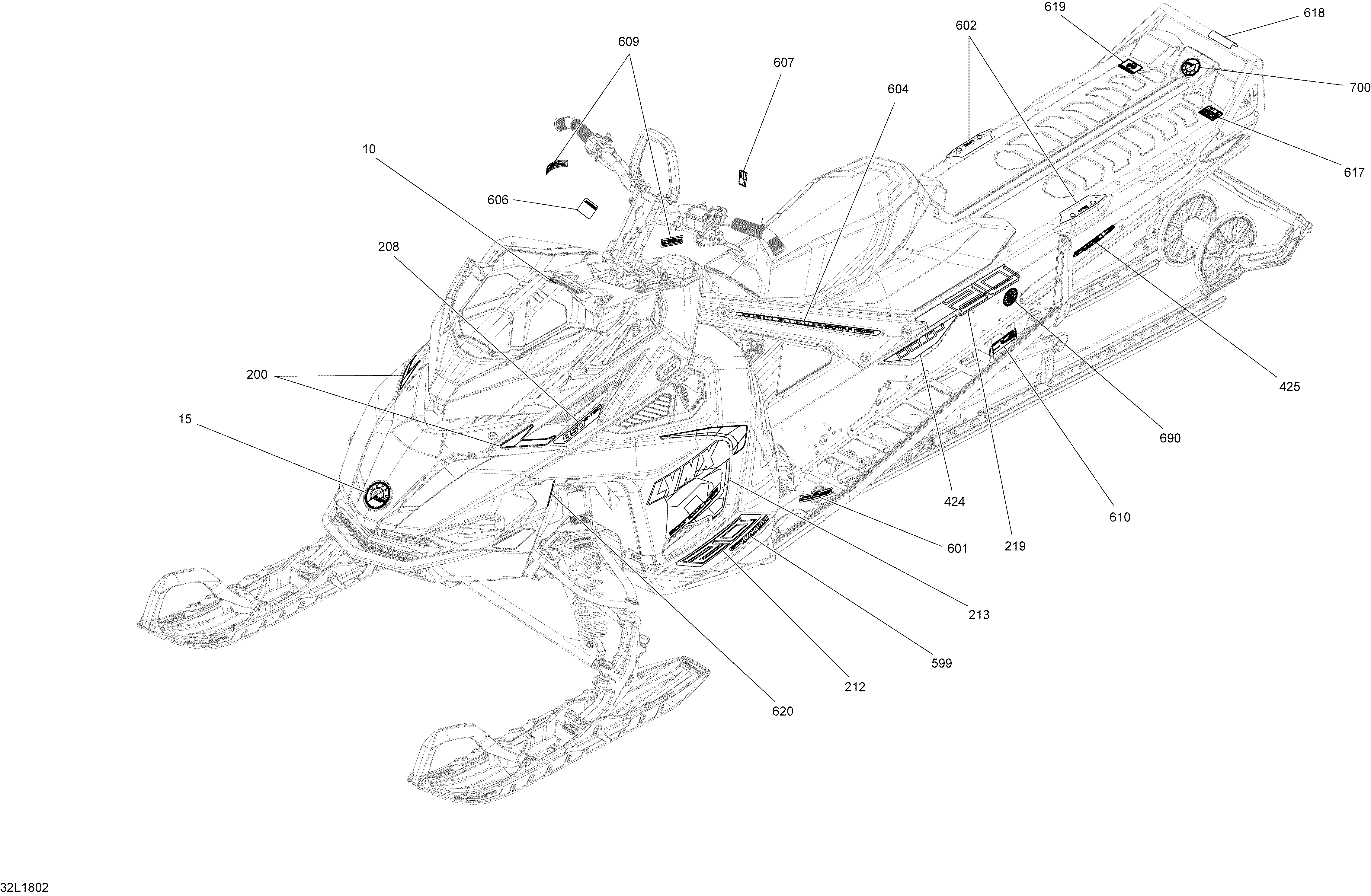

09- Decals Boondocker - 850 E-TEC - Package BD3900 DS для BRP Lynx Boondocker 850 E-TEC - 2018
-
№АртикулНазвание
-
10516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
15516006888 BRP Logo, 68 mmBRP Logo, 68 mm
-
200516008467 Decal, Upper Sidepanel, Lh/rhDecal, Upper Sidepanel, Lh/rh
-
208516008469 Decal,upper Sidep. Lh/rh,850 E-tecDecal,upper Sidep. Lh/rh,850 E-tec
-
212516008475 Decal, Sidepanel Lh/re Low, Bd DsDecal, Sidepanel Lh/re Low, Bd Ds
-
213516008478 Decal, Sidepanel Lh/re UpDecal, Sidepanel Lh/re Up
-
219516008462 Decal, Tunnel, Ds, Lh/rhDecal, Tunnel, Ds, Lh/rh
-
424516008463 Decal, Tunnel, Bd Ds 3900Decal, Tunnel, Bd Ds 3900
-
425516008563 Decal, Radien Ds Tunnel System, Lh/Decal, Radien Ds Tunnel System, Lh/
-
599516006331 Rotax Power DecalRotax Power Decal
-
601516006805 Pps2-decal, BlackPps2-decal, Black
-
602516008481 Decal, Q-link, Lh/rhDecal, Q-link, Lh/rh
-
604516008460 Decal, Radien Platform, Lh/rhDecal, Radien Platform, Lh/rh
-
6065447012 Oil Checking LabelOil Checking Label
-
607516003919 Warning DecalWarning Decal
-
609516006903 Hot Parts DecalHot Parts Decal
-
610516008482 Decal, Track TensionDecal, Track Tension
-
617516008483 Safety LabelSafety Label
-
618516008602 Warning Decal, Don't LiftWarning Decal, Don't Lift
-
619516007584 Warning DecalWarning Decal
-
620516008727 Instruction Decal, Close LatchInstruction Decal, Close Latch
-
690516008521 50th Anniversary Logo, 48 Mm50th Anniversary Logo, 48 Mm
-
700516006887 BRP Logo, 48 mmBRP Logo, 48 mm
