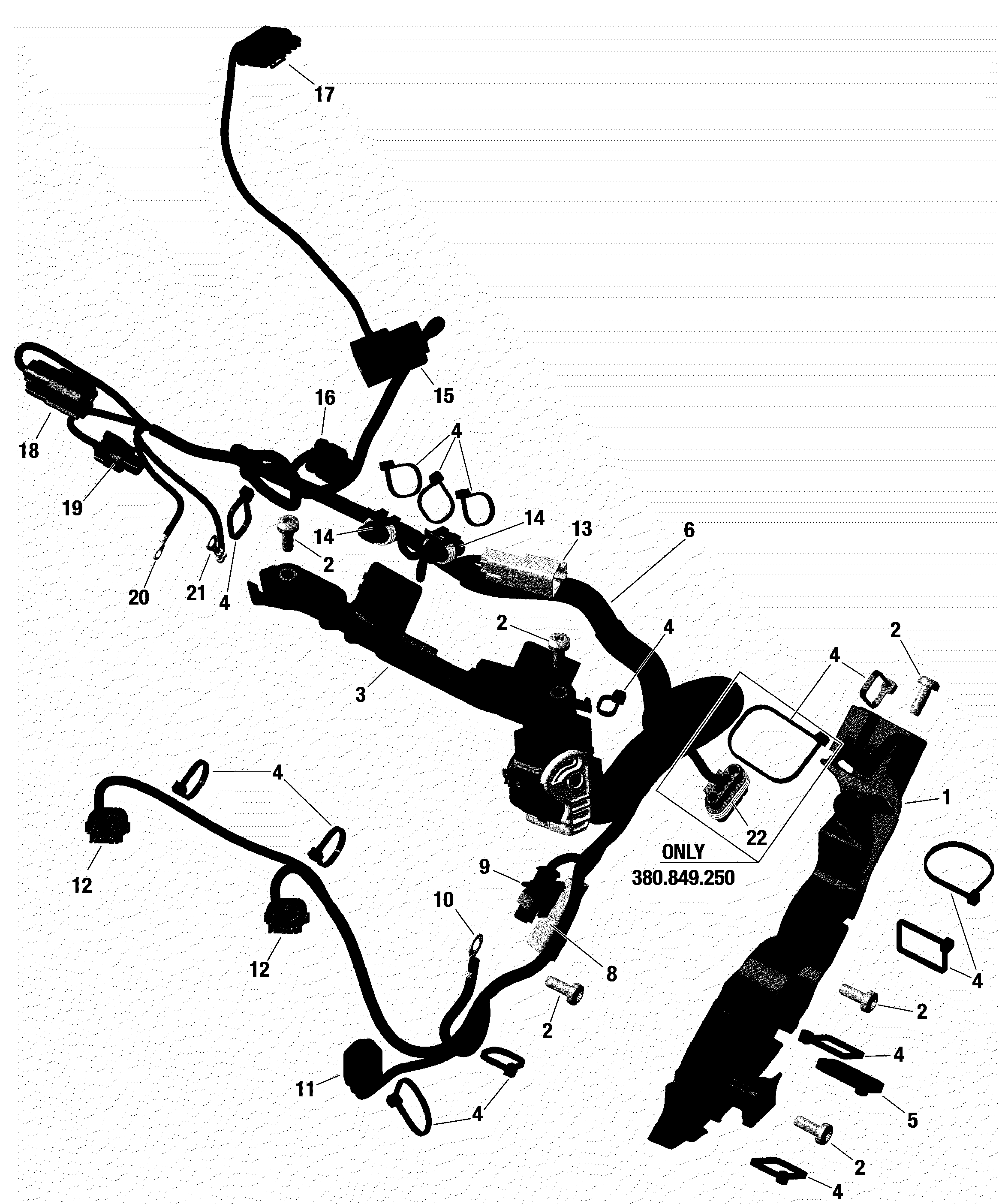

10- Engine Harness для BRP Lynx Boondocker 850 E-TEC - 2018
-
№АртикулНазвание
-
1420260154 Harness SupportHarness Support
-
2420640324 Torx Screw M6 X 16Torx Screw M6 X 16
-
3420260158 Harness SupportHarness Support
-
5420651397 Tie RapTie Rap
-
6420951341 Tie Rap With MountTie Rap With Mount
-
7>22420864442 Engine Harness. Except SHOT EngineEngine Harness. Except SHOT Engine
-
7>23420864445 Engine Harness. Shot EngineEngine Harness. Shot Engine
-
9409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
10278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
12710000057 Female Terminal YasakiFemale Terminal Yasaki
-
12415130195 ConnectorConnector
-
12710000058 Wire Seal YasakiWire Seal Yasaki
-
13515176129 Female HousingFemale Housing
-
13710002063 TerminalTerminal
-
13415130196 SealSeal
-
14409206900 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
15409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
16515178202 Connector CoilConnector Coil
-
20515177192 Female HousingFemale Housing
-
22515175504 Ring TerminalRing Terminal
-
23409209700 Female Housing, 4 Circuits. Shot EngineFemale Housing, 4 Circuits. Shot Engine
